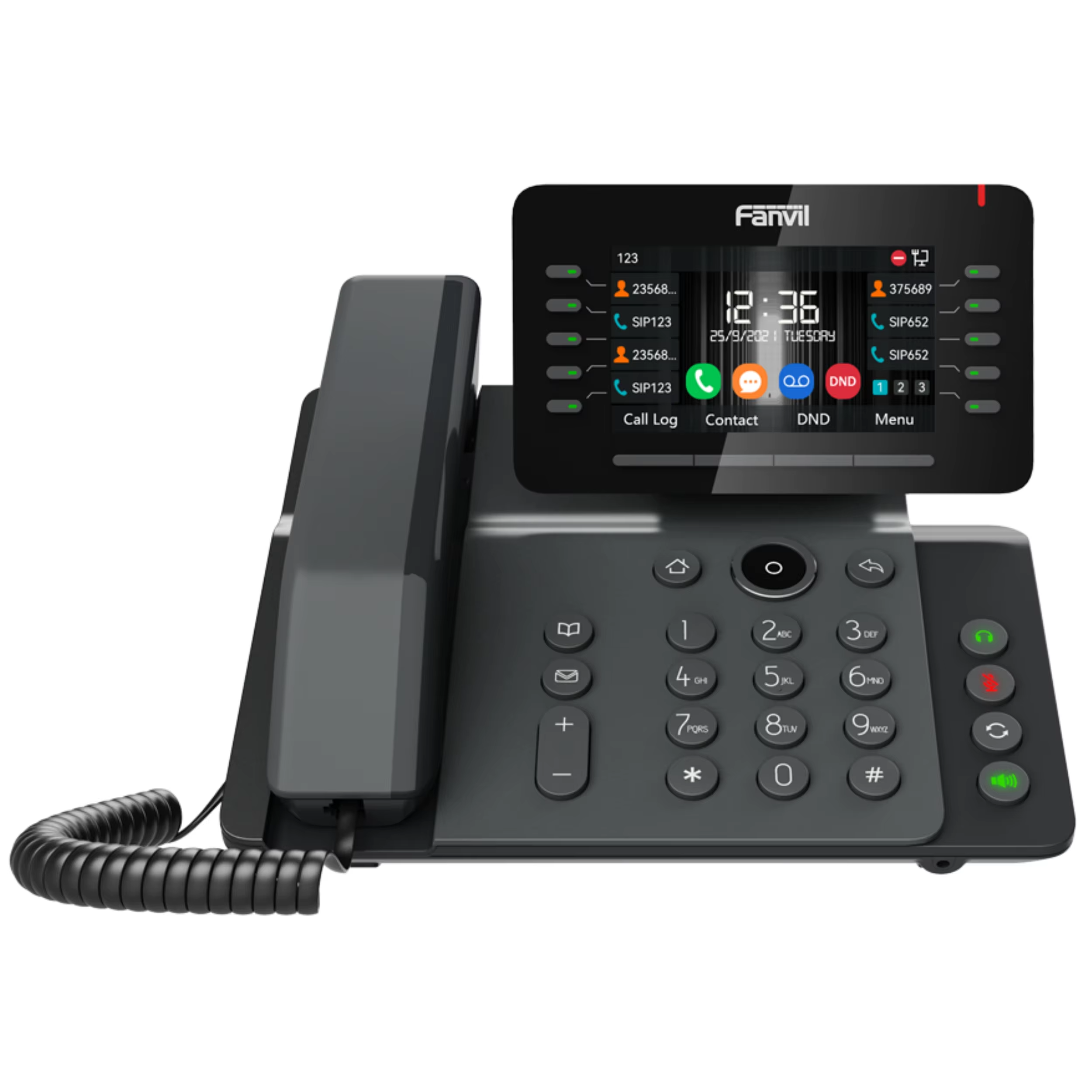

Fanvil V65 Prime Business IP Phone

The Fanvil V65 Prime Business IP Phone is a premium executive-class communication device designed for managers and business professionals. Featuring a 4.3-inch adjustable IPS color display, support for up to 20 SIP lines, and a unique antibacterial surface that inhibits over 99.5% of bacterial growth, the V65 combines advanced audio and video capabilities with enterprise-grade security. Ideal for corporate offices, meeting rooms, and executive desks, it integrates seamlessly with VoIP platforms while offering extensive programmability and connectivity options.

Product Features

Adjustable Color Display

The 4.3-inch IPS screen can tilt from 0° to 40°, reducing glare and providing a clear interface for call management and system settings.

Antibacterial Surface

The handset and keypad are treated with an antibacterial coating to inhibit over 99.5% of bacterial growth, promoting hygiene in shared office environments.

Multi-Line & Programmable Keys

Supports up to 20 SIP lines and offers 45 DSS (Direct Station Selection) keys across 5 pages, allowing for speed dials, BLF (Busy Lamp Field), and quick access to frequently used features.

Advanced Audio

Delivers HD voice quality with wideband codecs like Opus and G.722, along with full-duplex acoustic echo cancellation, voice activity detection, comfort noise generation, and background noise estimation.

Video Integration

Supports H.264 video decoding from external cameras and door phones at VGA, 720p, and 1080p resolutions, enabling monitoring and communication without requiring an onboard camera.

Connectivity Options

• Wi-Fi: Built-in dual-band (2.4GHz/5GHz) for wireless network connectivity
• Bluetooth 4.2: Connect wireless headsets or mobile devices
• Dual Gigabit Ethernet: Network and PC pass-through ports
• USB 2.0 Port: Supports flash drives or USB headsets
• Power over Ethernet (PoE): IEEE 802.3af Class 3 for simplified installation

Security & Network

Supports enterprise-grade security protocols including SIP over TLS, SRTP encryption, IPv4/IPv6 dual-stack networking, OpenVPN/L2TP VPN, DHCP, LLDP, and Wi-Fi security with WPA/WPA2-PSK and 802.1X EAP.

Management & Provisioning

Includes a local phonebook (2,000 entries), remote XML/LDAP phonebook support, and call logs for up to 1,000 calls. Auto-provisioning is supported via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, PnP, and TR-069 for large-scale deployments.

Platform Compatibility

Fully certified for interoperability with leading PBX and VoIP platforms, including 3CX, Asterisk, Broadsoft, Avaya, PortSIP, and NetSapiens.

Product Specifications

• Display: 4.3-inch IPS color screen (480×272), adjustable tilt 0°–40°
• SIP Lines: Supports up to 20 concurrent lines
• Programmable Keys: 45 DSS keys (9 physical × 5 pages) for BLF, speed dial, multicast
• Audio Codecs: Wideband: G.722, Opus; Narrowband: G.711, G.723.1, G.726, G.729A/B, iLBC
• Audio Features: Full-duplex AEC, VAD, CNG, BNE
• Video Decoding: H.264 up to 1080p (receiving only)
• Hardware Keys: 41 physical keys including 10 line keys with LED indicators, 6 dedicated function keys, and 5-way navigation cluster
• Ports: 2x RJ45 Gigabit Ethernet, 2x RJ9 (handset/headset), 1x USB 2.0, security lock slot
• Connectivity: Wi-Fi dual-band 2.4/5GHz, Bluetooth 4.2, USB 2.0
• Power Consumption: PoE 2.09–8.25W; DC adapter 1.36–6.45W (5V/2A optional)
• Phonebook & Logs: 2,000 local entries, 2,000 remote entries, 1,000 call logs
• Provisioning & Deployment: FTP/TFTP/HTTP/HTTPS, DHCP Option 66, PnP, TR-069
• Security Protocols: SIP over TLS, SRTP, OpenVPN, L2TP, 802.1X, WPA/WPA2-PSK
• Installation: Desktop with dual-angle stand, wall-mountable
