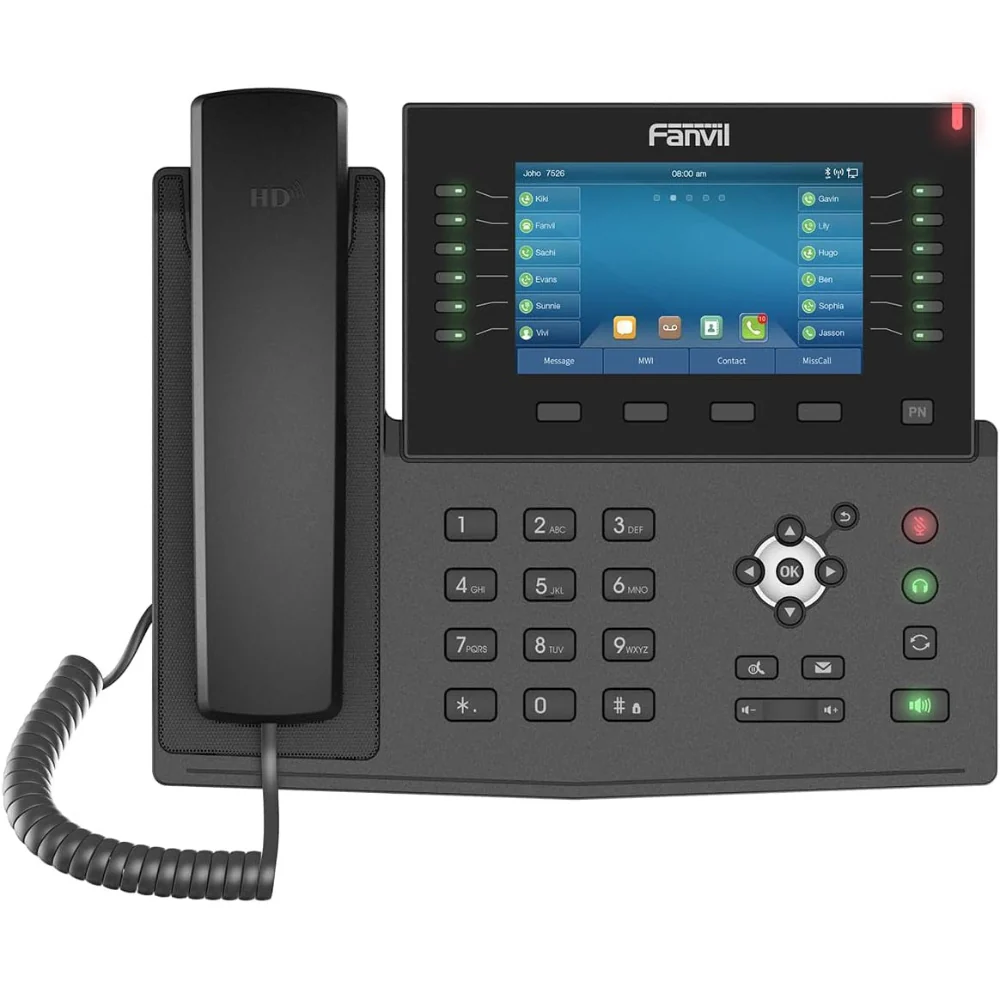

Fanvil X7C Enterprise IP Phone
The Fanvil X7C Enterprise IP Phone is a high-performance business communication device designed for professionals who require immediate access to critical information and efficient call management. Featuring a large 5-inch high-resolution color display, support for up to 20 SIP lines, and extensive programmable keys, the X7C balances visual clarity with tactile reliability. Its advanced audio, connectivity, and security features make it ideal for high-volume call environments, including corporate offices and call centers, while ensuring seamless integration with major VoIP platforms.
Product Features
Large High-Resolution Display
Equipped with a 5-inch color LCD (800×480), the Fanvil X7C provides a clear and intuitive interface for managing calls, monitoring extensions, and accessing system features efficiently.
Multi-Line Support
Supports up to 20 SIP lines, allowing professionals to handle multiple concurrent calls with ease. This capability is perfect for busy office environments where call management is critical.
Programmable DSS Keys
Includes 12 physical DSS keys with tri-color LEDs, expandable to 60 via 5 pages, for speed dial, BLF (Busy Lamp Field) status, and quick access to frequently used functions.
HD Audio Quality
Delivers crystal-clear communication on both the handset and speakerphone. Supports wideband codecs including Opus and G.722 for high-quality audio even under challenging network conditions.
Advanced Connectivity
- Bluetooth: Built-in Bluetooth 4.2 for wireless headset pairing
- Wi-Fi Ready: Supports optional USB Wi-Fi dongle for flexible network access
- Dual Gigabit Ethernet: High-speed pass-through to PC for uninterrupted network connectivity
- Power over Ethernet (PoE): IEEE 802.3af Class 3 for simplified installation and reduced cable clutter
Video & Conferencing Support
Supports H.264 video decoding for integration with video door phones and IP cameras. Offers up to 6-way local audio conferencing (V2) to facilitate multi-party discussions.
Security & Enterprise Management
Implements enterprise-grade security, including SIP over TLS, SRTP encryption, 802.1x network access control, and VPN support (L2TP/OpenVPN). Auto-provisioning features via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, and TR-069 enable zero-touch deployment.
USB Functionality
The USB 2.0 port supports multiple applications, including Wi-Fi dongles, local call recording on a flash drive, and mobile device charging, adding extra versatility to the phone.
Product Specifications
- Audio Codecs: Wideband: G.722, Opus, AMR-WB; Narrowband: G.711a/u, G.723.1, G.726, G.729AB, iLBC
- Video Decoding: H.264 with 1080p reception for IP cameras and video door phones
- Phonebook: 2,000 local entries; XML/LDAP remote support
- Call Logs: 1,000 entries (In/Out/Missed)
- Conferencing: V1: 3-way audio; V2: 6-way local audio conferencing
- Bluetooth: V1: 2.1; V2: 4.2 for wireless headsets
- Power Consumption: PoE 2.6W–9W (Class 3); DC Adapter 5V/2A (2.4W–8W)
- Physical Design: 43 physical keys; dual-angle stand (40° and 50°); wall-mountable
- Security Protocols: SIP over TLS, SRTP, AES encryption, 802.1x network access control
- Networking: IPv4/IPv6 ready with QoS for voice traffic prioritization
- Provisioning & Deployment: FTP/TFTP/HTTP/HTTPS, DHCP Option 66, TR-069
- Platform Compatibility: 3CX, Asterisk, Broadsoft, Metaswitch, Yeastar, Avaya, PortSIP
