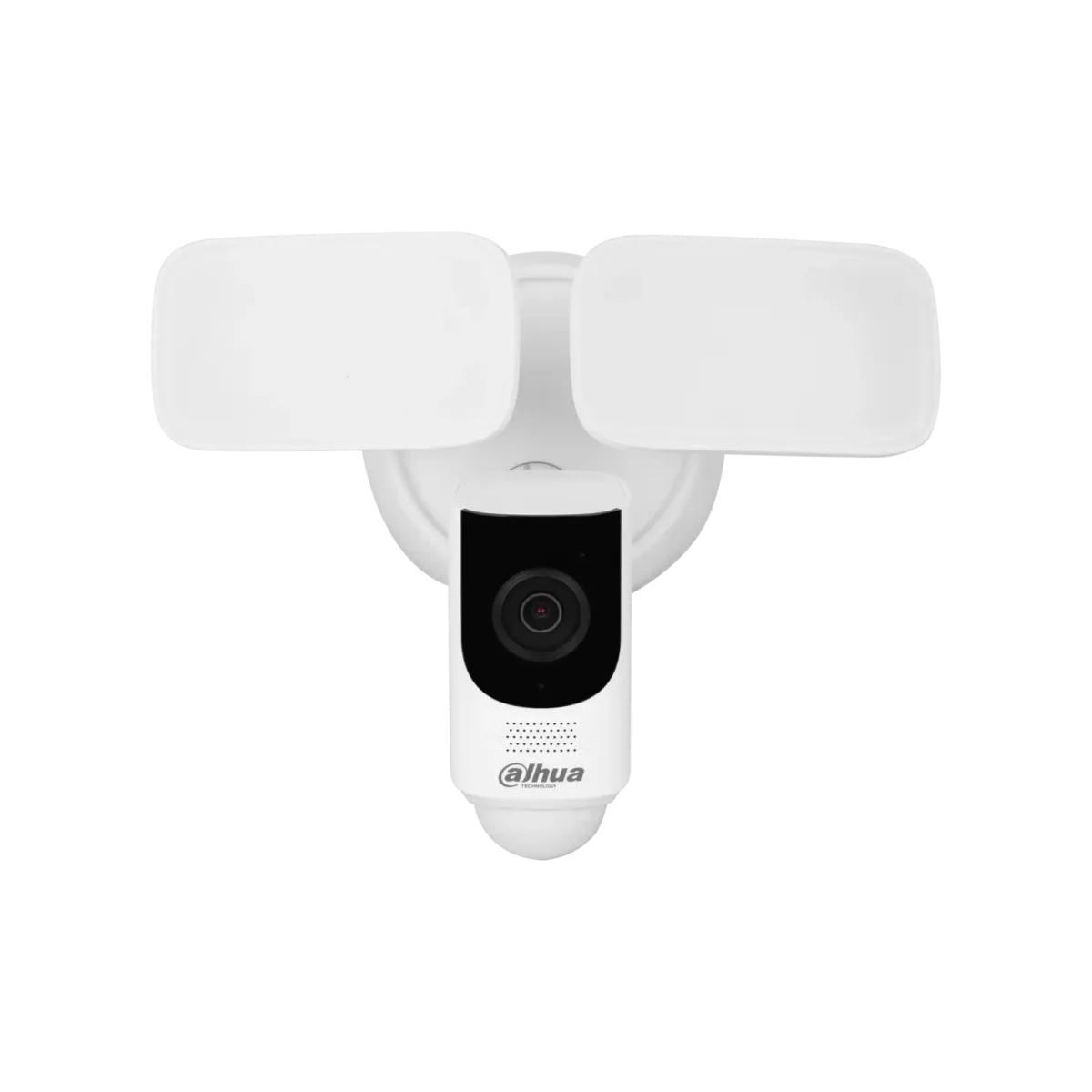

Dahua Floodlight 4MP Fixed-Focal Floodlight Network Camera (DH-IPC-WL46A)

The Dahua DH-IPC-WL46A is a 4MP floodlight network camera designed to combine high-definition surveillance, intelligent motion detection, and powerful illumination in a single security device. Built for residential and commercial outdoor protection, it delivers clear 2K video quality with advanced AI detection for humans, vehicles, and animals. With integrated dual floodlights, siren alarm, and two-way audio communication, this camera acts as both a monitoring solution and an active deterrence system, making it ideal for entrances, driveways, compounds, and perimeter security.

Product Features

High-Definition 4MP Smart Surveillance Imaging

The camera features a 1/3″ CMOS sensor that delivers up to 2560 × 1440 resolution, ensuring sharp and detailed video capture for reliable identification of people, vehicles, and activities in real time.

Integrated Floodlight Security Illumination

Equipped with dual floodlights and an IR LED, the system provides strong visibility up to 30 meters. The floodlights support warm and cool color temperature switching, improving scene clarity and enhancing nighttime surveillance performance.

AI Human, Vehicle, and Animal Detection

Built-in smart detection algorithms distinguish between humans, vehicles, and animals to reduce false alarms. This ensures more accurate alerts and improves overall security efficiency.

Active Deterrence with 110 dB Siren

The camera includes a powerful built-in siren that reaches up to 110 dB, designed to immediately deter intruders when suspicious activity is detected, enhancing proactive security response.

Two-Way Audio Communication

With an integrated microphone and speaker, the device supports real-time communication. Users can listen, speak, and interact remotely through connected mobile or monitoring applications.

Flexible Wireless Connectivity

Supporting dual-band Wi-Fi (2.4 GHz and 5 GHz), the camera ensures stable and flexible installation without the need for extensive cabling, making it ideal for modern smart home setups.

PIR Motion Detection for Accurate Triggering

A built-in PIR sensor enhances motion accuracy by detecting heat signatures, reducing false alarms caused by environmental movement such as wind or lighting changes.

Rugged IP65 Weather Protection

Designed for outdoor environments, the camera features an IP65-rated housing that protects against dust and rain, ensuring stable operation in varying weather conditions.

Product Specifications

• Model: DH-IPC-WL46A
• Image Sensor: 1/3″ CMOS
• Maximum Resolution: 2560 × 1440 (4MP)
• Lens Type: Fixed focal
• Focal Length: 2.8 mm
• Aperture: F1.6
• Field of View: H 98°, V 55°, D 115°
• Minimum Illumination: 0.005 lux (color), 0.0005 lux (B/W)
• IR Illumination Distance: Up to 10 m
• Floodlight Illumination Distance: Up to 30 m
• Floodlight Brightness: 1500–2400 lumens
• Color Temperature: 3000K (warm), 6000K (cool)
• Video Compression: H.265, H.264, Smart H.265+, Smart H.264+
• Frame Rate: Up to 25/30 fps at 4MP
• Audio: Built-in microphone and speaker
• Alarm System: 110 dB siren
• AI Detection: Human, vehicle, and animal detection (SMD)
• PIR Detection Range: Up to 10 m, 270° coverage
• Wi-Fi: Dual-band 2.4 GHz / 5 GHz (802.11 a/b/g/n/ac)
• Storage Support: Micro SD card up to 256 GB, FTP, SFTP, NAS
• Network Protocols: IPv4/IPv6, HTTP, HTTPS, RTSP, DNS, NTP, P2P, ONVIF
• Power Supply: 100–240 VAC
• Power Consumption: 5.2 W (basic), up to 48.3 W (max)
• Protection Rating: IP65 weather resistant
• Operating Temperature: –20 °C to +50 °C
• Housing Material: Metal and plastic
• Dimensions: 270.7 × 217.2 × 195.6 mm
• Weight: 1.40 kg (net)
