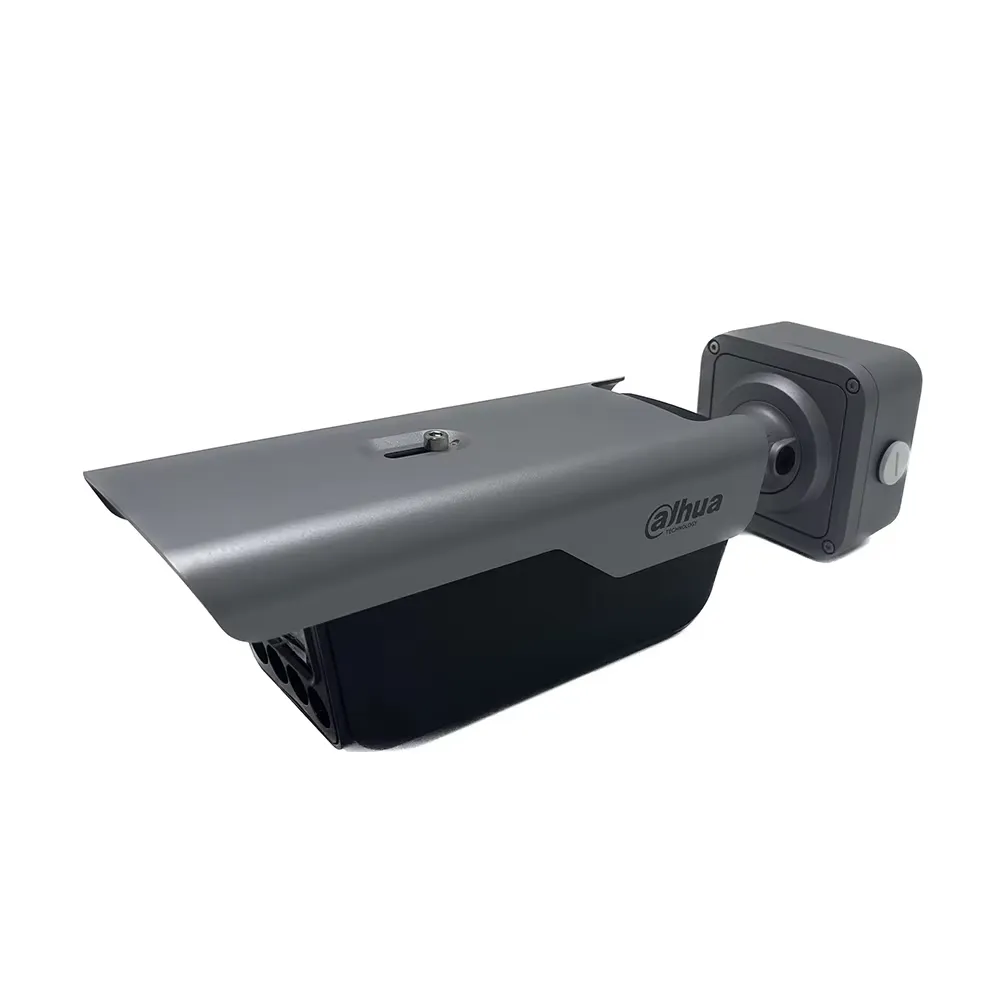

Dahua 4MP Smart Access ANPR Camera (DHI-ITC413-PW4D-Z1)

The Dahua DHI-ITC413-PW4D-Z1 is a high-precision 4MP Smart Access ANPR (Automatic Number Plate Recognition) camera designed for intelligent vehicle identification and automated access control systems. Built for parking facilities, gated communities, and traffic management environments, it combines advanced deep-learning recognition with high-quality imaging to capture license plates, vehicle attributes, and movement data in real time. With integrated barrier control, robust weatherproof construction, and high-speed recognition capabilities, it delivers a complete smart access solution for modern security infrastructure.

Product Features

High-Precision 4MP ANPR Imaging

The camera is equipped with a 1/1.8″ CMOS sensor delivering up to 2688 × 1520 resolution. This ensures sharp, detailed imaging for accurate license plate capture under both daytime and nighttime conditions.

Motorized Varifocal Lens for Flexible Installation

Featuring a 2.7 mm–12 mm motorized varifocal lens, the camera allows remote adjustment of focal length and field of view. This flexibility simplifies installation across different entry and exit lane configurations.

Advanced Deep Learning Vehicle Recognition

Powered by AI-based algorithms, the system accurately identifies license plates, vehicle types, colors, and brands. It supports real-time recognition with high accuracy, making it ideal for automated access control and traffic monitoring.

Dual-Light Illumination for Night Performance

The integrated IR and warm LED lighting system ensures reliable plate capture in low-light and nighttime conditions. IR illumination reaches up to 25 meters, while warm light enhances color visibility up to 20 meters.

High-Speed Vehicle Detection Capability

Designed for dynamic environments, the camera supports vehicle detection at speeds of up to 80 km/h. This makes it suitable for fast-moving traffic lanes and busy access points.

Integrated Access Control and Barrier Integration

With built-in relay outputs and external control interfaces, the camera can directly trigger gates and barriers based on license plate recognition results, enabling fully automated entry and exit systems.

Multi-Attribute Vehicle Analytics

The system identifies detailed vehicle information including type, color, brand, and direction. This enhances monitoring accuracy and provides valuable data for security and traffic analysis.

Rugged IP67 and IK10 Protection Design

Built with a durable aluminum alloy housing, the camera is IP67 weatherproof and IK10 vandal-resistant. It also includes lightning protection, making it suitable for harsh outdoor environments and high-risk installations.

Product Specifications

• Model: DHI-ITC413-PW4D-Z1
• Image Sensor: 1/1.8″ 4MP Progressive Scan CMOS
• Maximum Resolution: 2688 × 1520 (4MP)
• Lens Type: Motorized varifocal
• Focal Length: 2.7 mm – 12 mm
• Field of View: 92°–46.1° (horizontal), 49°–26° (vertical)
• Aperture: F1.4
• Minimum Illumination: 0.001 lux (color), 0.0002 lux (B/W)
• WDR: 140 dB
• Illumination: IR up to 25 m, warm light up to 20 m
• Vehicle Speed Detection: Up to 80 km/h
• Recognition Accuracy: ≥ 98% (optimal conditions)
• Storage: Built-in 64GB eMMC, MicroSD support up to 256GB
• Video Compression: H.265 / H.264
• AI Features: License plate recognition, vehicle type/color/brand detection
• Access Control: 2 relay outputs for gate/barrier integration
• Audio: Built-in microphone and speaker (voice prompts supported)
• Alarm I/O: 2 inputs, 2 outputs
• Network Interface: RJ-45 (10/100 Base-T)
• Protocol Support: IPv4/IPv6, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, NTP, P2P, ONVIF
• Power Supply: 12V DC or PoE+ (802.3at)
• Power Consumption: < 20W
• Protection Rating: IP67 weatherproof, IK10 vandal resistant
• Lightning Protection: 6 kV
• Housing Material: Aluminum alloy
• Operating Temperature: –40 °C to +60 °C
