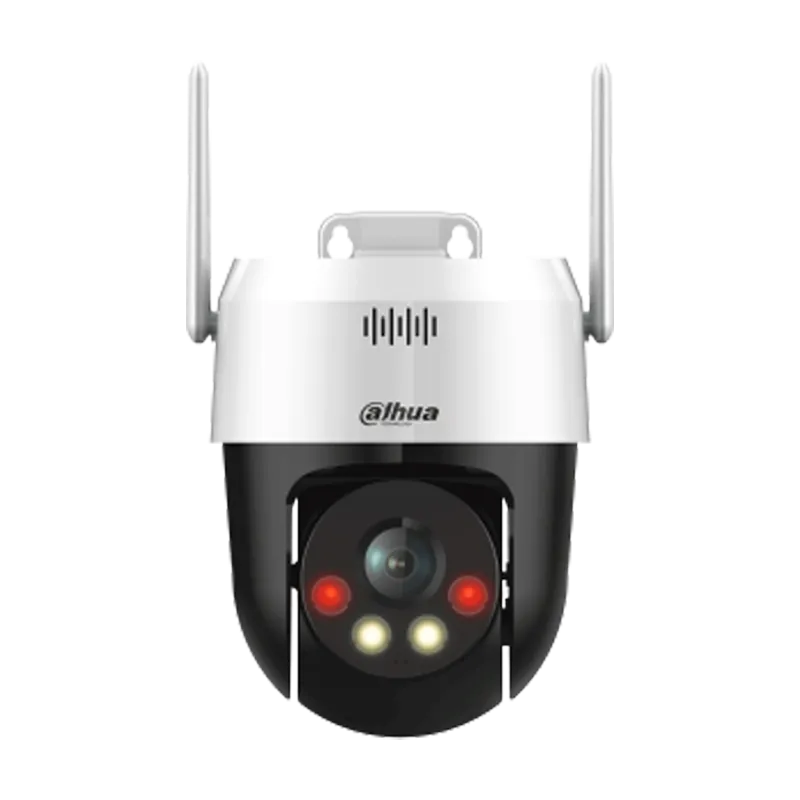

Dahua Picoo A2 3MP Wireless Network PT Camera (DH-P3AE-PV)

The Dahua Picoo A2 DH-P3AE-PV is a powerful 3MP wireless pan and tilt network camera designed for intelligent outdoor surveillance and active deterrence. Built to withstand harsh environments, it combines high-definition video, wide coverage, and smart AI features to deliver reliable security. With dual-light night vision, auto tracking, and real-time alerts, this camera not only monitors but actively helps prevent intrusions, making it ideal for homes, offices, and commercial properties.

Product Features

3MP high-definition video clarity

Capture clear and detailed footage with 3MP resolution, ensuring reliable identification and monitoring of outdoor environments.

Wide pan and tilt coverage

Monitor large areas with a pan range of 0 to 345 degrees and tilt range of 0 to 80 degrees, providing near 360-degree surveillance.

Smart dual-light night vision

Equipped with infrared and warm light LEDs, the camera delivers clear full-color video at night with an illumination distance of up to 30 meters.

Active deterrence with light and sound alarms

Automatically triggers a white strobe light and sound alarm when an intrusion is detected, helping to deter unwanted visitors in real time.

AI human and vehicle detection

Advanced AI algorithms accurately identify humans and vehicles, reducing false alarms caused by irrelevant motion.

Intelligent auto tracking

Automatically tracks moving objects within its field of view, ensuring continuous monitoring of potential threats.

Two-way audio communication

Communicate directly through the camera using the built-in microphone and speaker for real-time interaction.

Weatherproof outdoor design

Built with IP66-rated protection, the camera is resistant to dust and water, making it suitable for all-weather outdoor use.

Flexible connectivity options

Supports both 2.4 GHz Wi-Fi and wired Ethernet connections for reliable network performance.

Remote monitoring and alerts

Access live video, playback, and instant alerts through the Dahua DMSS mobile app on iOS and Android devices.

Product Specifications

• Model: DH-P3AE-PV
• Image Sensor: 1/2.8 inch Progressive Scan CMOS
• Resolution: 3MP (2304 × 1296)
• Lens: 4.0 mm fixed lens, F2.0 aperture
• Field of View: Horizontal 86.8 degrees; Vertical 47.1 degrees; Diagonal 102.2 degrees
• Pan Range: 0 to 345 degrees
• Tilt Range: 0 to 80 degrees
• Night Vision: Smart dual light (IR and warm light) up to 30 meters
• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Frame Rate: Up to 25/30 fps
• Audio: Built-in microphone and speaker with two-way talk
• AI Features: Human detection, vehicle detection, auto tracking, IVS (tripwire and intrusion)
• Active Deterrence: Sound alarm and white light strobe
• Storage: Micro SD card support up to 256GB, FTP support
• Network: Wi-Fi (IEEE 802.11 b/g/n 2.4 GHz), RJ-45 (10/100 Base-T)
• Ingress Protection: IP66 weatherproof
• Power Supply: 12 V DC, 1 A
• Power Consumption: Basic 3 W, maximum 9 to 11 W
• Operating Temperature: -30°C to +55°C
• Operating Humidity: Up to 95%
• Weight: Approximately 0.5 kg
• Casing Material: Plastic
• Mobile App: Dahua DMSS (iOS and Android)
• Software Compatibility: Smart PSS, ConfigTool
• Application: Outdoor use for homes, offices, and commercial properties
