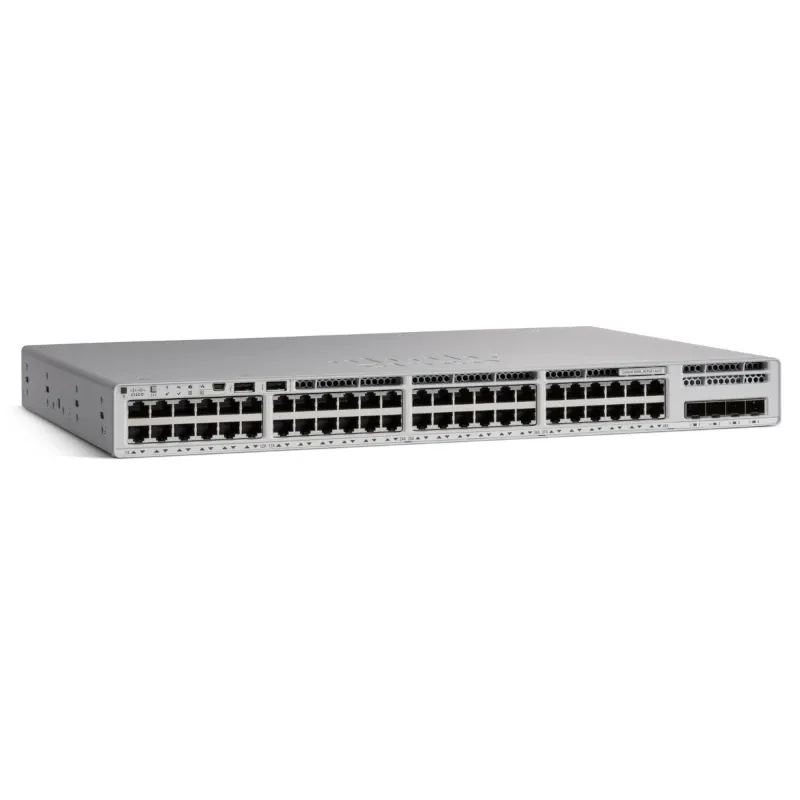

Cisco Catalyst 9200L 48-port PoE+ 4G Fixed Uplinks, Network Essentials Switch (C9200L-48P-4G-E)
The Cisco Catalyst 9200L 48-port PoE+ with 4G fixed uplinks (C9200L-48P-4G-E) is a high-performance Layer 3 access switch designed for enterprise branch offices and campus environments. Offering 48 Gigabit Ethernet PoE+ ports and four fixed 1G SFP uplinks, it delivers reliable connectivity and scalable network performance. Equipped with Cisco’s Network Essentials license, advanced security features, and simplified management through Cisco DNA Center, this switch is ideal for organizations seeking dependable, secure, and energy-efficient network infrastructure.
Product Features
High-Density Gigabit Ports
Provides 48 x 10/100/1000 PoE+ ports to power devices such as IP phones, access points, and cameras, alongside 4 x 1G fixed SFP uplinks for flexible connectivity.
Advanced Security
Includes AES-128 MACsec encryption, Cisco TrustSec, and Trustworthy Systems, ensuring secure communication across the network.
Resiliency and Reliability
Equipped with fixed redundant fans and optional dual power supply support to maintain uninterrupted operations in critical environments.
Simplified Management
Supports Cisco DNA Center for network automation, monitoring, and provisioning, along with Full Flexible NetFlow (FNF) for detailed traffic analytics.
Easy Deployment
Plug and Play (PnP) capabilities streamline device rollout and network expansion, reducing setup time and complexity.
Product Specifications
- Ports: 48 x 10/100/1000 PoE+ ports, 4 x 1G fixed SFP uplinks
- Software License: Network Essentials (Layer 3 routing with OSPF, RIP, static routing)
- Switching Capacity: 104 Gbps
- Forwarding Rate: 154.76 Mpps
- Stacking Bandwidth: Up to 80 Gbps with StackWise-80
- PoE Power Budget: 740W with single 1000W AC; 1440W max with dual power supplies
- Memory: 2 GB DRAM, 4 GB Flash
- MAC Address Table: 16,000 entries
- IPv4 Routes: 11,000 (8,000 direct, 3,000 indirect)
- IPv6 Routes: 1,500 entries
- VLAN Support: Up to 1,024 VLAN IDs
- Switched Virtual Interfaces: 512
- Jumbo Frames: Up to 9,198 bytes
- Packet Buffer: 6 MB shared
- Flexible NetFlow Entries: Up to 16,000
- Power Supply: Single PWR-C5-1KWAC (1000W AC) standard
- Heat Dissipation: 290–300 BTU/hr
- Form Factor: 1RU rack-mountable
- Dimensions (H x W x D): 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm)
- Weight: 9.59–10.6 lbs (4.35–4.8 kg)
- Acoustic Noise: Approximately 42 dBA
- MTBF: 347,760 hours
- Operating Temperature: 23°F to 113°F (-5°C to 45°C)
- Advanced Layer 2/3 Features: Private VLANs, CDP, STP, OSPF, RIP, EIGRP-Stub
- Management Support: Cisco DNA Center, web-based management
