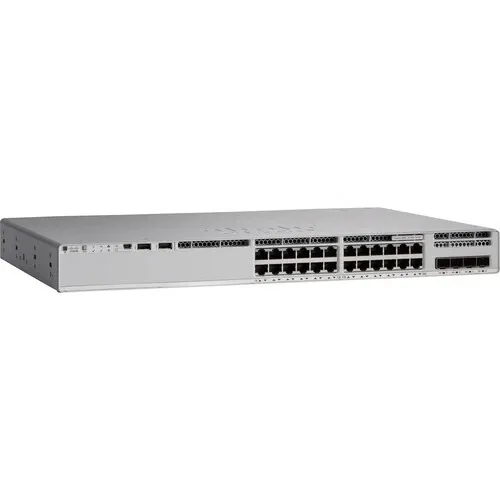

Cisco Catalyst 9200L 24-Port PoE+ 4x10G Uplink Network Essentials Switch (C9200L-24P-4X-E)
The Cisco Catalyst C9200L-24P-4X-E is a 24-port PoE+ managed access switch designed for secure, scalable branch or campus networks. Part of the Catalyst 9200L series, it delivers enterprise-class performance with 4 fixed 10G SFP+ uplinks, a PoE budget of 370W, and advanced Layer 2 and Layer 3 capabilities through the Cisco IOS XE Network Essentials software. With StackWise-80 support for up to 8 switches, this model ensures high availability, seamless scalability, and reliable network performance for modern enterprise environments.
Product Features
High-Performance PoE+ Connectivity
24 Gigabit PoE+ ports provide up to 370W of power to IP phones, wireless access points, and security cameras. A secondary power supply allows expansion up to 740W for power-intensive deployments.
10G Uplink & Stacking
Includes 4 fixed 10G SFP+ uplinks and supports StackWise-80 for up to 8 switches with 80 Gbps stacking bandwidth, enabling seamless network expansion and centralized management.
Advanced Layer 2 and Layer 3 Features
Powered by the UADP 2.0 Mini ASIC, it supports ACLs, QoS, and flexible forwarding for Layer 2 and Layer 3 traffic. Routing protocols include OSPF, EIGRP, RIP, ISIS, and static routes.
Robust Security
Supports AES-128 MACsec encryption, Trust Anchor technologies, and Cisco hardware-based security to protect against unauthorized access and ensure secure boot. Advanced ACLs and TrustSec features enhance network protection.
Reliable Power and Redundancy
Equipped with a default 600W PSU, dual power supply slots, and fixed redundant fans, ensuring high availability and uninterrupted network operation.
Flexible Management
Fully compatible with Cisco DNA Center, Cisco ISE, and model-driven programmability via Cisco IOS XE. Supports Web UI, CLI, and network automation for simplified deployment and monitoring.
Product Specifications
- Downlink Ports: 24 x 10/100/1000 Ethernet PoE+
- Uplink Ports: 4 x 10G SFP+ fixed uplinks
- PoE Budget: 370W default, up to 740W with secondary PSU
- Switching Capacity: 128 Gbps (up to 208 Gbps with stacking)
- Forwarding Rate: 95.23 Mpps
- Stacking: StackWise-80, up to 8 switches, 80 Gbps bandwidth
- CPU & Memory: UADP 2.0 Mini ASIC, 2 GB DRAM, 4 GB Flash
- MAC Address Table: 16,000 entries
- IPv4 Routes: Up to 11,000
- ACL Entries: 1,500
- Packet Buffer: 6 MB
- Flexible NetFlow (FNF): Up to 16,000 entries
- VLAN Support: Up to 4,094 VLAN IDs, 512 SVIs
- Dimensions: 4.4 x 44.5 x 28.8 cm (chassis only); 4.4 x 44.5 x 32.9 cm with fans/PSUs
- Weight: 4.71 kg (~10.38 lb) with default PSU
- Acoustics: Typical 42 dB, max 45 dB
- Heat Dissipation: 1,400–2,047 BTU/hr
- Operating Range: -5°C to 45°C, 5%–90% non-condensing humidity
- Power Consumption: Idle 42.83 W; Max PoE load 466.34 W
- Routing Protocols: OSPF, EIGRP, ISIS, RIP, Static
- Security Features: AES-128 MACsec, Trust Anchor, ACLs, TrustSec
- Management Options: Cisco DNA Center, Web UI, CLI, Cisco ISE, IOS XE programmability
- Reliability: MTBF ~390,310 hours
