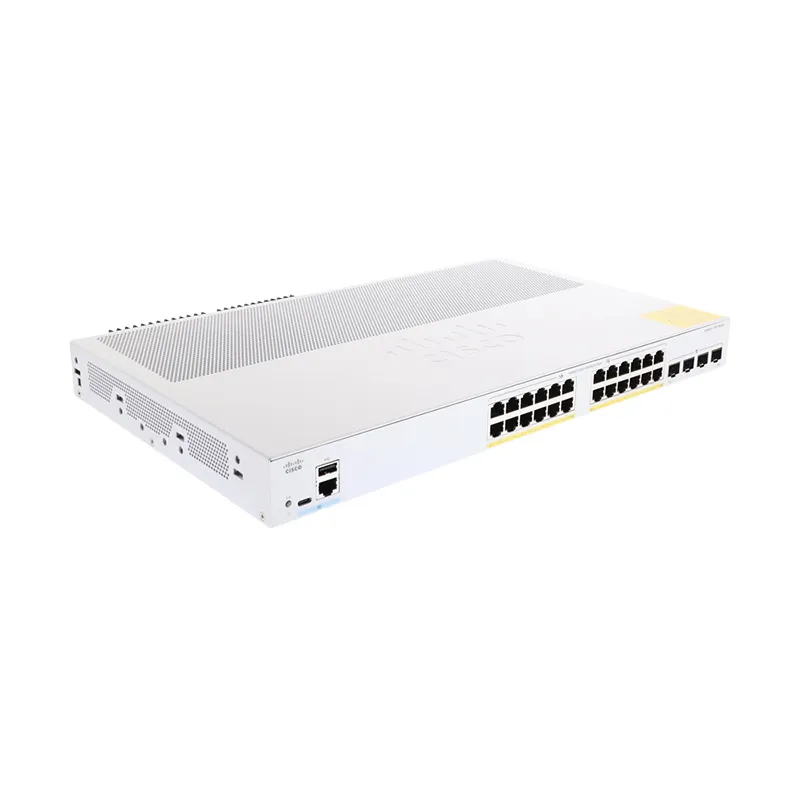

Cisco Catalyst 1300 Managed Switch, 24 Port GE, PoE, 4x1GE SFP (C1300-24P-4G)

The Cisco Catalyst C1300-24P-4G is a managed Layer 3 Gigabit Ethernet switch designed for small to medium-sized businesses and branch offices. Featuring 24 PoE+ Gigabit ports and 4 dedicated 1G SFP uplinks, it delivers a total PoE budget of 195W to power IP phones, wireless access points, and security cameras. Its fanless, rack-mountable design ensures silent operation while providing enterprise-class Layer 3 performance, advanced security, and energy-efficient operation. This switch combines high throughput, flexible management options, and robust reliability, making it ideal for modern office and classroom environments.

Product Features

Layer 3 Routing

Supports static routing for up to 990 routes and 128 IP interfaces, enabling efficient inter-VLAN communication and network segmentation without additional routers.

VLAN and Network Segmentation

Handles up to 4,093 simultaneous VLANs, including Voice VLANs, Multicast TV VLANs, and Q-in-Q, allowing flexible and secure network design.

PoE+ Power Delivery

Provides a 195W PoE+ budget across 24 ports, supporting up to 30W per port for devices like IP cameras, VoIP phones, and wireless access points.

Advanced Security

Includes IEEE 802.1X authentication, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, and IPv6 First Hop Security to safeguard the network against unauthorized access and attacks.

Fanless and Energy-Efficient Design

Fanless chassis ensures 0 dB noise levels for noise-sensitive areas. Energy-efficient operation complies with IEEE 802.3az standards, reducing power usage during low-traffic periods.

Flexible Management

Can be managed via the Cisco Business Dashboard, mobile app, local Web GUI, CLI, or SNMP for seamless configuration and monitoring.

Reliability and Resiliency

Supports dual images for software upgrades with minimal downtime, and offers a high MTBF of approximately 396,413 hours for reliable continuous operation.

Product Specifications

• Port Configuration: 24 x 10/100/1000 Mbps PoE+ ports, 4 x 1G SFP uplink ports
• PoE Budget: 195W total, up to 30W per port
• Switching Capacity: 56 Gbps non-blocking
• Forwarding Rate: 41.66 Mpps (64-byte packets)
• MAC Address Table: 16,000 entries
• Packet Buffer: 1.5 MB shared buffer
• CPU & Memory: Dual-core ARM 1.4 GHz, 1 GB DDR4 RAM, 512 MB Flash
• Stacking: Supports hardware stacking of up to 8 switches
• Routing Protocols: Wire-speed Layer 3 static routing
• VLAN Support: Up to 4,093 VLAN IDs
• IPv6 Support: Full host mode, neighbor discovery, RA guard, DHCPv6 guard
• Power Consumption: Idle 12.9–13.9W; Max (with PoE) ~230.5–233.2W
• Heat Dissipation: 795.2 BTU/hr
• Acoustics: 0 dB (fanless)
• Dimensions: 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
• Weight: ~3.53 kg (7.78 lb)
• Console Ports: 1 x RJ-45, 1 x USB Type-C, 1 x USB-A
• Management Options: Cisco Business Dashboard, Web GUI, CLI, SNMP
• Reliability: Dual images for software upgrades, MTBF ~396,413 hours
