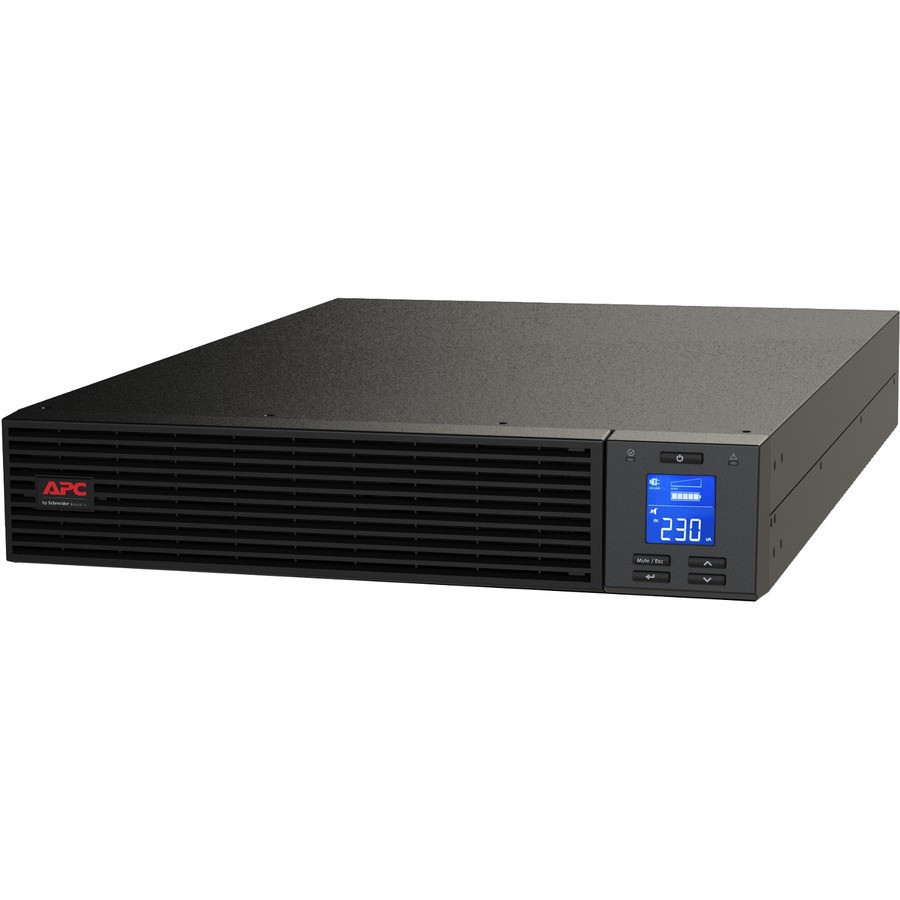

APC Easy UPS On-Line SRV RM 1000VA 230V with Rail Kit (SRV1KRIRK)

The APC Easy UPS On-Line SRV RM 1000VA 230V with Rail Kit (SRV1KRIRK) is a reliable double-conversion online rackmount UPS engineered to provide continuous, clean power for critical IT equipment and network infrastructure. Designed in a compact 2U form factor, it fits seamlessly into standard server racks while delivering pure sine wave output for sensitive electronics. With high efficiency ECO mode, intelligent battery management, and integrated bypass functionality, this UPS ensures maximum uptime and operational stability in environments such as data centers, telecommunications, and healthcare IT systems.

Product Features

Double-Conversion Online Protection

Provides consistent and stable power by isolating connected equipment from voltage fluctuations, surges, and outages through continuous power conversion.

Pure Sine Wave Output

Ensures compatibility with sensitive electronics by delivering clean and reliable sine wave power for servers, storage systems, and networking devices.

Space-Saving 2U Rackmount Design

Optimized for rack environments, the compact 2U design with included rail kit allows easy installation in server cabinets and structured IT setups.

Energy-Efficient ECO Mode

Enhances operational efficiency by reducing power consumption while maintaining dependable protection for connected devices.

Intelligent Battery Charging

Extends battery lifespan through temperature-compensated charging and supports replacement battery cartridge APCRBCV200 for simplified maintenance.

Multifunction LCD Interface

Provides clear, real-time system status, diagnostics, and performance data through an easy-to-read LCD control panel.

Built-In Automatic and Manual Bypass

Maintains continuous power supply during internal faults or maintenance events, ensuring zero interruption to critical loads.

Advanced Connectivity and Management

Equipped with USB and serial ports plus an intelligent card slot for optional network management cards, enabling remote monitoring and integration with centralized platforms.

Product Specifications

• Rated Power: 1000 VA / 800 W
• UPS Type: Double-conversion online
• Waveform Type: Pure sine wave
• Form Factor: 2U rackmount with rail kit
• Input Voltage: 220 V / 230 V / 240 V AC
• Input Voltage Range: 110 to 285 V (half load), 160 to 280 V (full load)
• Input Connection: IEC 60320 C14
• Output Voltage: 220 V / 230 V / 240 V AC
• Output Connections: 3 × IEC 60320 C13
• Output Frequency: 50/60 Hz ± 3 Hz
• Efficiency: Up to 88 percent at full load
• Battery Type: Internal lead-acid battery
• Battery Voltage: 24 V
• Battery Recharge Time: Approximately 4 hours
• Battery Life: 3 to 5 years
• Replacement Battery: APCRBCV200
• Runtime at Full Load: Approximately 3 minutes 49 seconds
• Surge Energy Rating: 600 J
• Connectivity: USB port, serial port, intelligent card slot
• Display Type: Multifunction LCD
• Noise Level: 50 dBA
• Operating Temperature: 0 to 40 degrees Celsius
• Storage Temperature: -20 to 50 degrees Celsius
• Humidity: 0 to 95 percent non-condensing
• Protection Rating: IP20
• Dimensions (H × W × D): 86 mm × 437 mm × 312 mm
• Weight: 11 kg
• Mounting Position: Horizontal rack-mounted
• Color: Black
