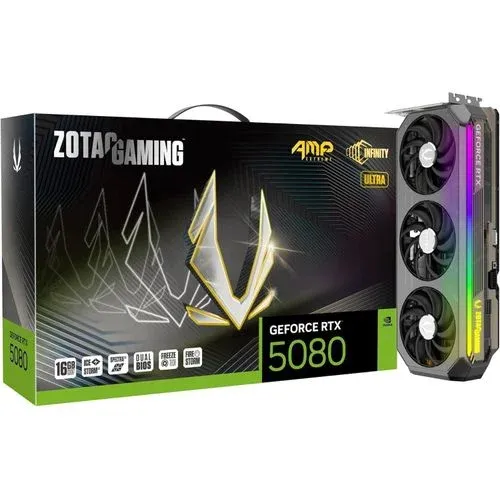

ZOTAC GAMING GeForce RTX 5080 AMP Extreme INFINITY ULTRA 16GB GDDR7 Graphics Card (ZT-B50800BU-10P)

The ZOTAC GAMING GeForce RTX 5080 AMP Extreme INFINITY ULTRA 16GB GDDR7 is a top-tier graphics card designed for gamers, creators, and enthusiasts who demand peak performance. Built on NVIDIA’s Blackwell architecture with DLSS 4 support, this ULTRA variant delivers the highest factory overclock in ZOTAC’s RTX 5080 lineup. Featuring 16GB of GDDR7 memory, 10,752 CUDA cores, and an advanced IceStorm 3.0 cooling system, it enables ultra-high-resolution gaming, multi-monitor setups, and AI-accelerated workloads. Its infinity mirror design, reinforced mid-frame, and integrated ARGB lighting make it a striking centerpiece for any premium gaming rig.

Product Features

NVIDIA Blackwell Architecture & DLSS 4

Powered by NVIDIA’s latest Blackwell architecture with DLSS 4, the RTX 5080 AMP Extreme ULTRA delivers advanced AI acceleration, high-frame-rate gaming, and realistic ray tracing performance.

Strong Factory Overclock

Comes factory-overclocked with a 2,730 MHz engine clock for superior gaming and creative performance compared to other RTX 5080 models.

Infinity Mirror Design & ARGB Lighting

The signature infinity mirror design combined with SPECTRA 2.0 RGB lighting and SPECTRA LINK allows customizable lighting and visual synchronization across compatible devices.

IceStorm 3.0 Cooling & Larger Vapor Chamber

Advanced IceStorm 3.0 cooling with a larger vapor chamber and BladeLink fans ensures efficient heat dissipation and quiet operation under extreme loads.

Reinforced Build & Metal Backplate

Reinforced metal mid-frame, die-cast backplate, and bundled GPU support bracket prevent sagging and improve passive cooling performance.

Multi-Display & High-Resolution Support

Supports up to four displays simultaneously via 3x DisplayPort 2.1b and 1x HDMI 2.1b, with resolutions up to 4K at 480Hz or 8K at 165Hz with DSC.

FREEZE Fan Stop & Dual BIOS

FREEZE fan stop technology ensures silent operation during light workloads, and dual BIOS offers flexible performance and reliability settings.

Power & Compatibility

Requires 1x 12V-2×6 power input with a recommended 850W power supply. Compatible with PCIe 5.0 x16 motherboards and Windows 10/11 64-bit systems.

Product Specifications

• GPU: NVIDIA GeForce RTX 5080 (Blackwell Architecture)
• CUDA Cores: 10,752
• Memory: 16GB GDDR7
• Memory Bus: 256-bit
• Engine Clock: 2,730 MHz
• Memory Clock: 30 Gbps
• AI TOPS: 1,801
• PCI Express: PCIe 5.0 x16
• Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
• Maximum Displays Supported: 4
• Maximum Resolution: 4K at 480Hz or 8K at 165Hz with DSC
• HDCP Support: 2.3
• Cooling: IceStorm 3.0 with vapor chamber and BladeLink fans
• Slot Width: 3.5
• Power Input: 1 x 12V-2×6
• Recommended PSU: 850W
• Power Consumption: 360W
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Card Dimensions: 332.1mm x 137.5mm x 69.6mm (13.1″ x 5.4″ x 2.7″)
• Accessories: User manual, 3x 8-pin-to-16-pin cables, SPECTRA LINK cable, GPU support stand
