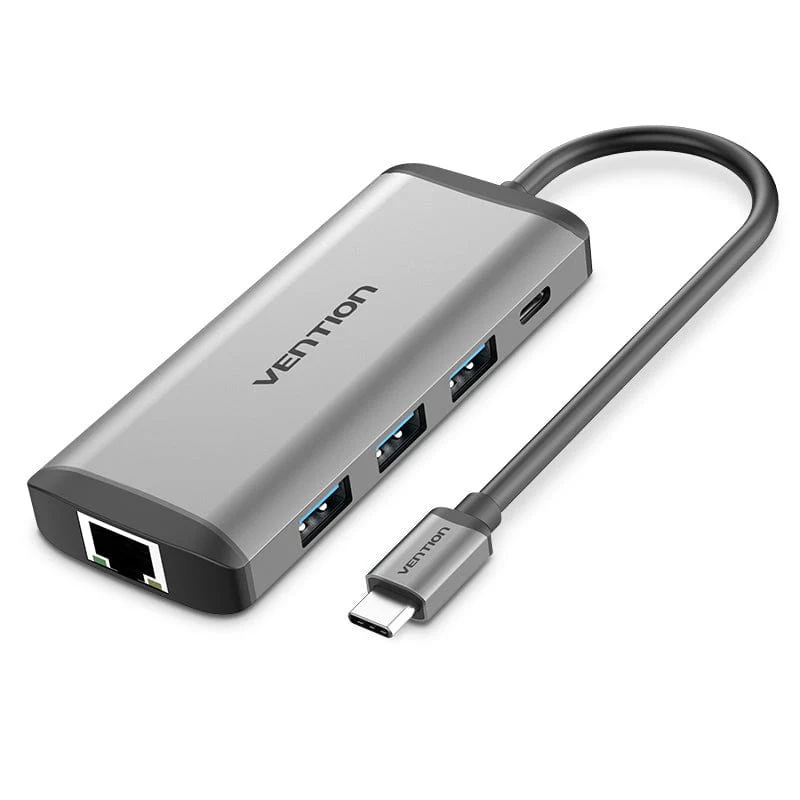

Vention USB-C Multi-Function 8-in-1 Docking Station (CNDHB)

The Vention USB-C Multi-Function 8-in-1 Docking Station (CNDHB) is a compact and versatile USB-C hub designed to expand a single USB-C port into multiple essential connectivity options for laptops, tablets, and compatible smartphones. It combines high-resolution video output, fast data transfer, stable wired networking, storage access, and power delivery in a lightweight aluminum alloy design. Built for productivity and portability, it is suitable for office work, remote setups, and travel use.

Product Features

8-in-1 Connectivity Expansion

Expands one USB-C port into eight functional connections, integrating HDMI output, USB ports, Ethernet, card readers, and charging into a single hub.

4K HDMI Video Output

Supports HDMI output up to 4K UHD at 30Hz, with backward compatibility for 2K and Full HD displays, enabling use with monitors and projectors.

High-Speed USB 3.0 Data Transfer

Includes three USB 3.0 Type-A ports delivering up to 5Gbps transfer speeds for fast file sharing and stable peripheral connectivity.

Gigabit Ethernet Connectivity

Built-in RJ45 port supports 10/100/1000Mbps speeds, providing stable wired internet for streaming, conferencing, and large downloads.

USB-C Power Delivery Charging

Supports USB-C PD up to 100W input with efficient pass-through charging of up to 87W to the host device while maintaining full hub functionality.

SD and TF Card Reader Support

Integrated SD and microSD card slots support capacities up to 2TB for easy data transfer from cameras and storage devices.

Durable Aluminum Alloy Construction

Constructed with an aluminum alloy and ABS housing that improves heat dissipation and ensures stable performance during extended use.

Plug-and-Play Operation

No drivers required, enabling instant compatibility across supported operating systems and devices.

Product Specifications

• Model: CNDHB
• Video Output: HDMI 1.4 up to 4K UHD (3840 × 2160) at 30Hz
• Additional Video Support: 2K at 60Hz, 1080p at 60Hz, 3D video
• USB 3.0 Ports: 3 × Type-A, up to 5Gbps
• Ethernet Port: RJ45 Gigabit, 10/100/1000Mbps (RTL8153B chipset)
• Power Delivery: USB-C PD up to 100W input, approximately 87W pass-through output
• Card Readers: SD + TF (microSD) slots
• Card Capacity Support: Up to 2TB
• Card Reader Limitation: Some versions support single-card access at a time
• Chipset Architecture: LT8711HE (video), VL817 (USB hub), RTL8153B (Ethernet), GL823 (card reader)
• Cable Length: 0.15m integrated cable
• Cable Material: TPE jacket with tinned copper conductors
• Shielding: Aluminum foil and braided shielding for interference reduction
• Connector Type: Nickel-plated USB-C connector
• Housing Material: Aluminum alloy with ABS accents
• Dimensions: Approximately 101.4mm × 43mm × 15mm
• Weight: Approximately 45g–90g depending on variant
• Operating Systems: Windows 7/8/10/11, macOS, Linux, Android, iPadOS
• Host Requirement: USB-C port must support DisplayPort Alt Mode and Power Delivery
• Installation: Plug-and-play, no drivers required
• Use Cases: External displays, wired internet, USB peripherals, SD/TF data transfer, and charging simultaneously
