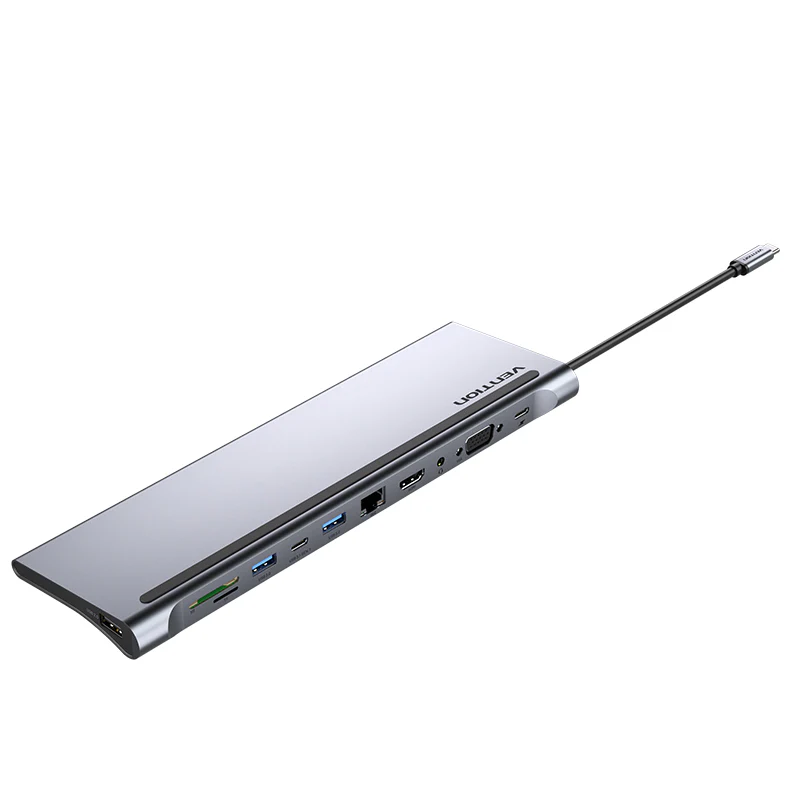

Vention USB-C 11-in-1 Multi-function Docking Station (THTHC)

The Vention USB-C 11-in-1 Multi-function Docking Station (THTHC) is a versatile expansion hub designed to convert a single USB-C port into a complete workstation setup. It is ideal for laptops and mobile devices that require extended connectivity for multiple displays, fast data transfer, wired networking, and simultaneous charging. With support for both modern HDMI 4K output and legacy VGA displays, it provides a flexible solution for office productivity, presentations, and professional multitasking environments.

Product Features

11-in-1 All-in-One Connectivity Expansion

Expands a single USB-C port into 11 functional ports, combining video output, data transfer, power delivery, networking, storage access, and audio support in one compact hub.

Dual Video Output Support

Includes HDMI and VGA ports, allowing connection to modern 4K displays as well as older projectors and monitors. Supports flexible display configurations for productivity and presentations.

100W Power Delivery Charging

Supports USB-C Power Delivery up to 100W, enabling fast laptop charging while simultaneously using all dock functions without performance loss.

High-Speed Data Transfer Ports

Equipped with USB 3.0 and USB 2.0 ports, providing up to 5Gbps transfer speeds for external drives, peripherals, and accessories.

Stable Gigabit Ethernet Connectivity

Built-in RJ45 port delivers reliable wired internet speeds up to 1000Mbps, ideal for stable streaming, conferencing, and large file transfers.

Integrated SD and TF Card Readers

Supports SD and microSD cards for quick access to media files, making it suitable for photographers, designers, and content creators.

Audio Input and Output Support

Includes a 3.5mm TRRS audio jack that supports both headphones and microphone input for communication and multimedia use.

Durable Aluminum Alloy Construction

Made with a premium aluminum alloy body that improves heat dissipation, enhances durability, and provides a professional aesthetic.

Plug-and-Play Operation

No drivers or software installation required, ensuring immediate compatibility with supported devices and operating systems.

Product Specifications

• Model: THTHC
• Material: Aluminum alloy housing with ABS accents
• Cable Length: 0.25m integrated USB-C cable
• Power Input: USB-C Power Delivery up to 100W (PD 3.0 compatible)
• HDMI Output: Up to 4K at 30Hz
• VGA Output: Up to 1920 × 1080 at 60Hz
• Dual Display Mode: Mirror mode supported; HDMI + VGA typically limited to 1080p at 60Hz when used simultaneously
• USB 3.0 Ports: 2 × Type-A, up to 5Gbps
• USB 2.0 Ports: 1 × Type-A, up to 480Mbps
• USB-C Data Port: 1 × Gen 1, up to 5Gbps (data only)
• Ethernet Port: RJ45 Gigabit, 10/100/1000Mbps
• Card Readers: SD and TF (microSD) slots
• Supported Card Formats: SDXC, SDHC, MicroSD (capacity up to 2TB depending on variant; some versions support up to 256GB)
• Audio Port: 3.5mm TRRS (headphone and microphone support)
• Chipset: Integrated multi-function control chipset (model varies by batch)
• Operating Systems: Windows 7/8/10/11, macOS, Linux, Chrome OS, Android, iOS
• Display Requirement: USB-C port must support DisplayPort Alt Mode for video output and Power Delivery for charging support
• Design Feature: 8° bevel design usable as a laptop stand
• Connector Type: Nickel-plated interfaces for corrosion resistance
• Installation: Plug-and-play, no drivers required
