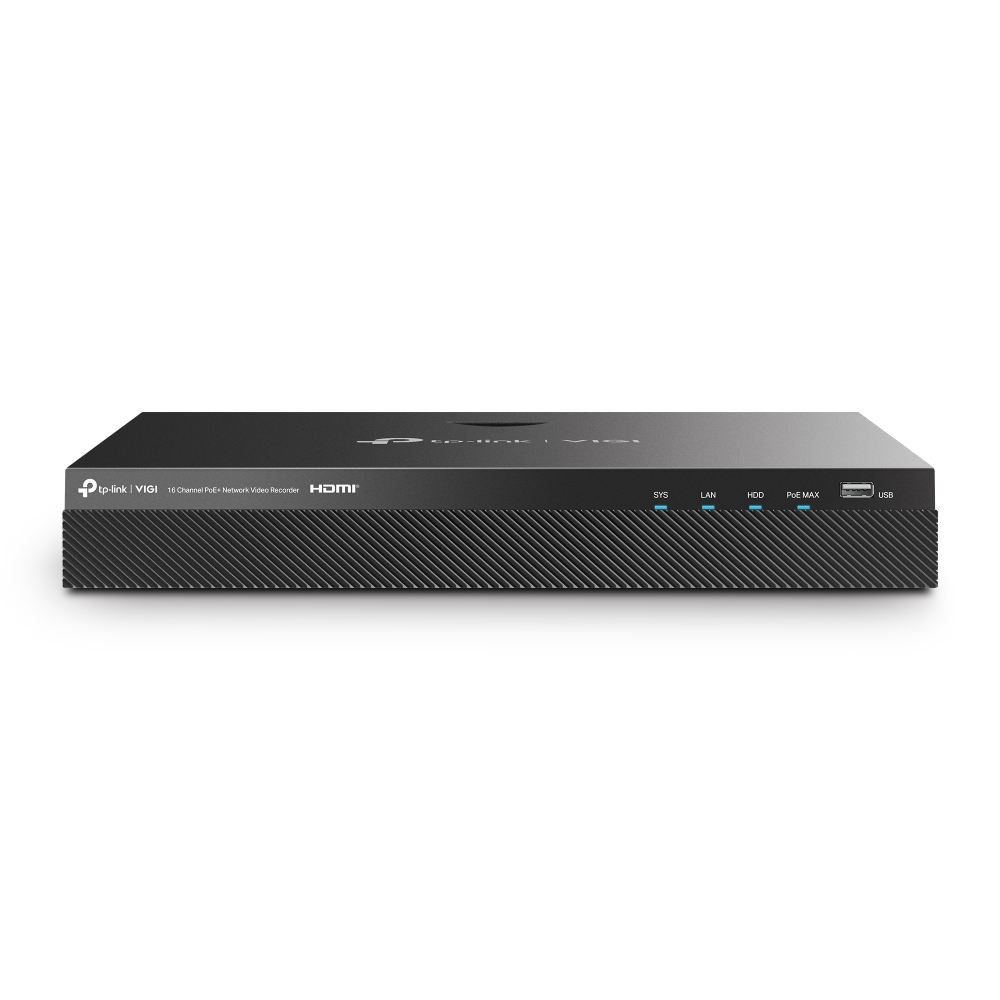

TP-Link VIGI 16 Channel PoE+ Network Video Recorder (VIGI NVR2016H-16P)

The TP-Link VIGI 16 Channel PoE+ Network Video Recorder (VIGI NVR2016H-16P) is a professional-grade surveillance recording solution designed for reliable, high-capacity security monitoring. It supports up to 16 IP camera channels with 4K HDMI output, delivering sharp, detailed live and recorded footage for modern security systems. With integrated PoE+ ports, high decoding capability, and efficient H.265+ compression, it reduces bandwidth and storage usage while maintaining high video quality. This NVR is ideal for businesses, offices, warehouses, and multi-site security deployments requiring centralized and scalable video management.

Product Features

16-Channel High-Definition Video Management

The device supports 16-channel IP video input, allowing multiple security cameras to be connected and managed from a single interface. It provides flexible multi-view display modes, including 1, 4, 6, 8, 9, and 16-screen layouts for efficient monitoring.

4K HDMI and VGA Simultaneous Output

The recorder delivers ultra-clear 4K HDMI output alongside VGA output, enabling simultaneous display across multiple monitors. This ensures flexible installation in security control rooms and enhanced situational awareness.

16× PoE+ Ports with Integrated Power Supply

Equipped with 16 PoE+ ports, the NVR simplifies installation by delivering both power and data through a single cable. With a total 90W PoE budget and up to 30W per port, it supports a wide range of IP cameras without additional power adapters.

High Decoding Performance for Smooth Playback

Supports up to 8 channels at 2MP or 4 channels at 4MP decoding, ensuring smooth real-time viewing and playback even under high camera loads. This makes it suitable for high-density surveillance environments.

Efficient H.265+ Video Compression

Advanced H.265+ compression technology reduces storage requirements and bandwidth consumption while preserving video clarity. This allows longer recording periods without increasing storage costs.

Dual SATA Storage Expansion Support

The NVR includes 2 SATA interfaces, supporting up to 16TB per hard drive. This provides scalable storage capacity for extended video retention and large surveillance setups.

Remote Monitoring and Mobile Access

Users can access live and recorded footage remotely via Android, iOS devices, or web browsers including Chrome, Firefox, and Edge. This ensures continuous monitoring from anywhere with internet access.

Advanced Smart Detection and Alarm System

The system supports intelligent event detection including motion detection, line crossing, intrusion detection, human detection, and vehicle detection. It also supports alarm linkage features such as recording, buzzer alerts, and audible notifications when paired with compatible cameras.

Product Specifications

• IP Video Input: 16-channel
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output: 3840×2160/30Hz, 1920×1080/60Hz and multiple resolutions supported
• VGA Output: Up to 1920×1080/60Hz
• Video Output Mode: HDMI and VGA simultaneous output
• Multi-View Display: 1/4/6/8/9/16 split screen
• Video Compression: H.265+, H.265, H.264+, H.264
• Audio Compression: G.711A, G.711U, G.726
• Record Resolution Support: Up to 8MP and multiple lower resolutions
• Synchronous Playback: 16-channel support
• Record Modes: Manual, scheduled, motion detection
• Playback Modes: Instant, regular, tag-based, event-based
• Backup Modes: Regular backup and video clip backup
• Playback Functions: Fast forward, rewind, zoom, clip export, frame-by-frame playback
• Network Interface: 1× RJ-45 10/100/1000 Mbps Ethernet port
• Protocol Support: TCP/IP, DHCP, HTTP, HTTPS, RTSP, SNMP, IPv4/IPv6 and more
• Mobile Access: Android and iOS compatible
• Browser Support: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF Profile S/T, CGI
• USB Ports: 1 front USB 2.0, 1 rear USB 2.0
• Audio Interface: 1 RCA input, 1 RCA output
• Video Outputs: 1 HDMI, 1 VGA
• Storage: 2 SATA interfaces
• HDD Capacity: Up to 16TB per HDD
• eSATA Support: 1 port
• PoE Standard: 802.3af/at
• PoE Ports: 16 × RJ-45 10/100 Mbps
• PoE Budget: 90W total, 30W max per port
• Alarm Functions: Motion detection, intrusion detection, line crossing, tampering, object detection, human/vehicle detection, audio detection
• Anomaly Detection: Video loss, disk error, login failure, IP conflict, fan error
• Operating Temperature (NVR): -10°C to 55°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Dimensions: 330 × 285 × 45 mm
• Net Weight: 1.9 kg
• Power Supply: 53.5V DC / 2.43A
• Power Consumption: 6.2W (no HDD), up to 40W (with HDD)
