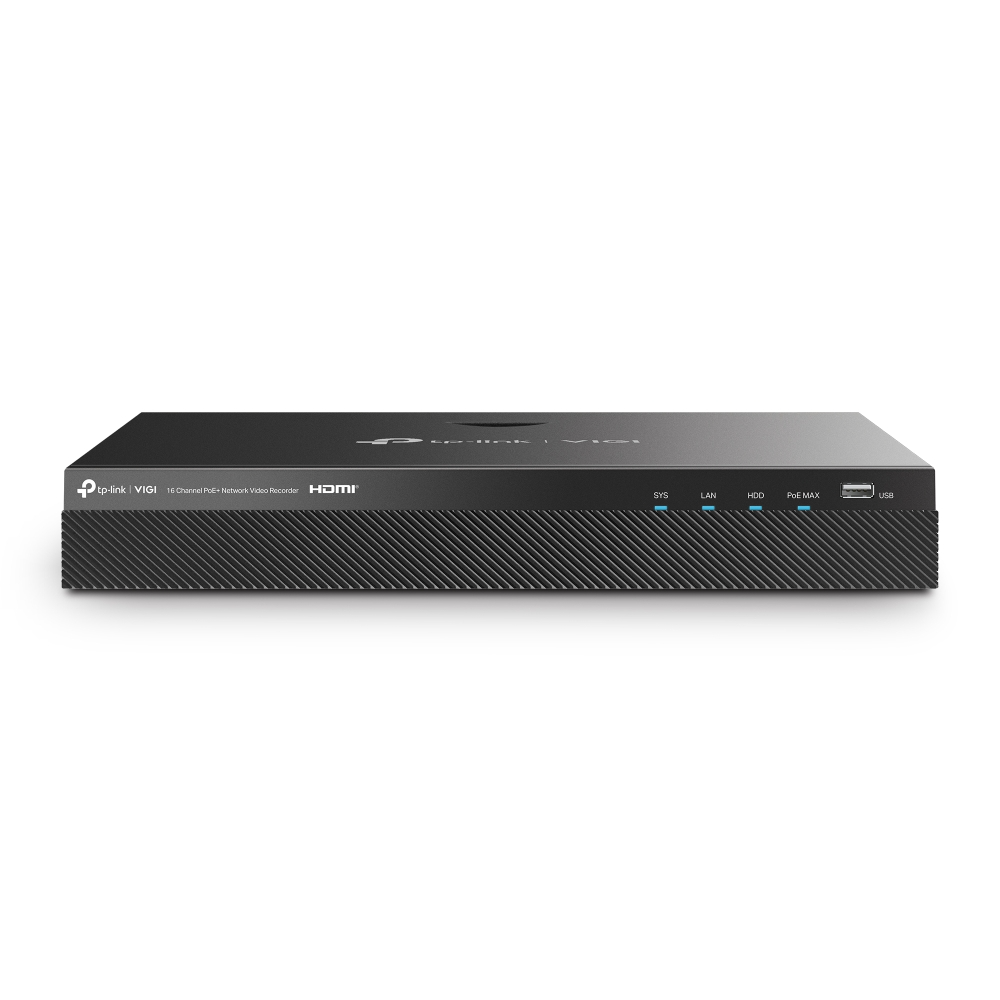

TP-Link VIGI 16 Channel PoE+ Network Video Recorder (VIGI NVR2016H-16MP)

The TP-Link VIGI NVR2016H-16MP is a high-performance 16-channel network video recorder designed for scalable and intelligent surveillance systems. Featuring built-in PoE+ ports, 4K HDMI output, and advanced H.265+ compression, it enables efficient video management with reduced bandwidth and storage requirements. With powerful decoding capabilities, intelligent analytics, and support for up to 16 TB storage per drive, this NVR is ideal for businesses and large installations seeking reliable, centralized security monitoring with seamless playback and remote access.

Product Features

16-Channel Live View with 4K Output

Support up to 16 IP cameras with simultaneous live viewing and ultra-high-definition 4K HDMI output for clear and detailed monitoring.

Integrated 16 PoE+ Ports

Built-in PoE+ ports provide both power and data through a single cable, simplifying installation and reducing infrastructure costs.

High Decoding Performance

Efficiently decode up to 16 channels at 1080p or 10 channels at 3MP, ensuring smooth video playback and real-time monitoring.

16-Channel Synchronous Playback

Review recorded footage across all channels simultaneously, improving incident analysis and investigation efficiency.

Advanced H.265+ Compression

Optimize storage and bandwidth usage while maintaining high-quality video recording and playback.

Intelligent Video Analytics

Built-in AI features such as motion detection, line crossing, and intrusion detection, enhanced with human and vehicle classification for accurate alerts.

High Bandwidth Capacity

Supports up to 320 Mbps incoming and outgoing bandwidth for stable video streaming and recording across multiple channels.

Flexible Storage Options

Equipped with dual SATA interfaces supporting up to 16 TB per drive, allowing large-scale video storage.

Multiple Video Outputs

HDMI and VGA outputs can operate independently or simultaneously for flexible display configurations.

Comprehensive Alarm Integration

Includes multiple alarm inputs and outputs for integration with external security systems and automated responses.

Product Specifications

• Video Input: 16 IP camera channels
• Incoming Bandwidth: Up to 320 Mbps (160 Mbps with AI enabled)
• Outgoing Bandwidth: Up to 320 Mbps (160 Mbps with AI enabled)
• HDMI Output Resolution: Up to 3840 × 2160 at 30 Hz
• VGA Output Resolution: Up to 1920 × 1080 at 60 Hz
• Video Output Mode: HDMI and VGA independent or simultaneous
• Multi-View Display: 1, 4, 6, 8, 9, or 16 channels
• Video Compression: H.265+, H.265, H.264+, H.264
• Audio Compression: G.711A, G.711U, G.726
• Recording Resolution: Up to 8MP
• Decoding Capability:
  • 25 fps: 10 channels at 3MP or 16 channels at 1080p
  • 30 fps: 4 channels at 8MP, 6 channels at 5MP, 8 channels at 4MP
• Synchronous Playback: 16 channels
• Record Modes: Manual, scheduled, motion detection
• Playback Modes: Instant, regular, tag, event playback
• Backup Modes: Regular backup, video clip backup
• Network Interface: 1 RJ45 10/100/1000 Mbps Ethernet port
• Supported Protocols: TCP/IP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, IPv4, IPv6, SSL/TLS
• ONVIF Support: Profiles G, S, and T
• Mobile Access: Android and iOS support
• USB Ports: 1 front USB 2.0, 1 rear USB 3.0
• Audio Interface: 1 RCA input, 1 RCA output
• Alarm Input and Output: 6 inputs, 4 outputs
• SATA Interfaces: 2 SATA ports
• Storage Capacity: Up to 16 TB per HDD
• PoE Ports: 16 RJ45 10/100 Mbps ports
• PoE Standard: IEEE 802.3af/at
• PoE Budget: 140 W total, up to 30 W per port
• Operating Temperature: -10°C to 55°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10 percent to 90 percent non-condensing
• Power Supply: 53.5V DC
• Power Consumption: 6.2 W without disk, up to 40 W with disk
• Dimensions: 330 × 285 × 45 mm
• Weight: Net 2.2 kg, Gross 4.2 kg
• Certifications: CE, FCC, HDMI, ONVIF
• Included Accessories: Power adapter, mounting brackets, cables, mouse, quick installation guide
