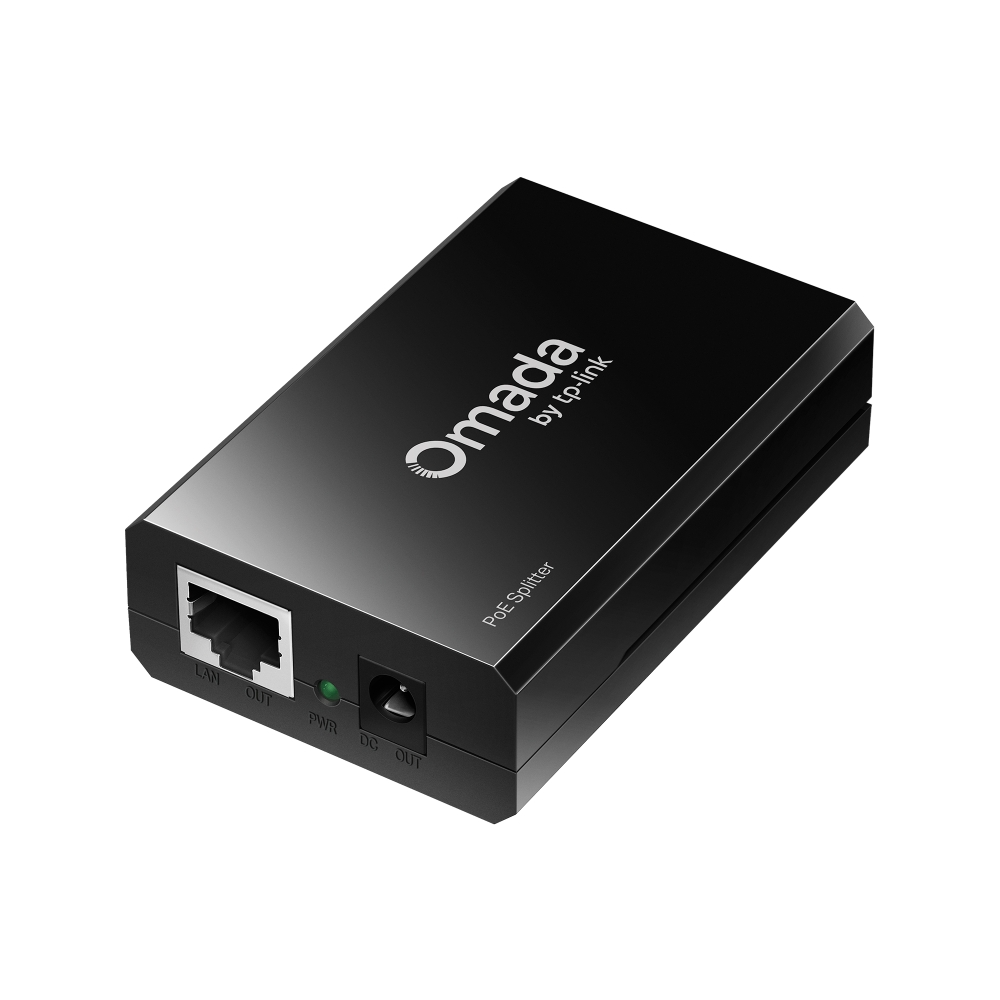

TP-Link Omada PoE Splitter (POE10R)
The TP-Link Omada POE10R PoE Splitter is a compact and efficient power-over-Ethernet solution designed to convert PoE input into selectable DC power outputs. Fully compliant with IEEE 802.3af standards, it enables network devices such as IP cameras, access points, and IP phones to be powered in locations where electrical outlets are not available. Supporting Gigabit speeds and multiple voltage outputs, it ensures stable power delivery and reliable data transmission over a single Ethernet cable. Its plug-and-play design makes installation simple without requiring any configuration.
Product Features
IEEE 802.3af PoE Compatibility
The POE10R is fully compliant with IEEE 802.3af standards, ensuring compatibility with a wide range of PoE switches and injectors for flexible network integration.
Selectable Power Output for Device Flexibility
Supports multiple DC output options including 12V, 9V, and 5V, allowing it to power various network devices depending on their voltage requirements.
Gigabit Network Support for High-Speed Data
Supports 10/100/1000Mbps Ethernet speeds, ensuring fast and stable data transmission alongside power delivery for modern network devices.
Plug and Play Installation
No configuration is required. The device works immediately after connection, making it ideal for quick deployment in surveillance and networking environments.
Extended Power Delivery Distance
Delivers both power and data over Ethernet cables up to 100 meters, enabling flexible installation in remote or hard-to-reach locations.
Compact Design for Easy Deployment
Its small and lightweight form factor allows discreet installation near powered devices, reducing cable clutter and improving setup efficiency.
Product Specifications
- Standards: IEEE 802.3af compliant
- Ports: 2 × 10/100/1000Mbps RJ45 ports, 1 × DC power output port
- Ethernet Features: Auto Negotiation, Auto MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 (up to 100m), STP 100Ω, 100BASE-TX: UTP category 5, 5e (up to 100m), STP 100Ω, 1000BASE-T: UTP category 5, 5e, 6 (up to 100m)
- Power Output: 12V DC 1A, 9V DC 1A, 5V DC 2A (selectable)
- Maximum Transmission Distance: Up to 100 meters
- LED Indicator: Power (PWR)
- Power Input: IEEE 802.3af PoE input
- Dimensions: 80.8 × 54 × 24 mm
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
- Certifications: FCC, CE, RoHS
- Package Contents: PoE splitter (POE10R), power cord, installation guide
