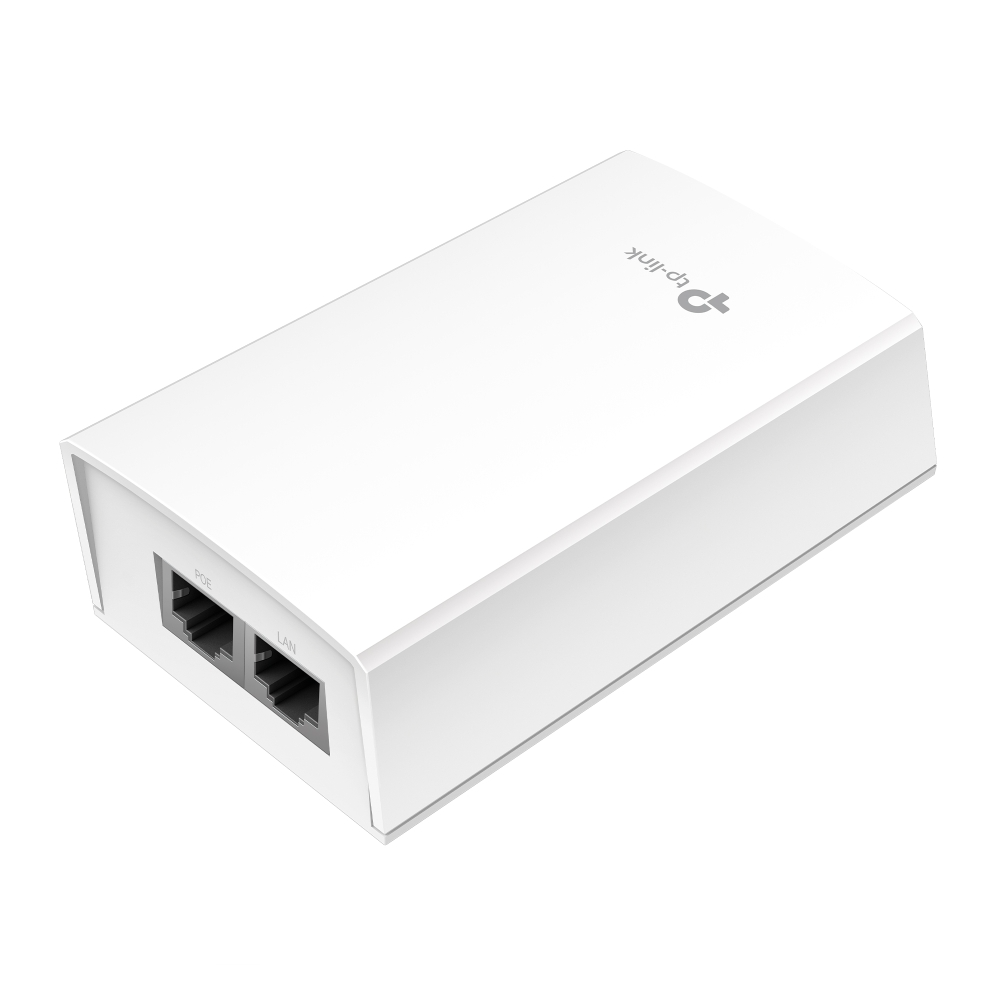

TP-Link Omada 48V 24W Passive PoE Adapter (POE4824G)

The TP-Link Omada 48V 24W Passive PoE Adapter (POE4824G) is a compact and efficient networking device designed to deliver both power and data over a single Ethernet cable using 48V passive PoE technology. It is built to simplify network deployments for devices such as access points, IP cameras, and other compatible equipment in locations where direct power access is limited. With Gigabit speed support, plug-and-play installation, and a durable wall-mountable design, it provides a reliable and cost-effective solution for extending network connectivity while maintaining stable performance.

Product Features

48V Passive PoE Power Delivery

The POE4824G supports 48V passive PoE, enabling stable power transmission to compatible network devices without requiring complex configuration or active negotiation protocols.

Gigabit Speed Support for High-Performance Networking

With 10/100/1000Mbps Ethernet ports, the adapter ensures fast and stable data transfer, making it suitable for bandwidth-intensive applications and modern network environments.

Plug-and-Play Operation

Designed for ease of use, the device requires no software setup or configuration. Users can simply connect the cables and begin operation immediately.

Wall-Mountable Compact Design

Its lightweight and compact form factor allows flexible installation, including wall mounting, making it ideal for structured cabling environments and space-limited installations.

Automatic Power Handling

The adapter intelligently supports power delivery for connected devices within its 24W capacity, ensuring safe and efficient operation.

Product Specifications

• Brand: TP-Link Omada
• Model: TL-POE4824G
• Interface:
  • 1 × 10/100/1000Mbps RJ45 shielded data input port
  • 1 × 10/100/1000Mbps RJ45 shielded passive PoE output port
  • 1 × 100–240V / 50–60Hz AC power input port
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (max 100m), STP 100Ω (max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (max 100m), STP 100Ω (max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (max 100m)
• Power Output: 48V passive PoE, 24W maximum
• LED Indicator: Power (PWR)
• Dimensions: 110 × 57 × 38.8 mm (4.3 × 2.3 × 1.5 in)
• Certification: FCC, CE, RoHS
• Package Content: PoE adapter unit, power cord, wall mounting kit
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
