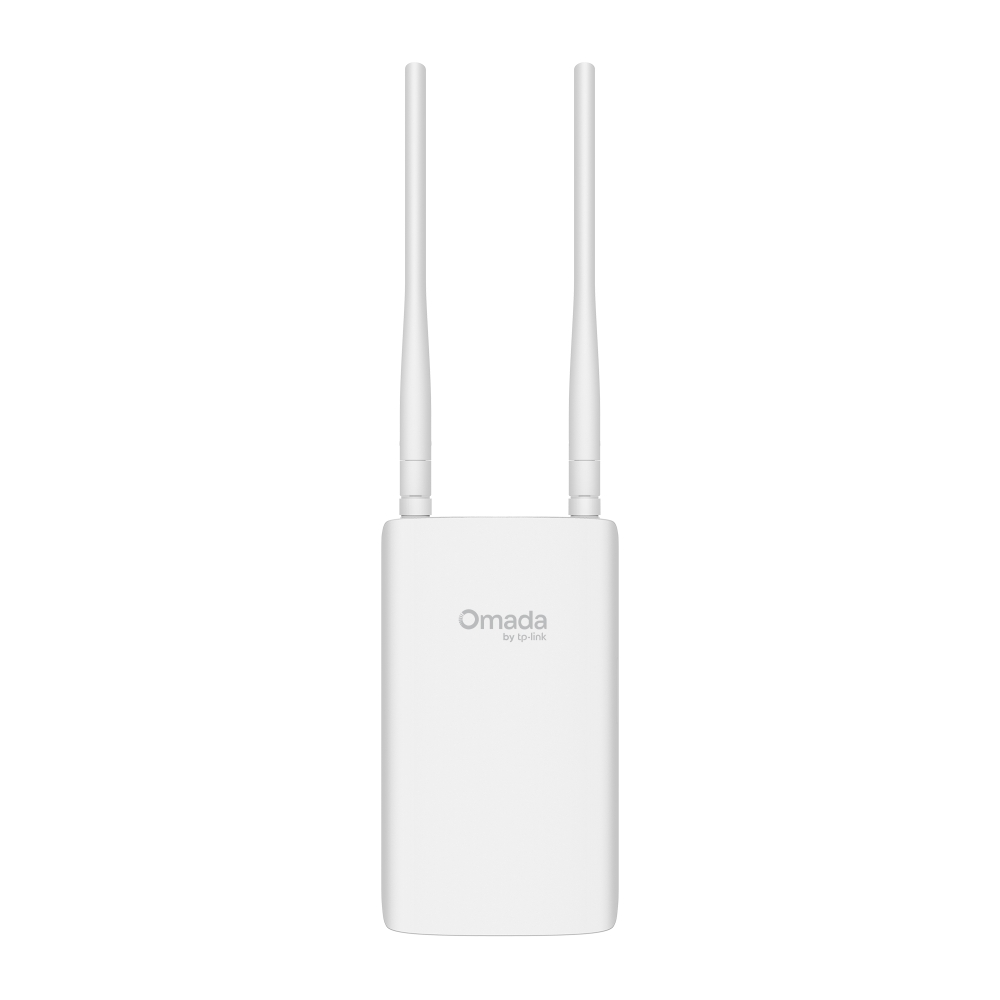

TP-Link Omada AX1800 Outdoor Wi-Fi 6 Access Point (TL-EAP603-Outdoor)

The TP-Link AX1800 Outdoor Wi-Fi 6 Access Point (TL-EAP603-Outdoor) provides high-performance dual-band Wi-Fi with speeds up to 1.8 Gbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz). Designed for outdoor deployment, it features long-range coverage up to 300 meters, IP65/66 weatherproof protection, 6 kV lightning protection, and a wide operating temperature range from -40 °C to 70 °C. With Omada SDN integration, seamless roaming, Omada Mesh, and PoE+ support, it ensures reliable, flexible, and easily managed wireless connectivity for enterprise, campus, and outdoor applications.

Product Features

Seamless Wi-Fi 6 Speeds

Delivers up to 1.8 Gbps combined speeds across 2.4 GHz and 5 GHz bands for multiple device connectivity.

Long-Range Outdoor Coverage

Provides dual-band omnidirectional coverage up to 300 meters (984 ft) with external antennas.

PoE+ Powered

Supports 802.3at PoE and Passive PoE for easy installation with included adapter.

Robust Outdoor Design

IP65/66 weatherproof enclosure, 6 kV lightning protection, and wide temperature operation for harsh environments.

Easy and Quick Setup

Wall/pole mounting with one-click configuration using Omada SDN.

Advanced Network Features

Supports Omada Mesh, Seamless Roaming, centralized cloud management, guest network, and load balancing.

Intelligent Wireless Management

Includes Airtime Fairness, band steering, automatic channel selection, and WLAN optimization.

Enhanced Security

Supports WPA3/WPA2/WPA-Personal & Enterprise, ACL, MAC filtering, 802.1X, Captive Portal, RADIUS, PPSK, and multiple EAP authentication methods.

Product Specifications

• Interface: 1× Gigabit Ethernet Port (PoE in), 1× Grounding Terminal
• Button: Reset (press >5 sec to restore factory settings)
• Power Supply: 802.3at PoE, 48V Passive PoE (adapter included; for dry indoor use only)
• Power Consumption: 15.8 W (PoE+ active), 4.8 W (idle mode)
• Dimensions (Main Unit): 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in)
• Antenna: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi (external omnidirectional), Bluetooth: 1× 4 dBi internal
• Weatherproof Enclosure: IP66 (wall mount), IP65 (pole mount)
• Mounting: Wall / Pole Mount (kits included)
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate: 2.4 GHz up to 574 Mbps, 5 GHz up to 1201 Mbps
• Wireless Features: Maximum 16 BSSIDs, Maximum 250+ clients, Guest Network, ACS, Airtime Fairness, Band Steering, 802.11 Rate Control, Rogue AP Detection, URL Filtering, WLAN Optimization, Lock to AP, SSID/Client Rate Limit, Load Balance, Seamless Roaming (802.11k/v/r, AI Roaming), Multicast/Broadcast Management, QoS
• Wireless Security: ACL, MAC Filter, 802.1X, MAC-Based Authentication, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, PPSK, Captive Portal (voucher, SMS, RADIUS, LDAP, external portal), Multiple EAP Types (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-MD5, EAP-MSCHAPv2)
• Transmission Power: CE 2.4 GHz 20 dBm, 5 GHz 23–29 dBm; FCC 2.4 GHz 25 dBm, 5 GHz 24–27 dBm; Minimum power CE 2.4 GHz 7 dBm, 5 GHz 6 dBm; FCC 2.4 GHz 4 dBm, 5 GHz 4 dBm; Adjustable increments 1 dBm
• Management: Omada App, Restore & Backup, Firmware Update via Web, NTP, Centralized Management via Omada Hardware/Software/Cloud-Based Controllers, Cloud Access, Email Alerts, LED Control, MAC Access Control, SNMP v1/v2c/v3, SSH, Web-based Management
• Certification: CE, FCC, RoHS
• Package Contents: EAP603-Outdoor, Passive PoE Adapter, Power Cord, Installation Guide, Mounting Kit, Waterproof Kit
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
• Environment: Operating Temperature -30–70 °C (-22–158 °F), Storage Temperature -40–70 °C (-40–158 °F), Operating Humidity 10–90% RH non-condensing, Storage Humidity 5–90% RH non-condensing
