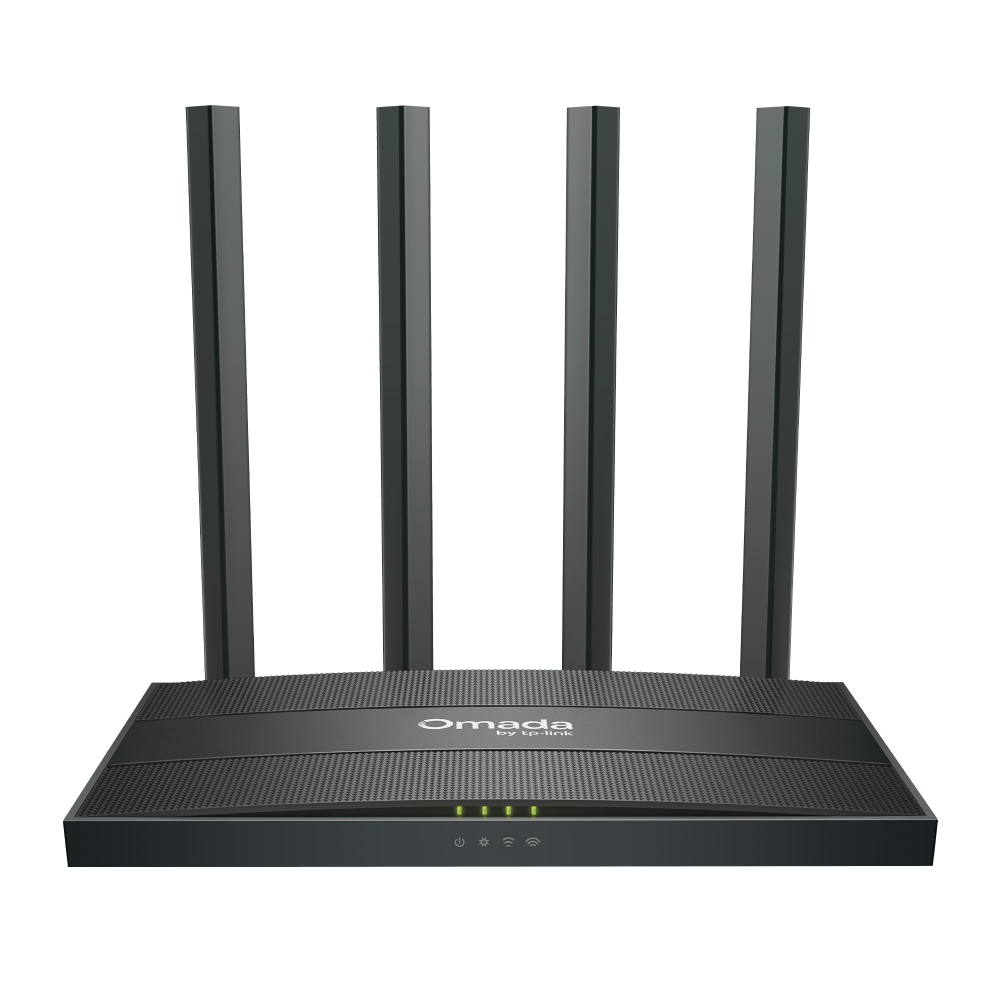

TP-Link Omada AC1200 Gigabit Wi-Fi Gateway (TL-ER605W)

The TP-Link Omada AC1200 Gigabit Wi-Fi Gateway (TL-ER605W) (ER605W) delivers high-speed dual-band Wi-Fi combined with advanced security and versatile VPN support for small to medium-sized businesses. Featuring AC1200 speeds with 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, the device ensures fast and reliable wireless connections. With five gigabit Ethernet ports, load balancing across up to three WAN connections, and centralized cloud management via the Omada app or web interface, the ER605W provides both performance and convenience. Robust security features, including IPSec, PPTP, L2TP, OpenVPN, WireGuard, DoS defense, and IP/MAC/URL filtering, protect network integrity while advanced routing, VLAN, and VPN options give administrators full control over network traffic.

Product Features

Dual-Band AC1200 Wi-Fi

Supports simultaneous 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) networks for fast wireless performance.

Gigabit Connectivity

Includes 5× Gigabit Ethernet ports to ensure high-speed wired connections and optimized LAN/WAN performance.

High-Gain External Antennas

Four high-gain external antennas boost Wi-Fi coverage and signal stability across large spaces.

Load Balancing and WAN Failover

Intelligent load balancing supports up to 3 WAN ports with failover to ensure uninterrupted internet connectivity.

Comprehensive VPN Support

Supports IPSec, PPTP, L2TP, OpenVPN, WireGuard, and GRE VPNs for secure remote access and encrypted communications.

Robust Security Features

Provides DoS defense, TCP/UDP/ICMP flood protection, IP/MAC/URL filtering, ARP inspection, and advanced authentication options.

Centralized Management

Manage devices centrally via the Omada app, web interface, or hardware/software controllers for easy deployment and monitoring.

Advanced Routing and VLAN

Supports static routing, policy routing, RIP, OSPF, VLAN 802.1Q, IGMP proxy, and custom IPTV modes for network flexibility.

Quality of Service and Traffic Control

IP-based bandwidth control, session limits, and intelligent load balancing optimize performance for critical applications.

Multiple SSIDs and Wireless Management

Supports up to 16 SSIDs, band steering, MAC authentication, wireless scheduling, transmit power control, and rate limiting per client or SSID.

Product Specifications

• Wi-Fi Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Wi-Fi Speeds: 2.4 GHz – 300 Mbps, 5 GHz – 867 Mbps
• Ethernet Ports: 1× Gigabit WAN, 2× Gigabit WAN/LAN, 2× Gigabit LAN
• Antennas: 4× 5 dBi external (2.4 GHz ×2, 5 GHz ×2, non-detachable)
• VPN: IPSec (6 tunnels), PPTP, L2TP, OpenVPN (18 tunnels), WireGuard, GRE
• Security: DoS Defense, TCP/UDP/ICMP Flood Protection, IP/MAC/URL Filtering, ARP Inspection, Firewall
• Management: Omada App, Web GUI, Hardware/Software Controller, Dynamic DNS, Remote Management, Syslog, Diagnostics, Reboot Schedule, Captive Portal
• WAN Connection Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
• QoS: IP-Based Bandwidth Control, Session Limit, Rate Limit per SSID/Client
• Advanced Features: VLAN 802.1Q, IGMP Proxy, mDNS Repeater, Policy Routing, Load Balance, NAT (One-to-One, Multi-Net), ALG Support
• Flash/Memory: 128 MB NAND Flash, 256 MB DDR3 DRAM
• LEDs: Power, SYS, 2.4G, 5G, WAN, WAN/LAN, LAN link/activity
• Buttons: Reset
• Dimensions: 215 × 117 × 31 mm (8.5 × 4.6 × 1.2 in)
• Mounting: Desktop/Wall
• Power: 12V DC / 1A, Max Power Consumption: EU 9W / US 10.3W
• Performance: NAT throughput up to 938 Mbps, concurrent sessions 50,000, VPN throughput varies by protocol
• Certifications: CE, FCC, RoHS
• Package Contents: ER605W, Power Adapter, Ethernet Cable, Quick Installation Guide
• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, MAC OS, NetWare, UNIX, Linux
• Environment: Operating Temperature 0–40°C, Storage Temperature -40–70°C; Operating Humidity 10–90%, Storage Humidity 5–90%
