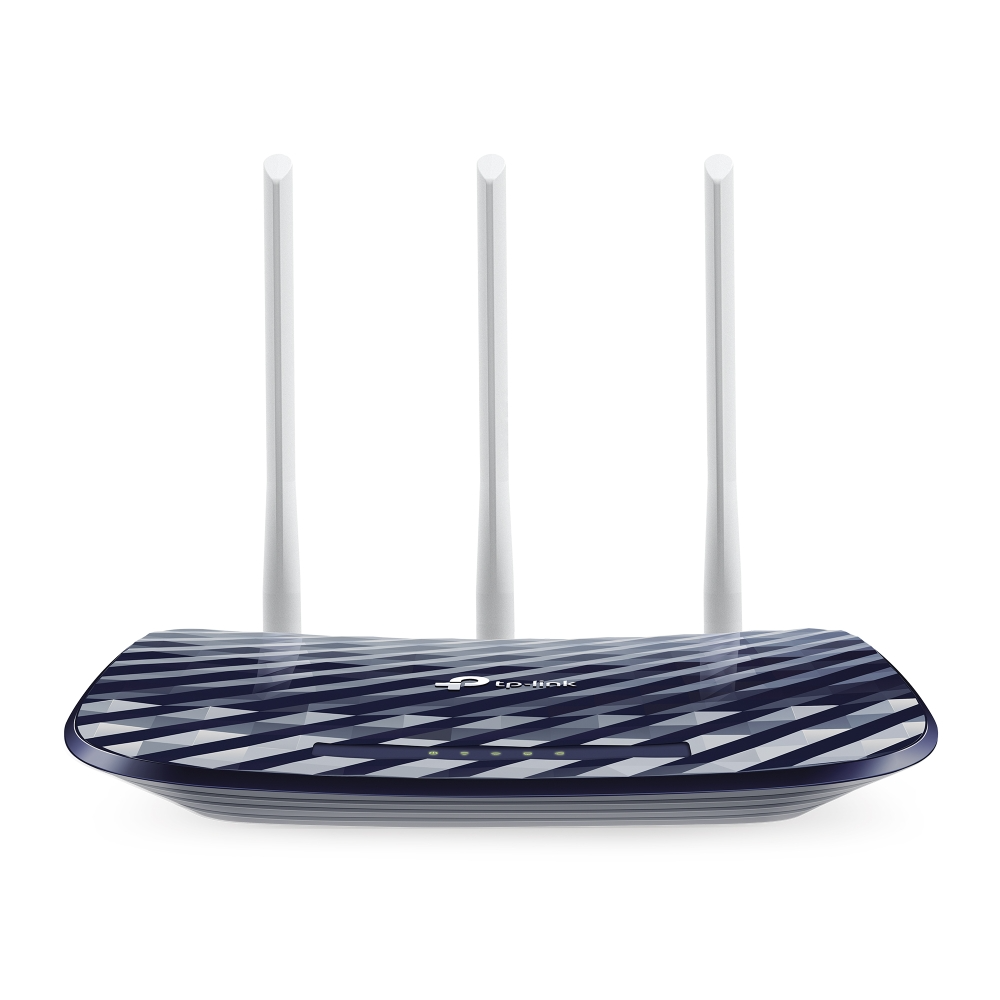

TP-Link AC750 Wireless Dual Band Router (ARCHER C20)

The TP-Link AC750 Wireless Dual Band Router (ARCHER C20) delivers fast, reliable Wi-Fi coverage for medium-sized homes, supporting seamless streaming, gaming, and browsing across multiple devices. With dual-band connectivity reaching speeds up to 733 Mbps, three external antennas for superior coverage, and versatile operation modes, this router ensures a stable, high-performance network. Advanced security protocols like WPA3, parental controls, and guest network functionality make it ideal for households seeking both speed and safety.

Product Features

High-Speed Wi-Fi

Simultaneously supports 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz, providing a total bandwidth of 733 Mbps to handle multiple devices efficiently.

Far-Reaching Coverage

Three external antennas provide an omnidirectional signal for stable connections across larger areas, minimizing dead zones in your home.

Multi-Mode 3 in 1

Functions as a Router, Access Point, or Range Extender, allowing flexible deployment based on network requirements.

Seamless Whole Home Mesh Wi-Fi

Compatible with EasyMesh routers and range extenders to form a unified network, ensuring smooth transitions without drops or lag when moving between signals.

Cloud Service

Manage and control the router remotely via TP-Link’s cloud platform, offering convenience and accessibility from anywhere.

WPA3 Security

Supports the latest WPA3 encryption standard, improving cybersecurity for personal networks and protecting against unauthorized access.

IPTV Support

Optimized for HD streaming, supporting IGMP Proxy, IGMP Snooping, Bridge, and VLAN tagging for reliable IPTV performance.

Parental Controls

Easily manage and schedule internet access for connected devices, helping to maintain healthy digital habits.

Guest Network

Provides separate, secure access for guests without compromising the main network’s security.

Product Specifications

• Wireless Standards and Protocols: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• Wi-Fi Speeds: AC750 (5 GHz: 433 Mbps, 2.4 GHz: 300 Mbps)
• Wi-Fi Range: Suitable for 2-bedroom houses
• Antennas: 3× fixed external antennas
• Wi-Fi Capacity: Medium
• Dual-Band: Yes
• Working Modes: Router Mode, Access Point Mode, Range Extender Mode
• Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 5 GHz, 1× 2.4 GHz
• Wi-Fi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x), WPA3-Personal
• Processor: Single-Core CPU
• Ethernet Ports: 1× WAN 10/100 Mbps, 4× LAN 10/100 Mbps
• Buttons: WPS/Wi-Fi, Power On/Off, Reset
• Power: 9 V ⎓ 0.6 A
• Protocols: IPv4, IPv6
• Mesh Compatibility: EasyMesh and OneMesh support
• Parental Controls: URL filtering, time scheduling
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: Device-based QoS
• Cloud Service: OTA firmware upgrade, TP-Link ID
• NAT Forwarding: Virtual server, port forwarding, port triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping
• DHCP: Address reservation, client list, server
• DDNS: NO-IP, Comex, DynDNS
• Management: Tether App, Webpage
• Physical Dimensions: 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
• Operating Temperature: 0℃–40℃ (32℉–104℉)
• Storage Temperature: -40℃–70℃ (-40℉–158℉)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
• Certifications: FCC, CE, RoHS
• Package Contents: Wi-Fi Router Archer C20, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
