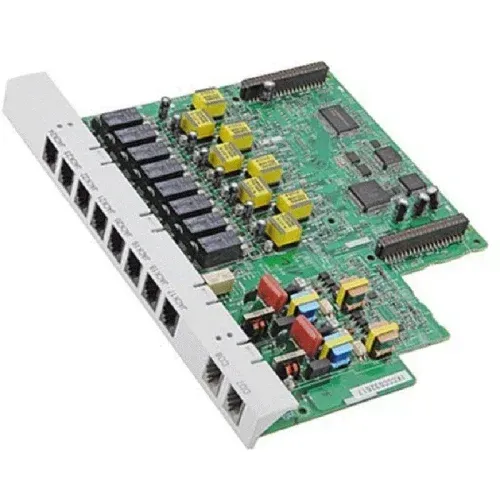

Panasonic KX-TE82480SX 2×8 Expansion Card

The Panasonic KX-TE82480SX 2×8 Expansion Card is a reliable and efficient upgrade module designed to expand the capacity of Panasonic KX-TES824 and KX-TA824 hybrid PBX systems. It adds both analog trunk lines and hybrid extension ports, allowing businesses to scale their communication infrastructure without replacing the entire system. Ideal for small to medium-sized offices, this card provides flexible connectivity for analog and proprietary telephones, ensuring seamless integration with existing telephony setups.

Product Features

Expanded Line and Extension Capacity

Adds 2 analog CO lines and 8 hybrid extension ports, enabling businesses to handle more external and internal communications.

Hybrid Connectivity Support

Supports both analog proprietary telephones and standard single-line devices such as desk phones, fax machines, and modems.

Scalable System Expansion

Allows installation of up to two cards per system, significantly increasing overall capacity for growing businesses.

Plug-and-Play Installation

Designed for easy installation into available PBX expansion slots, reducing setup time and complexity.

Caller ID Upgrade Support

Compatible with optional caller ID expansion cards, enabling enhanced call identification features when required.

Reliable PBX Integration

Fully compatible with Panasonic KX-TES824 and KX-TA824 systems, ensuring stable and efficient performance.

Product Specifications

• Model: KX-TE82480SX (2×8 Expansion Card)
• Expansion Capacity: 2 analog CO lines and 8 hybrid extension ports
• System Compatibility: Panasonic KX-TES824 and KX-TA824
• Maximum Expansion: Supports up to 2 cards per system (up to 4 additional CO lines and 16 extensions)
• Power Source: Powered directly by the PBX system
• Power Consumption: 150 mA at 24V DC
• Connectors: RJ11/RJ45 interfaces for lines and extensions
• Wiring Pinout: Pins 2 and 5 for voice; pins 3 and 4 for data (proprietary phones)
• Supported Devices: Analog proprietary telephones (APT), single line telephones (SLT), fax machines, modems
• Optional Add-On: Supports Panasonic KX-TA82493 Caller ID card
• Dimensions: Approximately 102 mm x 120 mm
• Weight: Approximately 80 g (card only)
• Operating Temperature: 0°C to 40°C
• Humidity: 10% to 90% non-condensing
• Certifications: CE and FCC compliant
• Installation: Slot-based plug-in module for PBX expansion slots
