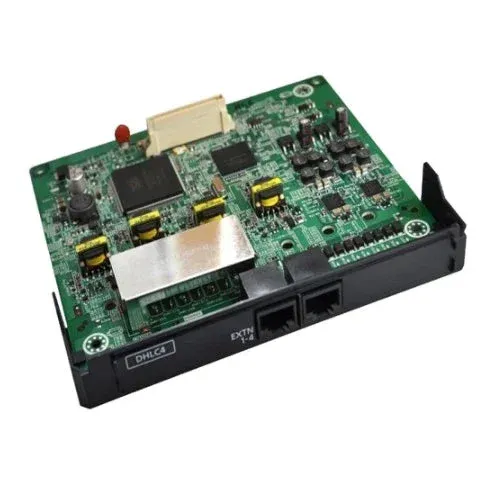

Panasonic KX-NS5170 4 Port Hybrid Extension Card (DHLC4)

The Panasonic KX-NS5170 4 Port Hybrid Extension Card (DHLC4) is a versatile expansion module designed to enhance the flexibility and capacity of Panasonic KX-NS series IP-PBX systems. Supporting both digital and analog devices on the same infrastructure, this hybrid card is ideal for businesses transitioning from legacy telephony to modern communication systems. With advanced XDP and DXDP technologies, it maximizes port usage while enabling seamless integration of multiple device types.

Product Features

Hybrid Connectivity

Supports both digital proprietary telephones and analog devices, allowing businesses to integrate modern and legacy communication equipment on a single platform.

Expanded Extension Capacity

Provides 4 hybrid ports while supporting additional devices through XDP and DXDP technologies, significantly increasing total extension capacity.

Extra Device Port Technology

Enables connection of both a digital and an analog device on a single port, optimizing hardware utilization and reducing infrastructure costs.

DECT Wireless Support

Compatible with DECT cell stations, allowing businesses to extend wireless communication coverage across their premises.

Flexible System Integration

Seamlessly integrates with Panasonic KX-NS series PBX systems, ensuring reliable performance and easy scalability.

Hot-Swappable Design

Can be installed or replaced without shutting down the PBX system, minimizing downtime and improving operational efficiency.

Low Power Consumption

Designed for efficient operation with minimal power usage, reducing overall system energy consumption.

Product Specifications

• Model: KX-NS5170 (DHLC4)
• Port Capacity: 4 hybrid ports (digital and analog support)
• Physical Interface: 2 x RJ45 connectors
• Supported Devices: SLT (single line telephone), APT (analog proprietary telephone), DPT (digital proprietary telephone), DECT wireless systems
• Maximum Extension Capacity: Up to 12 extensions per card using XDP/DXDP (8 digital and 4 analog)
• System Compatibility: Panasonic KX-NS500, KX-NS520, KX-NS700, KX-NS720
• XDP Technology: Allows analog device connection alongside digital phone on a single port
• DXDP Technology: Supports two digital devices per port
• DECT Support: Up to 8 DECT cell stations
• Digital Loop Distance: Up to 1000 meters using 24 AWG cable
• Analog Loop Limit: Up to 1200 ohms
• Caller ID Support: FSK and DTMF formats
• Power Consumption: Approximately 2.8 W maximum
• Dimensions: 105 mm x 180 mm x 30 mm
• Weight: Approximately 190 g
• Installation: Hot-swappable plug-in card for PBX expansion slots
• System Limit: Typically supports up to 2 cards per PBX system
