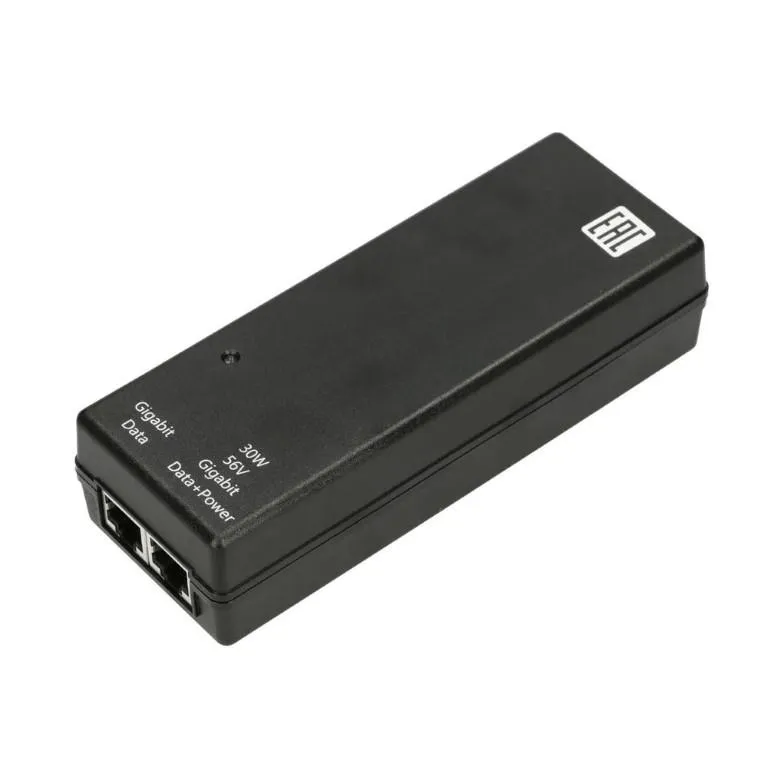

Cambium PoE 1Gbps 56VDC 30W (N000000L034B)

The Cambium Networks N000000L034B is a high-performance 56V, 30W Gigabit PoE (Power over Ethernet) injector designed to deliver both data and power through a single Ethernet cable. Engineered for reliability and efficiency, it powers Cambium radios and any IEEE 802.3af/at-compliant devices while simplifying network deployments. Compact and durable, this injector meets stringent Level VI energy efficiency standards and global regulatory requirements, making it ideal for indoor and outdoor wireless installations where consistent performance is critical.

Product Features

High-Power Output

Delivers 56VDC at 30W, providing sufficient power for high-performance Cambium radios and other IEEE-compliant devices without compromising stability.

Gigabit Data Support

Supports 1Gbps Ethernet, enabling high-bandwidth applications such as streaming, VoIP, and surveillance while maintaining reliable connectivity.

Energy Efficient

Meets Level VI energy efficiency requirements, ensuring low energy consumption and environmentally responsible operation for continuous deployments.

Surge and ESD Protection

Includes 6kV/8kV ESD contact/air protection and lightning surge safeguards (4kV common, 2kV differential) to protect network devices against power surges and electrostatic discharge.

Compact, Easy-to-Deploy Design

Small form factor measuring 140 × 53 × 35 mm (5.51 × 2.08 × 1.38 in), with a 3-wire AC inlet (IEC-60320 Type C6), suitable for installations with limited space.

Global Compliance

Carries extensive regulatory certifications, including UL/cUL, UKCA, RCM, NOM, CE/FCC, TUV/GS, and more, ensuring safe deployment worldwide.

Product Specifications

• Output Voltage: 56VDC ±5%
• Output Power: 30W
• Ethernet Speed: 1Gbps
• AC Input Voltage: 90–300 VAC
• AC Frequency Range: 47–63 Hz
• AC Input Connection: 3-wire AC inlet (IEC-60320 Type C6)
• Efficiency: Level VI Energy Efficiency
• ESD Surge Protection: 6kV/8kV contact/air (EN61000-4-2)
• Lightning Surge Protection: 4kV common, 2kV differential (EN61000-4-5)
• Hold-up Time: 10 ms at maximum load
• Operating Temperature: 0°C to +50°C
• Non-Operating Temperature: -40°C to +70°C
• Operating Humidity: 5–95% non-condensing
• Non-Operating Humidity: 0–95% non-condensing
• Operating Altitude: Up to 2,000 meters
• Physical Dimensions: 140 × 53 × 35 mm (5.51 × 2.08 × 1.38 in)
• Case Color: Black with blue DC output LED
• Compliance & Safety: UL/cUL, UKCA, RCM, NOM, MEPS, IRAM, PSB, BSMI, KC, KCC, MEPS Brazil, CCC, CE/FCC, NRCan, EAC, BIS, GEMS, PSE, S-MARK, ST, SABS(NRCS), TUV/GS 62368
