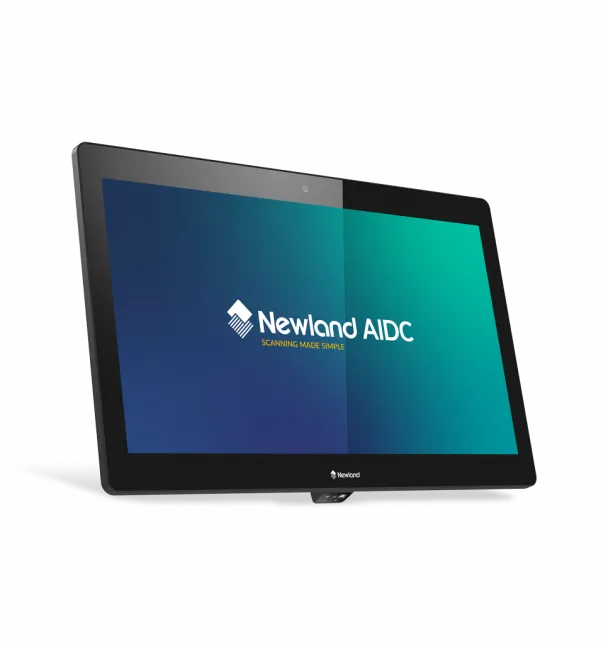

Newland NQuire 1500 Mobula II Micro Kiosk (NLS-NQUIRE1500-W4-SL)

The Newland NQuire 1500 Mobula II Micro Kiosk (NLS-NQUIRE1500-W4-SL) is a high-performance interactive kiosk designed for data-rich applications that require a large display, powerful processing, and seamless user interaction. Featuring a 15.6-inch full HD touchscreen and Android 13 operating system, it delivers a smooth and intuitive self-service experience for environments such as retail, hospitality, healthcare, warehousing, and field operations. Its combination of advanced barcode scanning, flexible connectivity, and modular expandability makes it a versatile solution for modern digital workflows.

Product Features

Large 15.6-Inch Full HD Interactive Display

The kiosk features a spacious 15.6-inch capacitive touchscreen with 1920 x 1080 resolution, providing clear visuals and responsive interaction for data entry, customer engagement, and self-service applications.

High-Performance Android 13 System

Powered by a 2.0 GHz octa-core 64-bit processor and Android 13 with GMS support, the device ensures fast performance, smooth multitasking, and compatibility with modern enterprise applications.

Advanced Megapixel Barcode Scanning

Equipped with Newland’s high-precision scanning engine, the device accurately reads both 1D and 2D barcodes, including those displayed on mobile screens, damaged labels, or low-quality prints.

Full Connectivity Suite

Supports WiFi, Ethernet, Bluetooth 5.2, and integrated 4G LTE connectivity, ensuring reliable communication in both fixed and mobile deployment environments.

Flexible Mounting and Orientation Options

Designed for both portrait and landscape installation, the kiosk supports VESA75 mounting standards, allowing flexible deployment in various commercial settings.

Modular Expansion for NFC and MSR

Optional NFC and magnetic stripe reader modules enable secure contactless identification, legacy card processing, and payment functionality for extended use cases.

Enterprise Device Management Support

Compatible with Newland Ndevor MDM software, enabling centralized device monitoring, configuration, and remote management for large-scale deployments.

Rugged and Environmentally Resistant Design

Built with IP54 front panel protection and wide operating temperature tolerance, the device is suitable for continuous use in demanding environments.

Product Specifications

• Model: NLS-NQUIRE1500-W4-SL
• Operating system: Android 13 with GMS support
• Processor: 2.0 GHz octa-core 64-bit
• Memory: 4 GB RAM, 64 GB flash storage
• Display: 15.6-inch capacitive touchscreen, 1920 x 1080 resolution, 200 nits brightness
• Dimensions: 380.5 mm (W) x 246.5 mm (D) x 33 mm (H)
• Barcode symbologies supported:
  • 1D: All major 1D barcode types including Code 39, Code 128, EAN, UPC, Codabar, ITF, MSI Plessey, and others
  • 2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec, Maxicode, and others
• Depth of field:
  • Code 39 (5 mil): 110 mm to 290 mm
  • Data Matrix (10 mil): 110 mm to 260 mm
  • EAN-13 (13 mil): 70 mm to 610 mm
  • PDF417 (6.7 mil): 110 mm to 230 mm
  • QR Code (15 mil): 55 mm to 410 mm
• Interfaces: USB-C, USB-A, Ethernet (RJ45), GPIO, MicroSD slot
• Power options: 12V / 3A adapter or Power over Ethernet (IEEE 802.3af/at)
• Wireless connectivity:
  • WiFi (2.4 GHz and 5 GHz)
  • Bluetooth 5.2
  • 4G LTE (multi-band support)
• GPS support: GPS, AGPS, GLONASS, Beidou, Galileo
• Camera: 8 MP front camera
• Audio: Speaker and microphone support
• Sensors: Gravity sensor and infrared sensor
• SIM support: Nano SIM + Nano SIM or Nano SIM + TF card
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Humidity: 5 percent to 95 percent non-condensing
• ESD protection: ±12 kV air discharge, ±6 kV direct discharge
• IP rating: IP54 (front panel only)
• NFC support (optional): 13.56 MHz RFID (ISO14443A/B, MIFARE, FeliCa, ISO15693, NFC Forum tags)
• Accessories: NFC module, MSR module, desktop stand, wall mount bracket, IO kit (optional)
• Software: Ndevor configuration and MDM platform
• Warranty: Standard 2 years (extendable up to 5 years)
• Included in box: NQuire 1500 Mobula II device, wall mount bracket, multipurpose power adapter
• Applications: Retail, hospitality, healthcare, warehousing, field service, and utilities
