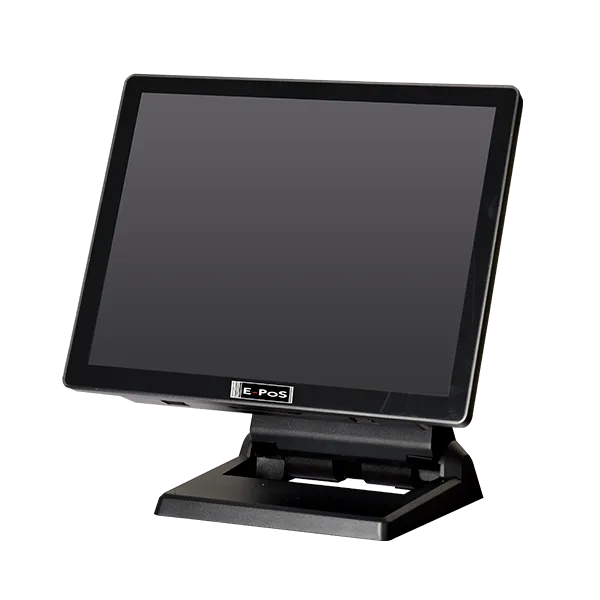

E-POS Xtreme Pro 15-Inch i5 Touch Screen POS Terminal

The E-POS Xtreme Pro 15-Inch i5 Touch Screen POS Terminal is a high-performance all-in-one point-of-sale solution designed for demanding retail and hospitality environments. Powered by an Intel Core i5-1035G1 processor, it delivers fast, reliable computing performance for transaction processing, inventory management, and business applications. Its fanless design ensures silent operation and improved durability, while the 15-inch capacitive touchscreen provides smooth and accurate interaction. Built with advanced connectivity, modular expandability, and a clean cable management system, it is ideal for high-traffic checkout environments that require speed, stability, and professional-grade performance.

Product Features

High-Performance Intel Core i5 Processing

The terminal is powered by the Intel Core i5-1035G1 processor, delivering quad-core, eight-thread performance with turbo speeds up to 3.6GHz. This ensures fast and responsive operation for intensive POS workloads and multitasking environments.

Fanless Design for Silent and Reliable Operation

The fanless architecture eliminates internal cooling fans, reducing dust intake and mechanical wear. This enhances system reliability and ensures quiet operation, making it suitable for customer-facing retail and hospitality spaces.

15-Inch Capacitive Multi-Touch Display

Featuring a 15-inch TFT LCD with projected capacitive multi-touch technology, the system provides accurate and responsive touch input. The 1024×768 resolution ensures clear visuals for POS applications and checkout workflows.

High-Speed Memory and SSD Storage

Equipped with 8GB DDR4 RAM and a 256GB M.2 SSD, the system delivers fast boot times, smooth application performance, and efficient data handling. It also supports memory expansion up to 32GB for higher workload demands.

Integrated Wireless Connectivity

Built-in Wi-Fi and Bluetooth support allow seamless connection to wireless peripherals such as barcode scanners, printers, and payment devices. This reduces cable clutter and improves workspace efficiency.

Clean Cable Management System

The intelligent internal cable routing system helps maintain a clean and organized checkout counter, improving workspace aesthetics and reducing cable interference.

Extensive POS Peripheral Connectivity

The terminal includes multiple USB ports, serial communication, LAN, VGA output, and audio interfaces, enabling integration with a wide range of POS peripherals including receipt printers, scanners, and customer displays.

Modular Expansion Support

The system supports optional upgrades such as magnetic stripe readers, RFID readers, fingerprint scanners, and secondary customer-facing displays, allowing businesses to customize the setup according to operational needs.

Product Specifications

• Processor: Intel Core i5-1035G1 (Quad-core, 8 threads, up to 3.6GHz)
• Graphics: Intel UHD Graphics
• Operating System: Windows 11 Pro
• Memory: DDR4 RAM
  • Standard: 8GB
  • Maximum: 32GB (single slot)
• Storage: M.2 SSD
  • Standard: 256GB
  • Options: 128GB to 512GB
• Display: 15-inch TFT LCD
• Resolution: 1024 × 768
• Brightness: 350 cd/m²
• Touch Type: Projected capacitive multi-touch (3-point support)
• Audio: Realtek ALC 662, 6-channel audio with built-in speakers
• USB Ports: 2 × USB 3.0, 4 × USB 2.0
• Serial Ports: 1 × RS232 COM port
• Video Output: 1 × VGA (secondary display support)
• Network: 1 × Gigabit LAN (1000M)
• Wireless: Wi-Fi (802.11ac), Bluetooth 4.2
• Audio I/O: Line-out and microphone input
• Power Supply: 12V / 5A external adapter
• Mounting: VESA compatible
• Operating Temperature: 0°C to 40°C
• Humidity: 0% to 95% non-condensing
• Design: Fanless thermal architecture
• Expandability: Supports MSR, RFID, fingerprint scanner, and customer displays
