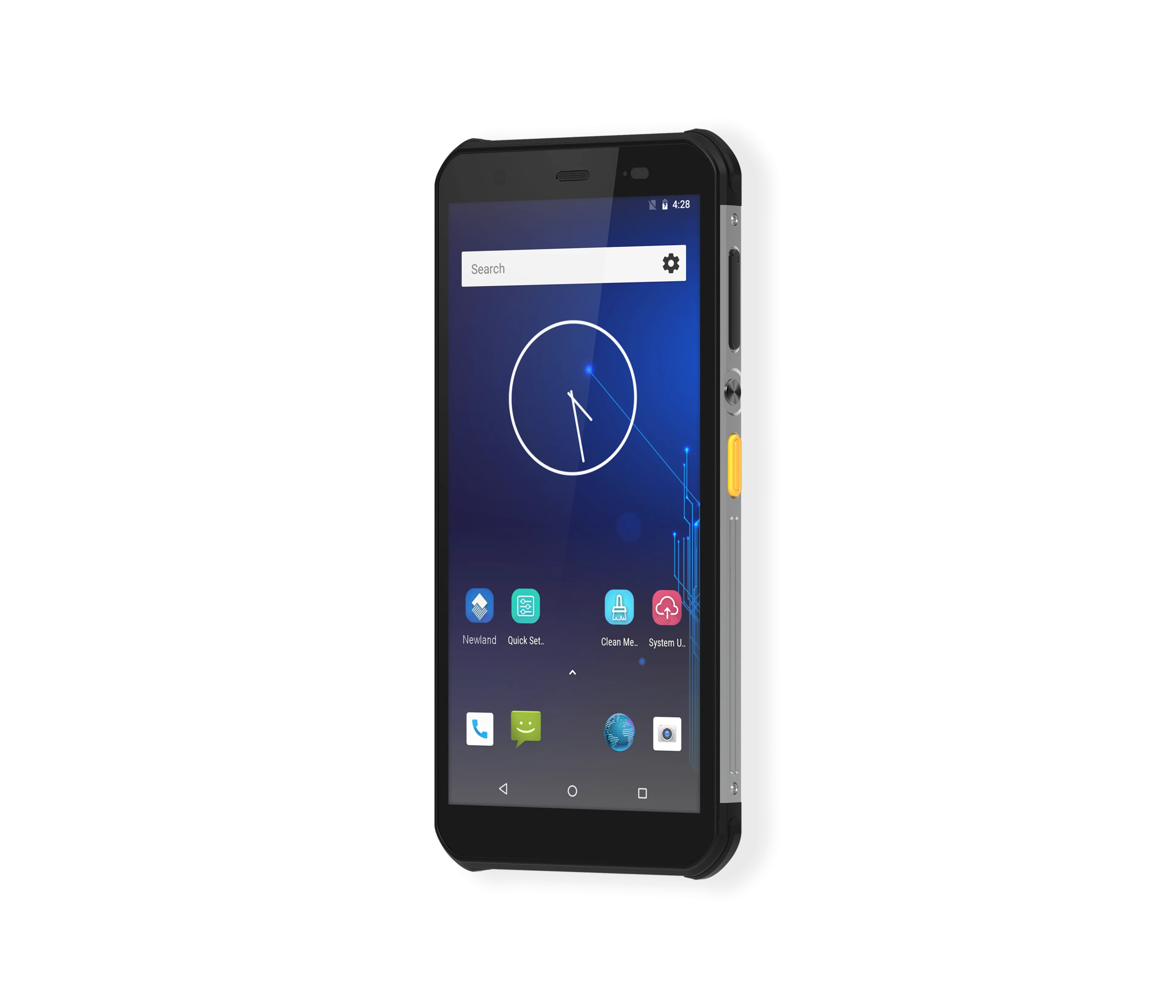

Newland NFT10 Mobile Terminal (NLS-NFT1055-W4)

The Newland NFT10 Mobile Terminal (NLS-NFT1055-W4) is a rugged enterprise handheld device designed for efficient data capture, mobile workforce management, and real-time connectivity in demanding field and industrial environments. Powered by Android 11 and a high-performance octa-core processor, it delivers smooth operation for barcode scanning, identity verification, and enterprise applications. With integrated 1D/2D scanning, NFC, fingerprint recognition, and GNSS positioning, the NFT10 provides a versatile all-in-one solution for logistics, retail, transportation, and field service operations.

Product Features

Comprehensive Multi-Function Data Capture

The device integrates 1D and 2D barcode scanning, NFC reading, fingerprint recognition, and GPS/Beidou/GLONASS positioning, enabling complete data collection from a single handheld terminal.

High-Performance Android 11 Platform

Powered by a 2.0 GHz octa-core 64-bit processor and Android 11 operating system, the device ensures smooth performance and efficient multitasking for enterprise applications.

Slim and Ergonomic Industrial Design

With a slim profile of just 12.6 mm thickness, the ergonomic design improves comfort and reduces fatigue during prolonged handheld use.

Reliable Multi-Network Connectivity

Supports dual-band WiFi (2.4 GHz and 5 GHz), Bluetooth 5.0, and full 2G/3G/4G LTE connectivity, ensuring uninterrupted communication in both indoor and outdoor environments.

Rugged IP67 Protection

Built with IP67-rated sealing and strong drop resistance, the device is resistant to dust, water immersion, and accidental impacts in harsh working conditions.

High-Accuracy Barcode Scanning

Equipped with advanced CMOS imaging technology, the terminal accurately reads a wide range of 1D and 2D barcodes, including damaged or low-contrast labels.

Integrated Security and Biometrics

Supports fingerprint recognition for secure authentication, enhancing access control and user verification capabilities.

Extended Battery Performance

A high-capacity 4800 mAh battery ensures long operational time, supporting full work shifts without frequent recharging.

Product Specifications

• Model: NLS-NFT1055-W4
• Operating system: Android 11 (64-bit)
• Processor: 2.0 GHz octa-core 64-bit
• Memory: 4 GB RAM, 64 GB ROM
• Display: 5.7-inch capacitive touchscreen, 1440 x 720 resolution, 18:9 aspect ratio
• Dimensions: 157 mm x 76.3 mm x 12.6 mm
• Weight: 231 g including battery
• Battery: 3.8 V, 4800 mAh
• Barcode symbologies supported:
  • 1D: Code 128, Code 39, Code 93, UPC/EAN, ITF variants, Codabar, MSI Plessey, RSS, ISBN, ISSN, and others
  • 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, Maxicode, DotCode, and others
• Image sensor: CMOS (≥5 mil scanning capability)
• NFC support: 13.56 MHz RFID (ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa, NFC Forum Type 1–4 tags)
• Fingerprint recognition: Supported
• Connectivity:
  • WiFi: IEEE 802.11 a/b/g/n/ac (2.4 GHz and 5 GHz)
  • Bluetooth: 5.0
  • WWAN: 2G/3G/4G LTE multi-band support
• GPS support: GPS, GLONASS, Beidou
• Expansion: MicroSD card slot (up to 128 GB)
• Cameras:
  • Rear: 13 MP autofocus with LED flash
  • Front: 2 MP fixed focus
• Sensors: Light, proximity, accelerometer, gyroscope, magnetic sensor
• Audio: Speaker, microphone, Type-C audio support, FM radio
• Interface: USB Type-C with OTG support
• Operating temperature: -20°C to 50°C
• Storage temperature: -30°C to 60°C
• Humidity: 5 percent to 95 percent non-condensing
• Drop resistance: 1.22 m (MIL-STD-810G) and 1.5 m (standard testing)
• IP rating: IP67
• ESD protection: ±12 kV air discharge, ±8 kV direct discharge
• Wireless protocols: Advanced WiFi roaming and optimization features (802.11 k/v/r support)
• Applications: Logistics, retail, transportation, warehousing, and field service operations
