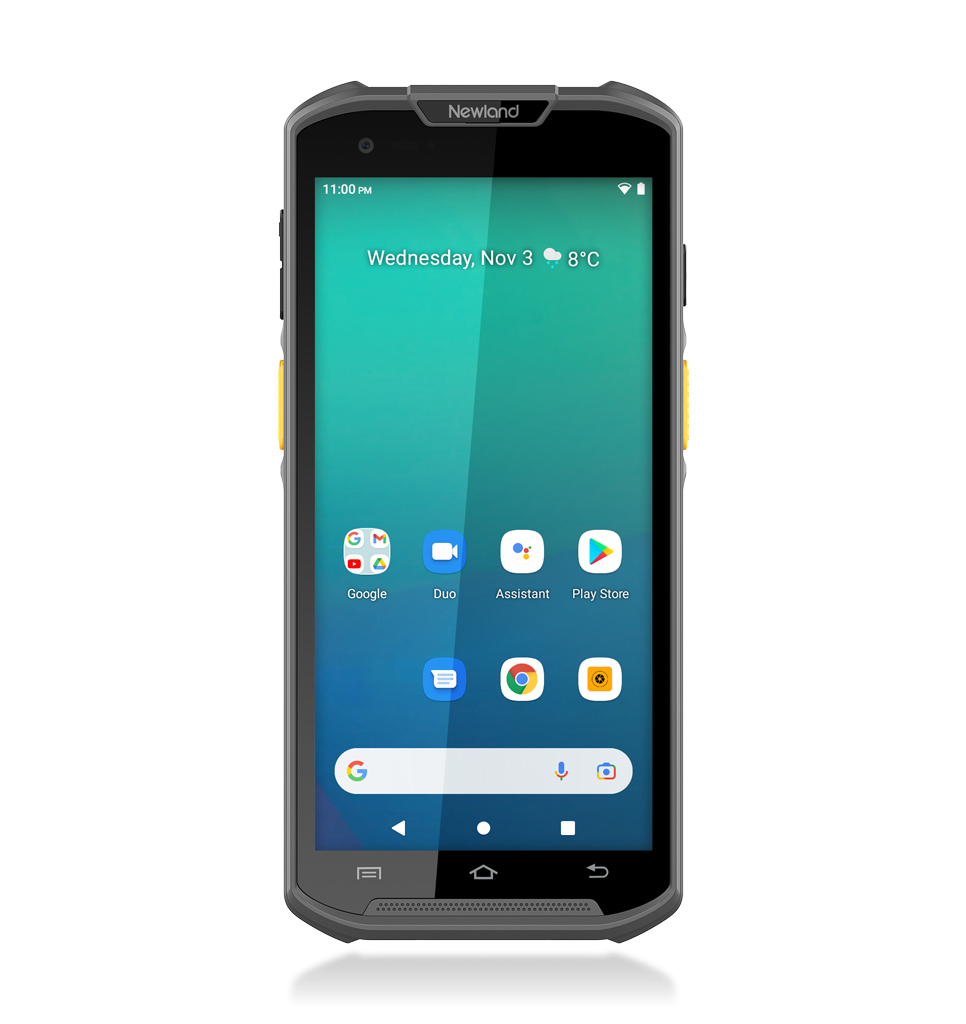

Newland MT9300 Megattera Standard (NLS-MT9300-W4-AS)

The Newland MT9300 Megattera Standard (NLS-MT9300-W4-AS) is a rugged Android mobile computer designed for high-performance data capture and efficient workflow management in retail, logistics, warehousing, and field operations. Built with an ergonomic angled scan engine and powered by a fast octa-core processor, it delivers comfortable all-day usability while maintaining fast, accurate barcode scanning. With Android 13, advanced wireless connectivity, and enterprise-grade durability, the MT93 Megattera Standard is engineered to support demanding business environments that require reliability, speed, and mobility.

Product Features

Ergonomic Angled Scan Engine for Reduced Fatigue

The thoughtfully designed angled scan engine minimizes wrist strain and improves scanning comfort during prolonged use, making it ideal for intensive daily operations.

High-Performance Android 13 Platform

Running on Android 13 with GMS support and a 2.2 GHz octa-core processor, the device delivers smooth multitasking and stable performance across enterprise applications.

Advanced Megapixel Barcode Scanning

Equipped with a 1280 x 800 CMOS sensor and laser diode aiming system, the device captures both 1D and 2D barcodes accurately, even in challenging lighting or damaged conditions.

Reliable Enterprise Connectivity

Supports WiFi 5, Bluetooth 5.2 BLE, and full 4G LTE connectivity, ensuring consistent and secure communication across indoor and outdoor environments.

Rugged Industrial Design

Built to withstand harsh environments with IP65 protection, 1.5-meter drop resistance, and wide operating temperature tolerance, ensuring durability in field and warehouse operations.

High-Capacity Removable Battery

A 5000 mAh removable battery provides extended usage throughout long shifts, reducing downtime and improving operational efficiency.

Advanced Data Capture Capabilities

Supports a wide range of barcode symbologies, including high-density 1D and 2D codes, ensuring compatibility with modern inventory and tracking systems.

Product Specifications

• Model: NLS-MT9300-W4-AS
• Operating system: Android 13 with GMS support
• Processor: 2.2 GHz octa-core 64-bit (MT8781)
• Memory: 4 GB RAM, 64 GB flash storage
• Display: 5.5-inch capacitive touchscreen, 1440 x 720 resolution, 380 nits brightness, hardened glass
• Dimensions: 159 mm (W) x 74 mm (D) x 15.9 mm (H)
• Weight: 277 g including battery
• Battery: 3.85 V, 5000 mAh removable
• Barcode symbologies supported:
  • 1D: Code 128, Code 39, Code 93, UPC/EAN, Codabar, ITF, MSI Plessey, GS1 Databar, and others
  • 2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec, and others
• Image sensor: 1280 x 800 CMOS
• Aiming system: Laser diode
• Illumination: White LED (625 ±10 nm)
• Scan rate: 60 frames per second
• Depth of field:
  • Code 39 (5 mil): 110 mm to 290 mm
  • Data Matrix (10 mil): 110 mm to 260 mm
  • EAN-13 (13 mil): 70 mm to 610 mm
  • PDF417 (6.7 mil): 110 mm to 230 mm
  • QR Code (15 mil): 55 mm to 410 mm
• Connectivity: USB-C, WiFi 5 (2.4 GHz and 5 GHz), Bluetooth 5.2 BLE, 4G LTE
• SIM support: Nano SIM + Nano SIM or Nano SIM + TF card
• Expansion: MicroSD card support up to 256 GB
• Cameras:
  • Rear: 13 MP with autofocus and LED flash
  • Front: 5 MP
• Sensors: Gravity sensor, electronic compass, light sensor, proximity sensor, gyroscope
• Audio: Dual microphones with noise reduction, speaker, vibration alerts
• Buttons: Physical scan keys, volume keys, power key, virtual navigation keys
• Power input: AC 100–240 V, fast charging support (18 W)
• Output: DC 5 V / 7 V / 9 V, 2 A
• NFC support: 13.56 MHz RFID (ISO14443A/B, MIFARE, FeliCa, ISO15693, NFC Forum tags)
• GPS: GPS, AGPS, GLONASS
• Drop resistance: 1.5 meters
• IP rating: IP65
• ESD protection: ±8 kV direct discharge, ±15 kV air discharge
• Operating temperature: -20°C to 55°C
• Storage temperature: -40°C to 70°C
• Humidity: 5 percent to 95 percent non-condensing
• Software tools: Ndevor configuration and MDM platform
• Applications: Retail, hospitality, transportation, logistics, warehousing, and distribution environments
