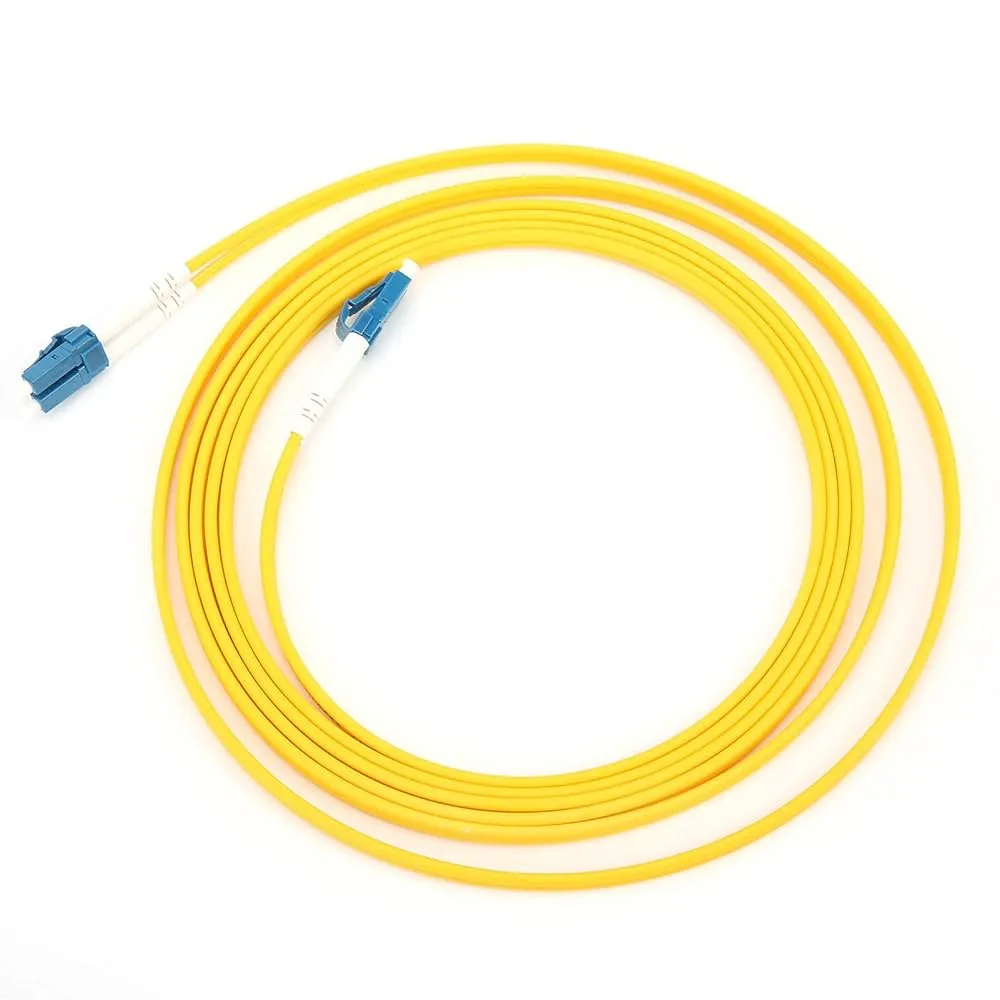

Lightwave 3-Meter Single-Mode Duplex Fiber Patch Cord LC UPC to LC UPC (LW-PC-LCU-LCU-DX-SM-3M)

The Lightwave LW-PC-LCU-LCU-DX-SM-3M is a high-performance 3-meter duplex single-mode fiber patch cord engineered for reliable, high-speed data transmission in data centers, telecommunications networks, and enterprise environments. Designed with LC/UPC connectors and OS2 single-mode fiber, it delivers low insertion loss, high return loss, and excellent signal integrity over long distances. Its LSZH jacket ensures safe indoor use, while the bend-insensitive design allows flexible routing in high-density installations, making it ideal for connecting switches, transceivers, and patch panels.

Product Features

High-Precision LC/UPC Connectors

Ultra Physical Contact connectors reduce back reflection and maintain stable, low-loss signal transmission.

Duplex Single-Mode Fiber

Dual-fiber configuration supports simultaneous bidirectional communication, ideal for high-bandwidth network applications.

Optimized for Long-Distance Performance

OS2 single-mode fiber ensures efficient transmission at 1310 nm and 1550 nm wavelengths for extended network reach.

LSZH Safety Jacket

Flame-retardant Low Smoke Zero Halogen jacket provides enhanced safety in enclosed environments such as offices and data centers.

Flexible and Durable Design

Bend-insensitive construction with zirconia ceramic ferrules ensures consistent performance, durability, and easy routing in tight spaces.

Product Specifications

• Model: LW-PC-LCU-LCU-DX-SM-3M
• Connector Type: LC/UPC to LC/UPC
• Fiber Type: OS2 Single-mode (9/125 µm)
• Cable Length: 3 meters
• Cable Construction: Duplex (DX)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm or 3.0 mm duplex zipcord
• Insertion Loss: ≤0.3 dB (typical 0.2–0.3 dB)
• Return Loss: ≥50 dB
• Operating Wavelengths: 1310 nm and 1550 nm
• Attenuation: ≤0.36 dB/km at 1310 nm, ≤0.22 dB/km at 1550 nm
• Transmission Distance: Up to 10 km at 1310 nm, up to 40 km at 1550 nm
• Minimum Bend Radius: 30 mm dynamic, 15 mm static
• Tensile Strength: Approximately 200 N
• Ferrule Material: Precision zirconia ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: TIA/EIA 568-C.3, ISO/IEC 11801, RoHS, IEC 60332-1-2
