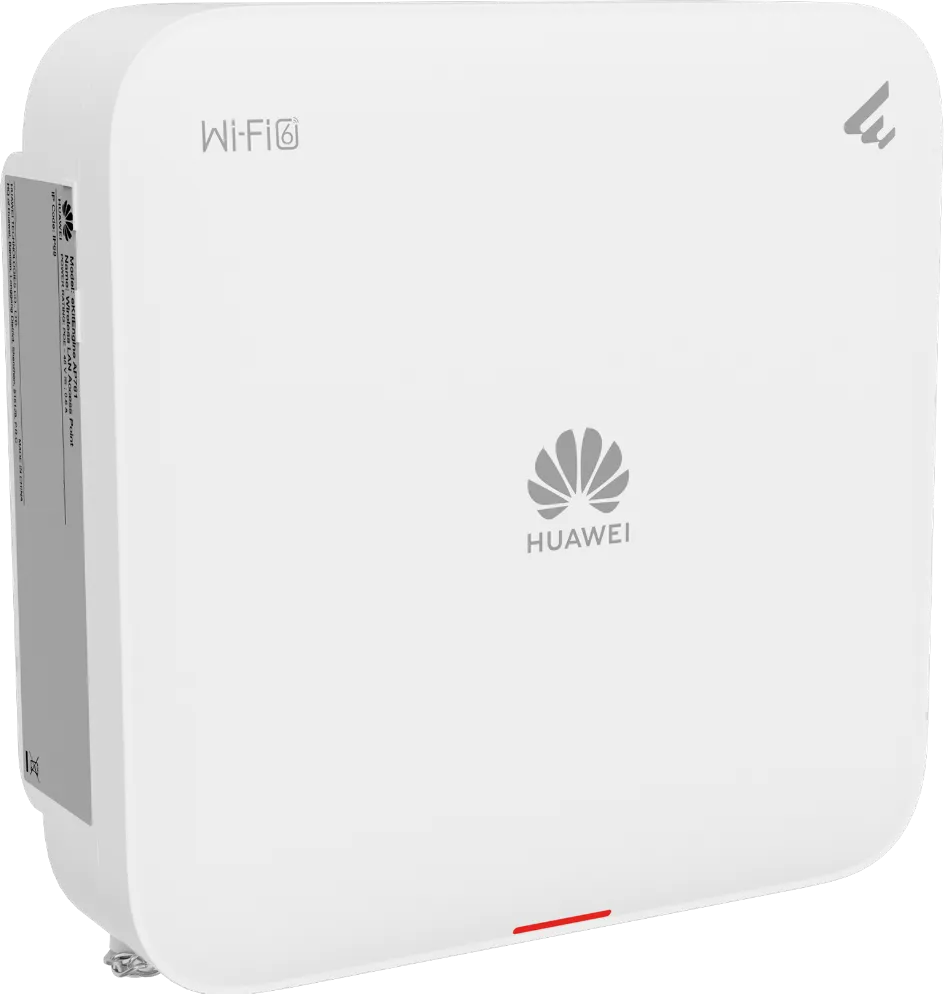

Huawei eKitEngine AP761 Access Point

The Huawei eKitEngine AP761 is a high-performance outdoor Wi-Fi 6 (802.11ax) access point engineered for high-density environments such as stadiums, parks, campuses, and large public venues. Featuring a rugged IP68-rated enclosure, the AP761 delivers reliable, high-speed connectivity even in harsh weather conditions, while supporting up to 1,024 concurrent users. With advanced MU-MIMO, OFDMA, and directional antennas, this access point ensures wide-area coverage, stable performance, and flexible deployment options for enterprise and public networks.

Product Features

Outdoor-Grade Durability

Constructed with an IP68-rated waterproof and dustproof enclosure, the AP761 operates reliably in extreme temperatures from –40°C to +65°C and withstands wind speeds up to 67 m/s.

High-Speed Wi-Fi 6 Connectivity

Supports dual-band 802.11ax operation with 2×2 MU-MIMO, delivering a combined maximum throughput of 1.775 Gbps (574 Mbps on 2.4 GHz, 1.2 Gbps on 5 GHz) for fast, stable outdoor wireless coverage.

Directional High-Gain Antennas

Equipped with built-in directional antennas (10 dBi on 2.4 GHz, 11 dBi on 5 GHz) and beamwidths optimized for wide-area coverage, providing targeted signal distribution and enhanced connectivity in crowded areas.

Massive User Capacity

Supports up to 1,024 concurrent users, making it ideal for stadiums, parks, campuses, and other high-density public environments.

Flexible Deployment and Management

Operates in multiple modes including Fat, Fit, Cloud, and Leader AP, enabling standalone operation, WLAN controller management, cloud-based control, or local AP coordination for scalable network architectures.

Multi-Interface Networking

Features one Gigabit Ethernet (PoE-In) port and one SFP optical port for fiber connections, allowing flexible backhaul options in outdoor deployments.

Advanced Wireless Technologies

Incorporates MU-MIMO and OFDMA for efficient multi-user performance, reduced latency, and improved spectrum utilization.

Integrated BLE for Location Services

Built-in Bluetooth Low Energy (BLE 5.2) enables efficient O&M, device tracking, and location-based services.

Reliable Power and Surge Protection

Supports PoE (802.3af/at) with maximum consumption of 17.7 W and 6 kA surge protection for Ethernet ports to safeguard the device in outdoor environments.

Product Specifications

• Wi-Fi Standard: 802.11ax (Wi-Fi 6), dual-band concurrent
• Maximum Data Rate: 574 Mbps (2.4 GHz), 1.2 Gbps (5 GHz), combined 1.775 Gbps
• MIMO: 2×2 MU-MIMO on both bands
• Antenna Type: Built-in directional antennas
• Antenna Gain: 10 dBi (2.4 GHz), 11 dBi (5 GHz)
• Beamwidth: 2.4 GHz: 65° horizontal / 40° vertical; 5 GHz: 65° horizontal / 20° vertical
• Maximum Transmit Power: 28 dBm (2.4 GHz), 27 dBm (5 GHz)
• Ports: 1 x GE RJ45 (10/100/1000 Mbps, PoE-In), 1 x GE SFP optical port
• Power Supply: 802.3af/at PoE
• Maximum Power Consumption: 17.7 W
• Storage: 512 MB NAND Flash
• Dimensions: 200 mm x 200 mm x 69 mm
• Weight: ~1.91 kg
• Operating Temperature: –40°C to +65°C
• Wind Resistance: Up to 67 m/s
• Surge Protection: 6 kA common mode for Ethernet ports
• Ingress Protection: IP68 (dustproof and waterproof)
• User Capacity: Up to 1,024 concurrent users
• Management Modes: Fat, Fit, Cloud, Leader AP
• Bluetooth: Built-in BLE 5.2 for O&M and location services
