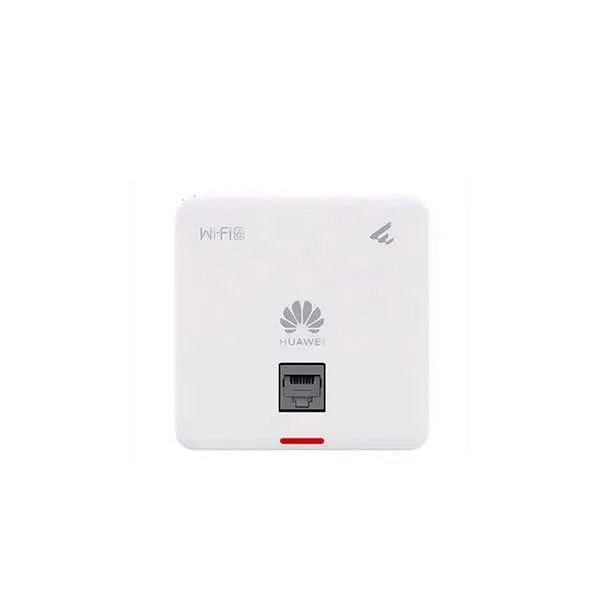

Huawei eKitEngine AP160 Access Point

The Huawei eKitEngine AP160 Access Point is a compact, high-performance Wi-Fi 6 wall plate access point designed for modern indoor environments such as hotels, offices, and residential buildings. Engineered to fit seamlessly into standard junction boxes, this ultra-thin access point delivers reliable dual-band wireless connectivity, intelligent signal optimization, and enterprise-grade security. With support for high user density, advanced wireless technologies, and cloud-based management, the AP160 offers a cost-effective and scalable networking solution for businesses seeking efficient and discreet deployments.

Product Features

Wi-Fi 6 High-Speed Connectivity

Built on the 802.11ax standard, the AP160 delivers a combined data rate of up to 1.775 Gbps, ensuring faster speeds, improved efficiency, and better performance in high-density environments.

Dual-Band 2×2 MU-MIMO Technology

Supports simultaneous 2.4 GHz and 5 GHz operation with 2×2 MU-MIMO on both bands, enabling efficient multi-user communication and reduced network congestion.

Smart Antenna Optimization

Equipped with built-in smart antennas that dynamically adjust signal direction and strength to enhance coverage, reduce interference, and improve overall wireless performance.

Compact Wall Plate Design

Features an ultra-thin 8 mm panel that fits standard 86 mm x 86 mm junction boxes, providing a clean, discreet installation ideal for hospitality and office environments.

Advanced Wireless Efficiency Technologies

Incorporates OFDMA and MU-MIMO to improve spectrum utilization and reduce latency, ensuring stable performance even with multiple connected devices.

Intelligent Band Steering

5 GHz prioritization automatically directs compatible devices to the faster band, optimizing network speed and user experience.

Enterprise-Grade Security

Supports WPA3, 802.1X authentication, MAC address authentication, and portal authentication, along with DTLS encryption for secure management communication.

Flexible Deployment and Cloud Management

Operates in Fat, Fit, or cloud modes and integrates with Huawei cloud platforms and mobile app tools for simplified deployment and remote management.

High User Capacity

Supports up to 128 concurrent users, making it suitable for high-density scenarios such as hotels and enterprise offices.

Durable and Heat-Resistant Design

Constructed with flame-retardant materials and designed for efficient heat dissipation, ensuring long-term reliability and safe operation.

Product Specifications

• Wi-Fi Standard: 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
• Maximum Data Rate: 1.775 Gbps (575 Mbps at 2.4 GHz, 1.2 Gbps at 5 GHz)
• Frequency Bands: 2.4 GHz and 5 GHz
• MIMO Technology: 2×2 MU-MIMO (both bands)
• Ethernet Ports:1 x GE uplink (10/100/1000 Mbps, PoE in), 1 x GE downlink (10/100/1000 Mbps)
• Antenna Type: Built-in smart antennas
• Antenna Gain:
  • 2.4 GHz: 3 dBi per chain, 3 dBi combined
  • 5 GHz: 2 dBi per chain, 1 dBi combined
• Maximum Transmit Power: 20 dBm (combined)
• User Capacity: Up to 128 concurrent users (48 recommended for optimal performance)
• Storage: 256 MB NAND Flash
• Power Supply: IEEE 802.3af/at PoE
• Maximum Power Consumption: 9.1 W
• Dimensions: 86 mm x 86 mm x 42.5 mm (panel thickness 8 mm)
• Weight: 0.14 kg
• Operating Temperature: 0°C to 40°C
• Operating Altitude: –60 m to +5000 m
• Surge Protection: 4 kV (PoE port, common mode)
• MTBF: 446 years
• Installation Type: Wall-mounted (standard junction box compatible)
