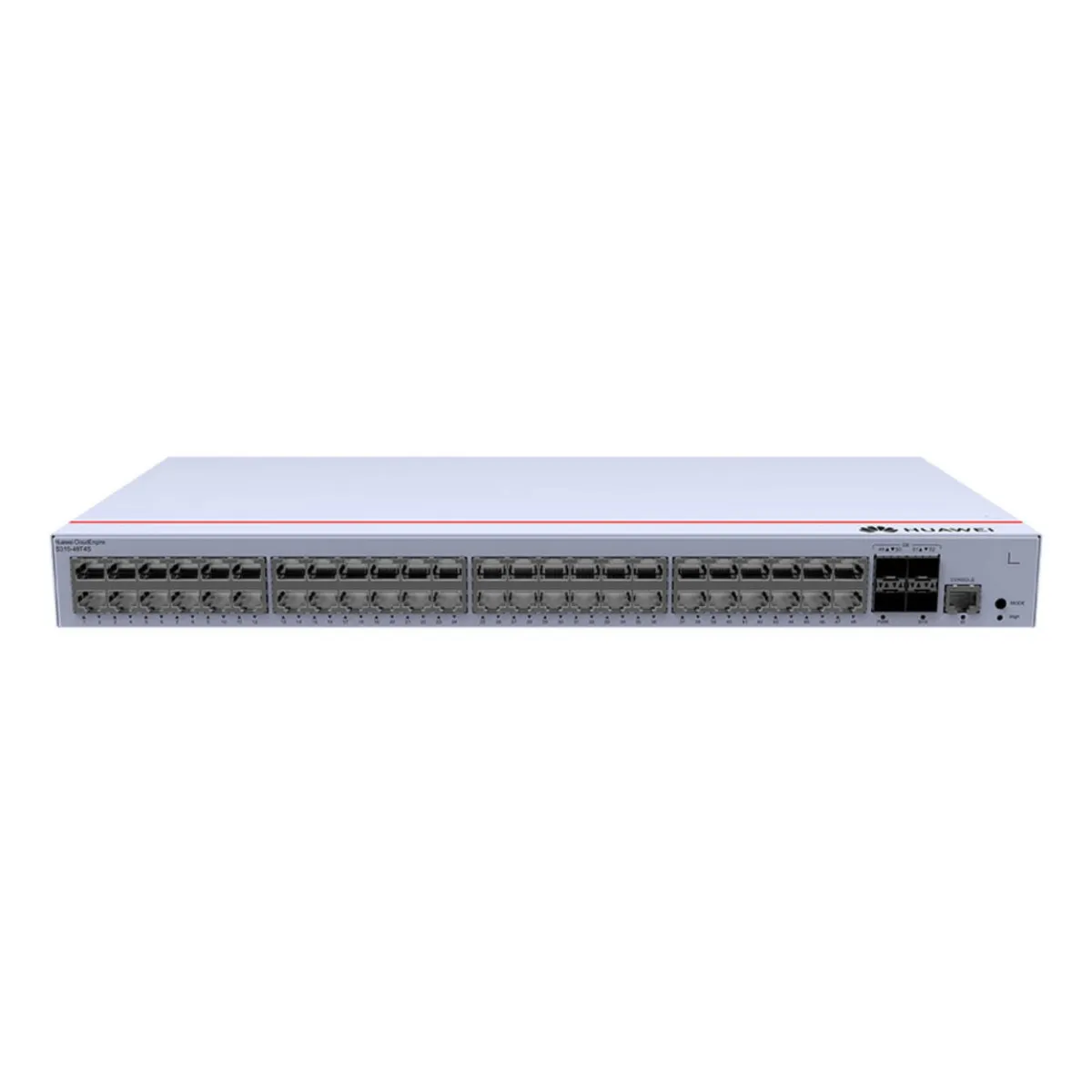

Huawei eKitEngine 48-Port Gigabit PoE+ Managed Switch (S310-48P4S)

The Huawei eKitEngine S310-48P4S is a high-capacity, fully managed network switch designed for enterprise networks requiring robust connectivity and Power over Ethernet (PoE) capabilities. Featuring 48 Gigabit Ethernet PoE+ ports with a total PoE budget of 380 W, along with 4 GE SFP uplink ports, this switch delivers high-speed data transfer and flexible network expansion. Its built-in AC power module, dual-fan cooling system, and intuitive LED indicators ensure reliable operation and easy management. Ideal for office networks, IP surveillance systems, and smart building solutions, the S310-48P4S provides stable performance, energy efficiency, and comprehensive monitoring features.

Product Features

48 PoE+ Gigabit Ports

Each of the 48 RJ45 ports supports 10/100/1000 Mbps speeds and delivers up to 30 W of PoE+ power per port, supporting IP phones, wireless access points, cameras, and other powered devices.

4 GE SFP Uplink Ports

The switch includes four 1000BASE-X SFP ports for flexible uplink connections using optical or copper modules. These ports support high-speed data transfer and stack connections for scalable network deployments.

Advanced Indicator and Button System

Power, system, PoE, MST stack, and cloud indicators provide real-time monitoring of the switch status. The MODE button allows quick toggling between PoE, stack, and default link activity views, while the RST button enables safe factory resets.

Efficient Cooling System

Two built-in fans provide forced-air cooling, with intelligent fan speed adjustment to maintain optimal operating temperature and minimize noise during normal operation.

Reliable and Energy-Efficient Design

The S310-48P4S ensures high availability with a MTBF of over 48 years, surge protection for ports and power supply, and long-term operation across wide temperature and altitude ranges.

Product Specifications

• Dimensions (H x W x D): 43.6 mm x 442.0 mm x 220.0 mm
• Chassis Height: 1 U
• Chassis Material: Metal
• Weight: 3.24 kg (without packaging), 4.29 kg (with packaging)
• Power Supply: Built-in AC, 100–240 V AC, 50/60 Hz
• Maximum Power Consumption: 63.7 W (without PoE), 462.8 W (full PoE load)
• PoE Budget: 380 W, 30 W per port
• Memory: 2 GB
• Flash Memory: 1 GB
• Console Port: RJ45
• Fans: 2 built-in, intelligent speed adjustment
• Cooling Method: Forced air cooling (left intake, right exhaust)
• Operating Temperature: -5°C to +50°C (23°F to 122°F)
• Operating Humidity: 5% RH to 95% RH, non-condensing
• Altitude Range: 0–5000 m (0–16,404 ft.)
• Ingress Protection: IP20
• Certifications: EMC, safety, manufacturing
• Noise Level: 49.3 dB(A) acoustic power
