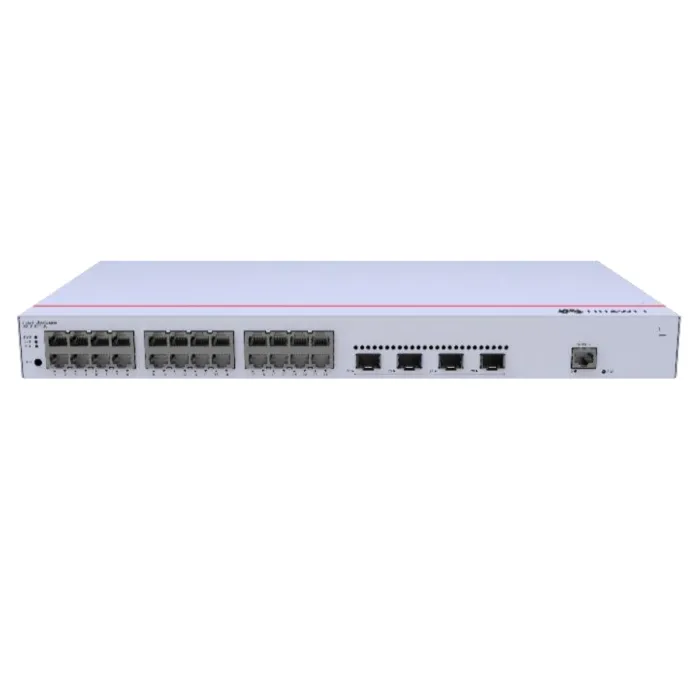

Huawei eKitEngine 24-Port Gigabit PoE+ Managed Switch (S310-24P4S)

The Huawei eKitEngine S310-24P4S is a high-performance, fully managed network switch designed for enterprise-grade networking environments. Featuring 24 PoE+ Ethernet ports and 4 GE SFP uplink ports, this switch delivers reliable, high-speed connectivity while providing up to 30 W of power per PoE port, with a total PoE budget of 400 W. Its robust metal chassis, efficient dual-fan cooling system, and comprehensive indicator and button system ensure seamless operation in demanding network deployments. The switch supports easy management, quick web-based configuration, and energy-efficient operation, making it ideal for modern office networks, surveillance systems, and smart building applications.

Product Features

24 PoE+ Gigabit Ports

Each of the 24 RJ45 ports supports 10/100/1000 Mbps speeds and delivers PoE+ power, enabling connection to a wide range of powered devices, including IP cameras, wireless access points, and VoIP phones.

4 GE SFP Uplink Ports

The four 1000BASE-X SFP ports allow flexible uplink connections using optical or copper modules, supporting high-speed data transfer and stack connections for network expansion.

Efficient Cooling System

Equipped with two built-in fans, the switch provides forced-air cooling with intelligent fan speed adjustment, maintaining optimal operating temperatures and minimizing noise under normal conditions.

User-Friendly Indicators and Buttons

Power, system, PoE, and service port indicators offer real-time status monitoring. The MODE button allows quick toggling between PoE and default link activity views, while the RST button provides safe and controlled factory resets.

High Reliability and Availability

Designed for continuous operation with a MTBF of over 60 years, the S310-24P4S ensures network reliability, with surge protection on service ports and power supply, and support for long-term operation at high temperatures and varying altitudes.

Product Specifications

• Dimensions (H x W x D): 43.6 mm x 442.0 mm x 220.0 mm
• Chassis Height: 1 U
• Chassis Material: Metal
• Weight: 2.92 kg (without packaging), 3.79 kg (with packaging)
• Power Supply: Built-in AC, 100–240 V AC, 50/60 Hz
• Maximum Power Consumption: 47.1 W (without PoE), 491.66 W (full PoE load)
• PoE Budget: 400 W, 30 W per port
• Memory: 2 GB
• Flash Memory: 1 GB
• Console Port: RJ45
• Fans: 2 built-in, intelligent speed adjustment
• Cooling Method: Forced air cooling (left/front intake, right exhaust)
• Operating Temperature: -5°C to +50°C (23°F to 122°F)
• Operating Humidity: 5% RH to 95% RH, non-condensing
• Altitude Range: 0–5000 m (0–16,404 ft.)
• Ingress Protection: IP20
• Certifications: EMC, safety, manufacturing
• Noise Level: 49.3 dB(A) acoustic power
