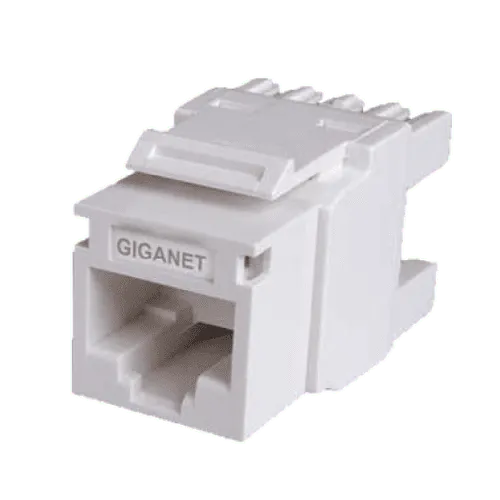

Giganet GN-C6A-FTP-KJP Cat6A FTP Keystone Jack

The Giganet GN-C6A-FTP-KJP is a high-performance Category 6A (Cat6A) shielded keystone jack designed for high-speed network environments such as data centers, server rooms, and enterprise offices. Engineered to terminate foiled twisted pair (FTP) cabling, it ensures reliable 10Gbps transmission with full protection against electromagnetic interference (EMI) and alien crosstalk (AXT). Compatible with standard keystone faceplates, patch panels, and surface mount boxes, this jack also supports Power over Ethernet (PoE/PoE+) for versatile deployment.

Product Features

10G Performance

Supports data transmission speeds up to 10Gbps with a bandwidth of 500 MHz, fully compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.

FTP Shielding

Die-cast zinc alloy housing provides 360-degree shielding against EMI and alien crosstalk, maintaining signal integrity in dense cabling environments.

Tool-less Termination

Equipped with a tool-free IDC (Insulation Displacement Connector) mechanism for quick, easy installation without specialized punch-down tools.

Universal Compatibility

Fits all standard keystone-ready faceplates, patch panels, and surface mount boxes for flexible deployment.

PoE Support

Compatible with PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt), enabling power delivery to devices such as IP cameras, access points, and VoIP phones.

Product Specifications

• Category: Cat6A (Class EA)
• Connector Type: RJ45 (8P8C)
• Wiring Schemes: T568A and T568B
• Conductor Range: 22–26 AWG solid or stranded copper
• Contacts: Phosphor bronze with 50μ” gold plating over nickel
• Mating Durability: Rated for 750 insertion cycles
• IDC Terminals: Phosphor bronze with zinc-tin plating, rated for 200 re-terminations
• Frequency Range: Up to 500 MHz for 10GBASE-T
• Shielding: Die-cast zinc alloy housing with integrated grounding
• Housing Material: Flame-retardant plastic, UL94V-0
• PoE Compatibility: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Temperature Range: -40°C to 80°C
• Compliance: ANSI/TIA-568.2-D, ISO/IEC 11801-1:2017, EN 50173-1:2018, RoHS, REACH
• Warranty: Eligible for Giganet 25-year system warranty when installed in a certified solution
• Dimensions: 25 mm x 50 mm x 35 mm
• Mounting: Standard snap-in retaining clip compatible with Giganet faceplates, shutters, and angled patch panels
