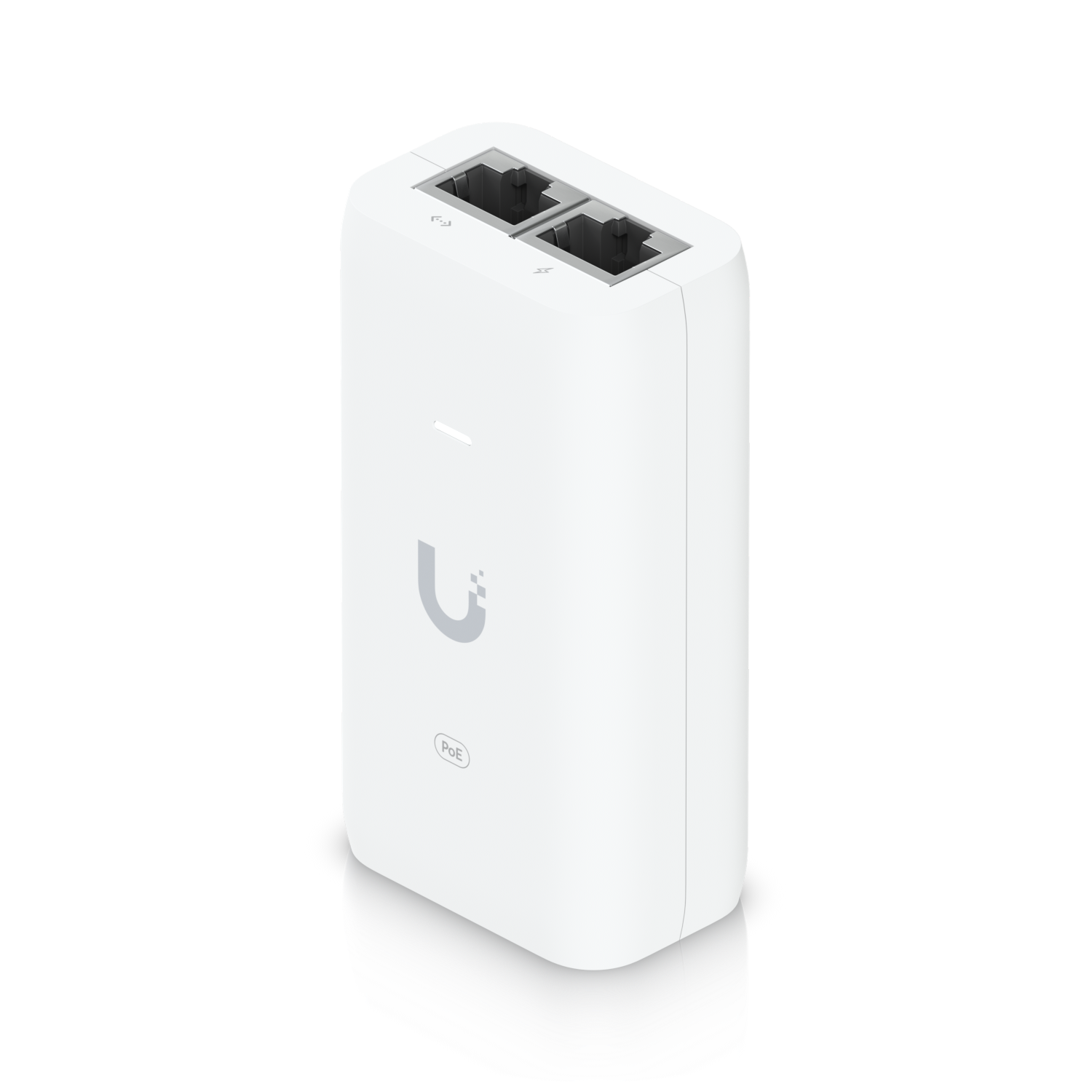

Ubiquiti PoE+ Adapter 30W (U-POE+)
The Ubiquiti PoE+ Adapter 30W (U-POE+) is a reliable Power over Ethernet solution designed to deliver both power and data through a single Ethernet cable to compatible devices such as access points, IP cameras, and other network equipment. Providing up to 30W of output power, it supports Gigabit Ethernet connectivity while maintaining high efficiency and strong surge protection. Built with advanced electrical protection features and certified safety standards, the U-POE+ is ideal for enterprise and professional networking environments that require stable, regulated power delivery.
Product Features
30W Power over Ethernet output
The adapter supplies up to 48V DC at 0.65A, delivering reliable PoE+ power to compatible devices. This enables seamless deployment of high-performance networking equipment without requiring separate power supplies.
Gigabit Ethernet support
Equipped with a Gigabit LAN port, the U-POE+ supports high-speed data transmission, ensuring full network performance for modern devices that require fast and stable connectivity.
Advanced surge protection
The adapter includes comprehensive surge protection for both power and data lines, with support for difference and common mode protection. It is engineered to handle high surge discharge levels and peak pulse currents for improved equipment safety.
High efficiency and stable performance
With up to 87% efficiency, low output ripple, and regulated line and load performance, the adapter provides consistent and reliable power delivery for connected devices.
Compact and durable design
Measuring 93 x 62 x 35 mm and weighing 156 g, the adapter features a compact form factor suitable for structured cabling installations and professional network environments.
Wide operating compatibility
The U-POE+ supports an input voltage range of 100–240V AC at 50/60Hz, making it suitable for global deployment in various electrical environments.
Enterprise-grade safety certifications
The adapter meets international safety and compliance standards, including CE, FCC, IC, UL, and CCC certifications, ensuring reliable operation in professional installations.
Product Specifications
- Model: Ubiquiti PoE+ Adapter 30W (U-POE+)
- Output Voltage: 48V DC @ 0.65A
- Maximum Output Power: 30W
- Input Voltage: 100–240V AC, 50/60Hz
- Input Current: 0.75A Max
- Efficiency: 87%
- Switching Frequency: Up to 70 kHz
- Output Ripple: ≤1%
- Line Regulation: ≤3%
- Load Regulation: ≤5%
- Inrush Current: <100A peak at 26°C
- Max Surge Discharge: 1500A (8/20 μs)
- Peak Pulse Current: 36A (10/1000 μs)
- Response Time: <1 ns
- Shunt Capacitance: <5 pF
- Surge Protection: Difference and common mode
- Power Pin Configuration: Pins 4, 5 (+) and 7, 8 (-)
- LAN Port: 1 x Gigabit Ethernet (RJ45 shielded socket)
- AC Connector: IEC-320 C6
- Dimensions: 93 x 62 x 35 mm
- Weight: 156 g
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -30°C to 70°C
- Operating Humidity: 10% to 95% non-condensing
- Certifications: CE, FCC, IC, UL, CCC
- NDAA Compliant: Yes
