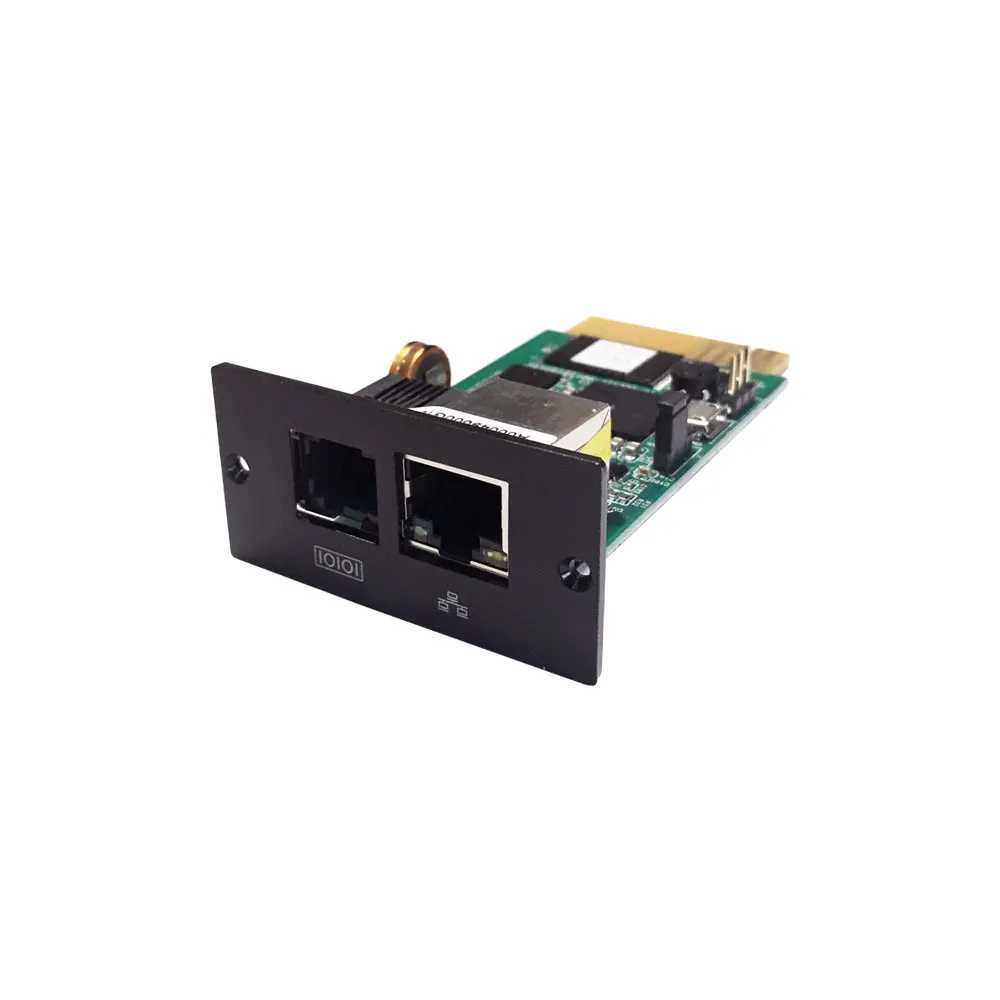

EVI SNMP Card for Online 6–10kVA Single Phase UPS (EP-UPSYACASN)

The EVI SNMP Card for Online 6–10kVA Single Phase UPS (EP-UPSYACASN) is a professional network management module designed to enable remote monitoring and control of compatible EVI online UPS systems. Installed directly into the UPS intelligent slot, this SNMP communication card connects the UPS to an IP network, allowing administrators to monitor power conditions, battery performance, and system status in real time from any location. It supports secure SNMP protocols, web based management, and automated alert notifications to ensure rapid response to power events. With advanced logging, centralized management capabilities, and support for graceful shutdown of connected servers, this card provides reliable and secure UPS monitoring for enterprise IT environments.

Product Features

Real Time Remote Monitoring

Enables administrators to remotely track UPS parameters such as input and output voltage, load levels, battery capacity, and runtime through a web based interface or network management system.

Automated Event Alerts

Sends instant email notifications and SNMP traps when critical events occur, including power failures, low battery levels, overload conditions, or system faults.

Secure Network Communication

Supports secure SNMP v1, v2c, and SNMP v3 protocols with encryption and authentication, along with HTTP and HTTPS web access for secure remote administration.

Graceful Server Shutdown

Works with network shutdown software to safely power down connected servers and workstations during extended outages, protecting critical data and preventing system corruption.

Integration with Network Management Systems

Seamlessly integrates with enterprise monitoring platforms such as Nagios, Zabbix, PRTG, and SolarWinds for centralized UPS monitoring and infrastructure management.

Web Based UPS Management

Includes a built in web server that allows administrators to monitor UPS performance, perform self tests, review logs, and configure system settings through any standard browser.

Environmental Monitoring Support

Provides connectivity for optional environmental sensors that monitor temperature and humidity conditions within server racks or equipment rooms.

Product Specifications

• Product Model: EP-UPSYACASN
• Device Type: SNMP Network Management Card for UPS
• Compatibility: Designed for EVI 6kVA to 10kVA Single Phase Online UPS systems
• Compatible UPS Models: EP-UPS6000Y11OT, EP-UPS10000Y11OT
• Installation Type: Hot pluggable internal expansion card for UPS intelligent slot
• Network Interface: RJ45 Ethernet port
• Network Speed: 10/100 Mbps auto sensing
• Supported Protocols: SNMP v1, SNMP v2c, SNMP v3, HTTP, HTTPS, IPv4, IPv6, Modbus TCP/IP
• Security Features: DES and AES encryption with SHA1 and MD5 authentication
• Event Log Storage: Up to 500 timestamped system events and more than 60000 data log entries
• Power Input: 9V – 24V DC via UPS intelligent slot
• Power Consumption: Less than 2W during operation
• Dimensions: Approximately 130 x 60 mm
• Weight: Approximately 75 g
• Operating Temperature: 0°C – 40°C standard operation, up to 60°C extended
• Environmental Monitoring: Optional temperature and humidity sensor support
• Management Software Compatibility: Network shutdown software for Windows, Linux, VMware, and Hyper V environments
• Additional Functions: Web based monitoring, UPS self test control, alarm configuration, and system diagnostics
