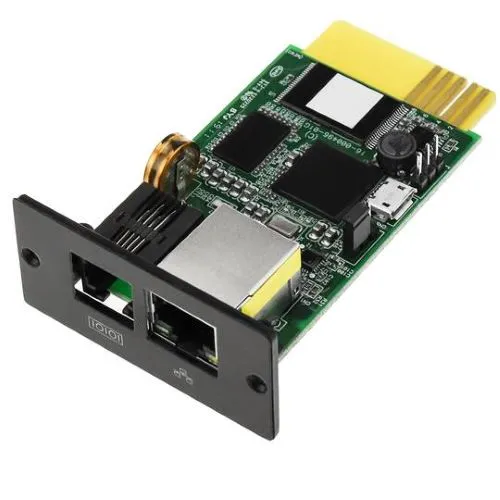

EVI SNMP Card for Online 10–40kVA 3 Phase UPS (EP-UPSY3ACASN)

The EVI SNMP Card for Online 10–40kVA 3 Phase UPS (EP-UPSY3ACASN) is an enterprise-grade network management module designed to enable secure remote monitoring and control of compatible EVI three phase online UPS systems. By integrating directly into the UPS intelligent expansion slot, this SNMP card connects the UPS to an IP network, allowing administrators to monitor real time power conditions, battery performance, and system health from any location. It supports advanced monitoring, automated alerts, and integration with enterprise network management systems, ensuring reliable oversight of mission critical power infrastructure. With strong security protocols, extensive event logging, and support for graceful shutdown of connected servers, this SNMP card enhances the management and reliability of high capacity UPS deployments.

Product Features

Real Time Three Phase Power Monitoring

Provides detailed monitoring of three phase input and output voltage, current, frequency, load levels, and battery performance through a web based interface or network management system.

Automated Alerts and Event Notifications

Sends instant SNMP traps and configurable email alerts when critical events occur, including power failures, overload conditions, bypass activation, and low battery warnings.

Secure Network Communication

Supports SNMP v1, SNMP v2c, and SNMP v3 protocols along with HTTP and HTTPS for secure remote management, including encrypted communication and authentication protection.

Integration with Enterprise Monitoring Platforms

Compatible with major Network Management Systems such as Nagios, Zabbix, PRTG, and SolarWinds, enabling centralized monitoring across enterprise IT infrastructures.

Graceful Shutdown for Connected Systems

Works with network shutdown software to automatically shut down servers, virtual machines, and workstations safely during extended power outages to prevent data loss.

Advanced Event Logging and Diagnostics

Stores thousands of timestamped system events and operational logs to help administrators analyze power conditions, troubleshoot incidents, and maintain reliable UPS operation.

Environmental Monitoring Support

Supports optional environmental sensors that monitor temperature, humidity, and cabinet conditions within server rooms or UPS installations.

Product Specifications

• Product Model: EP-UPSY3ACASN
• Device Type: SNMP Network Management Card for UPS
• Compatibility: Designed for EVI 10kVA to 40kVA Three Phase Online UPS systems
• Compatible UPS Models: EP-UPS10000Y33OT, EP-UPS20000Y33OT, EP-UPS40Y33OT
• Installation Type: Hot pluggable internal expansion card for UPS intelligent slot
• Network Interface: RJ45 Ethernet port
• Network Speed: 10/100 Mbps Ethernet (Gigabit support on newer revisions)
• Supported Protocols: SNMP v1, SNMP v2c, SNMP v3, HTTP, HTTPS, IPv4, IPv6, Modbus TCP
• Security Features: TLS encryption, password protection, SNMPv3 authentication and encryption, support for RADIUS and LDAP authentication
• IP Configuration: DHCP automatic addressing or static IP configuration
• Event Log Storage: More than 5000 timestamped system events
• Power Consumption: Less than 2W during operation
• Dimensions: Approximately 90 x 140 x 28 mm or compact 60 x 100 mm variant
• Operating Temperature: 0°C to 50°C
• Operating Humidity: Up to 95 percent non condensing
• Monitoring Capabilities: Per phase voltage, current, frequency, power factor, kW, kVA, load levels, and battery runtime
• Management Software Compatibility: Network shutdown software for Windows, Linux, VMware, and Hyper V environments
• Environmental Monitoring: Optional temperature and humidity sensor support
• Parallel System Monitoring: Supports monitoring of N+X parallel UPS configurations
