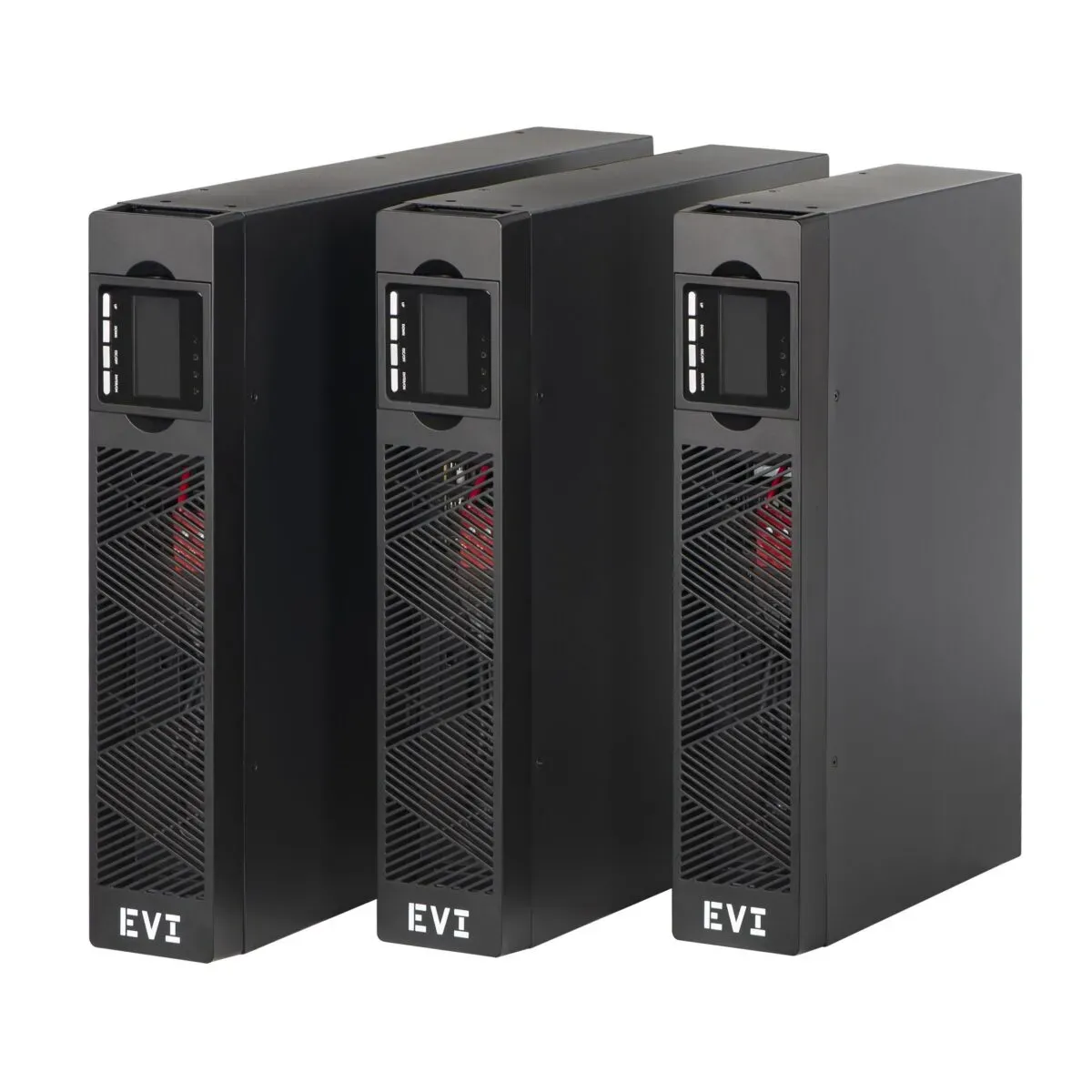

EVI 2000VA / 1800W Rack Mount Online Single Phase UPS (EP-UPS2000UC13OR)

The EVI 2000VA / 1800W Rack Mount Online Single Phase UPS (EP-UPS2000UC13OR) is a professional-grade power protection solution designed for mission-critical IT infrastructure, including servers, networking equipment, and data center environments. Built with true online double conversion technology, this UPS provides a pure sine wave output and zero transfer time to ensure uninterrupted power for sensitive systems. Its 2U rack-mount form factor with a rotatable LCD display allows flexible installation in both rack and tower setups. With advanced battery management, high power efficiency, and remote monitoring capabilities, this UPS delivers reliable and continuous power protection for demanding enterprise environments.

Product Features

True Online Double Conversion Technology

Provides continuous clean power by converting incoming AC power to DC and back to AC, delivering a stable pure sine wave output with zero transfer time during power interruptions.

Rotatable LCD Display

The integrated LCD display rotates to match rack or tower orientation and provides real-time information on voltage levels, load percentage, battery status, and system alerts.

Advanced Battery Management

Supports both sealed lead-acid and lithium battery configurations with intelligent charging systems that extend battery life and protect against overcharge and deep discharge.

Flexible Connectivity and Remote Monitoring

Includes USB and RS232 communication ports and supports an optional SNMP card for remote monitoring, network management, and automated system shutdown.

Energy Efficient ECO Mode

Reduces energy consumption by operating in a high-efficiency mode when utility power conditions are stable while maintaining reliable protection.

Emergency Power Off and Load Segmentation

Features an Emergency Power Off (EPO) port for immediate shutdown during emergencies and supports low priority load disconnection to preserve battery power for critical systems.

Product Specifications

• Capacity: 2000VA / 1800W
• Power Factor: 1.0
• Topology: Online Double Conversion
• Input Voltage Range: 110V – 300V AC
• Input Frequency: 40Hz – 70Hz auto-sensing
• Input Power Factor: ≥ 0.99 at nominal voltage (100% load)
• Output Voltage: Selectable 200V / 208V / 220V / 230V / 240V AC
• Voltage Regulation: ±1% in battery mode
• Output Waveform: Pure sine wave with crest factor 3:1
• Transfer Time: 0 ms (AC to battery)
• Output Connections: 8 × IEC C13 outlets
• Battery Configuration: 4 × 12V 9Ah Sealed Lead-Acid (SLA/VRLA) batteries
• Battery Type Support: Sealed Lead-Acid or Lithium with BMS integration
• Hot-Swappable Batteries: Yes
• Charging Current: Selectable 1A or 2A
• Recharge Time: Approximately 4 hours to reach 90% capacity
• Form Factor: 2U Rack Mount with rotatable LCD display
• Dimensions: 440 x 460 x 86.5 mm
• Weight: Approximately 19.1 kg
• Noise Level: <50 dB during operation
• Operating Temperature: 0°C to 40°C
• Humidity Range: 0% – 90% non-condensing
• Communication Ports: USB, RS232, and smart slot for optional SNMP card
• Additional Features: Emergency Power Off (EPO), low priority load disconnection, intelligent battery protection systems
