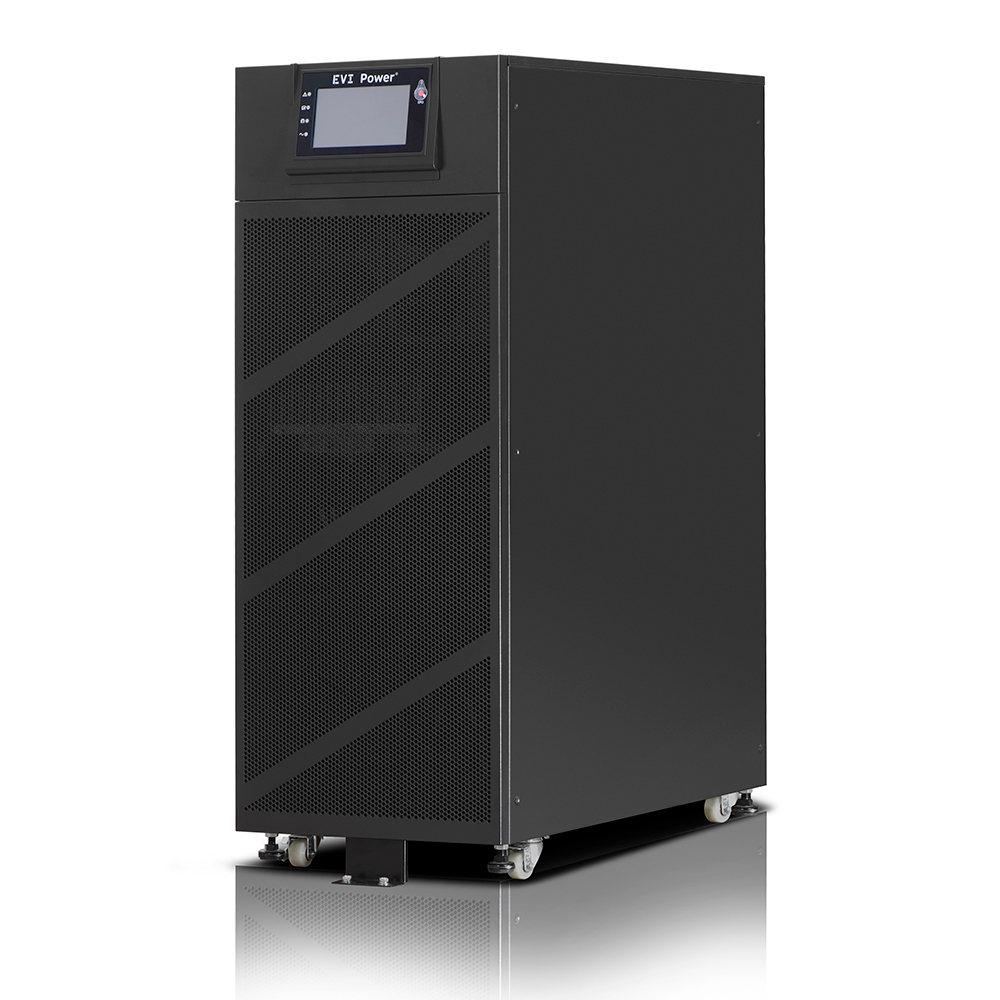

EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT)

The EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) is an enterprise-grade power protection solution designed for mission-critical IT systems, telecommunications infrastructure, and industrial equipment. Built with online double conversion technology and advanced DSP control, this UPS delivers stable, pure sine wave power with zero transfer time, protecting sensitive devices from voltage fluctuations, surges, and outages. Its tower design integrates a rotating LCD display for easy monitoring, while intelligent battery management ensures optimal battery performance and extended service life. With generator compatibility, scalable expansion options, and comprehensive monitoring capabilities, this UPS provides reliable power continuity for demanding environments.

Product Features

Online Double Conversion Technology

Provides continuous, clean power by converting incoming AC power to DC and back to AC, ensuring a pure sine wave output and zero transfer time during power disruptions.

Advanced DSP Control System

Utilizes digital signal processing technology for precise voltage regulation, improved system stability, and enhanced performance in critical environments.

Rotating LCD Display

The integrated LCD display rotates to match the installation orientation and provides real-time information on system status, including voltage levels, load percentage, battery capacity, and fault diagnostics.

Intelligent Battery Management

Optimizes battery charging cycles to extend battery life, improve reliability, and protect against overcharging, over-discharge, and temperature-related damage.

Flexible Expansion and Connectivity

Equipped with USB and RS232 communication ports and optional expansion slots for SNMP, parallel operation, or relay cards, allowing remote monitoring and scalable redundancy.

Emergency Power Off Function

Includes an Emergency Power Off terminal that enables immediate system shutdown during emergencies, ensuring equipment safety and operational control.

Product Specifications

• Capacity: 10000VA / 9000W
• Power Factor: 0.9
• Topology: Online Double Conversion with DSP Control
• Input Voltage Range: 120V – 276V AC
• Input Frequency: 50Hz (45–55Hz) or 60Hz (54–66Hz) auto-sensing
• Input Power Factor: ≥ 0.99
• Output Voltage: Selectable 200V / 208V / 220V / 230V / 240V AC
• Voltage Regulation: ±1–2% depending on load
• Output Waveform: Pure sine wave
• Input Harmonic Distortion: <3% THDi
• Battery Configuration: 16 × 12V 9Ah or 16 × 12V 7Ah Sealed Lead-Acid batteries
• DC Bus Voltage: 192V
• Charging Current: Adjustable 1A / 2A / 4A / 6A
• Backup Time: Approximately 15–30 minutes depending on load
• Cold Start: Supported
• Dimensions: 600 x 360 x 720 mm
• Weight: 55 kg
• Noise Level: <58 dB at 1 meter
• Operating Temperature: 0°C to 40°C
• Humidity Range: 20% – 90% non-condensing
• Communication Ports: USB and RS232
• Expansion Slots: Optional SNMP, parallel, or relay cards
• Safety Features: Emergency Power Off (EPO), short-circuit protection, over-temperature protection
• Recommended Use Cases: Data centers, server rooms, telecom infrastructure, industrial control systems, and critical IT equipment
