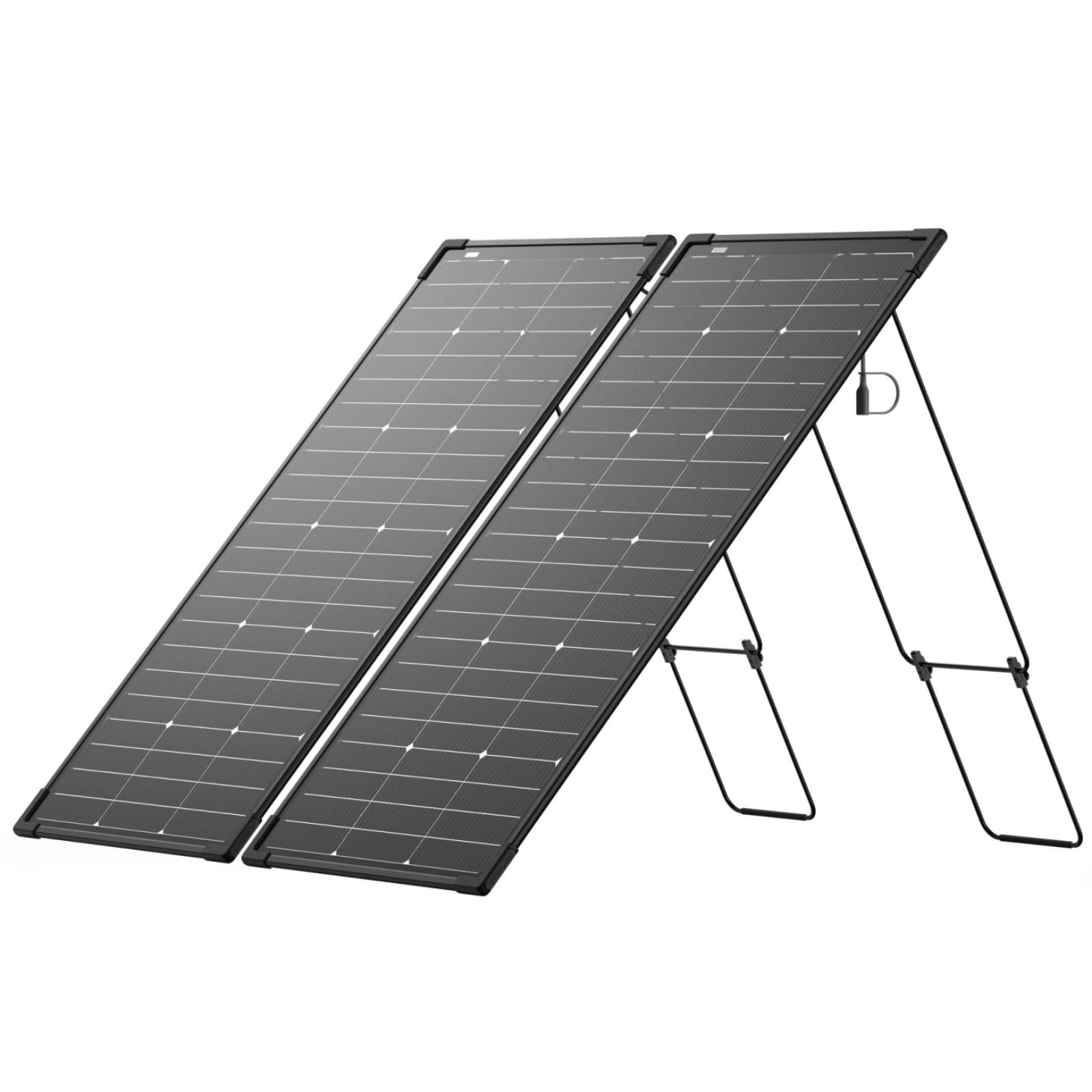

EcoFlow 125W Rigid Bifacial Solar Panel (EFSOLAR125N)

The EcoFlow 125W Rigid Bifacial Solar Panel (EFSOLAR125N) is a high-performance solar panel designed for residential backup systems, RV installations, and off-grid energy setups. Built with advanced N-Type TOPCon monocrystalline technology, it delivers exceptional efficiency, durability, and long-term reliability. Its bifacial design allows it to capture sunlight from both the front and rear surfaces, increasing total energy output in reflective environments. Engineered for modular expansion and seamless integration with EcoFlow power stations, this panel provides a scalable and efficient solar solution for modern energy needs.

Product Features

Bifacial Energy Generation Technology

Captures sunlight from both the front and rear sides, increasing total energy output by utilizing reflected light from surfaces such as concrete, sand, or rooftops.

High Conversion Efficiency

Built with N-Type TOPCon monocrystalline cells, achieving up to 25% conversion efficiency for superior energy production and improved performance in varying light conditions.

Enhanced Power Output in Optimal Conditions

Capable of generating up to 138W under bifacial conditions, maximizing solar harvesting potential in reflective environments.

Ultra-Durable Tempered Glass Construction

Features 1.1mm ultra-thin tempered glass that is significantly stronger than standard panels, ensuring long-lasting durability and resistance to impact.

IP68 Weather Resistance

Fully protected against dust and water immersion, making it suitable for all-weather outdoor installations.

Modular Plug-and-Play Design

Equipped with integrated XT60 connectors for quick and simple connection to EcoFlow power stations without complex wiring.

Built for Parallel Expansion

Supports scalable solar setups with multiple panels connected in parallel, enabling flexible system expansion for higher power output.

Adjustable Mounting System

Includes an adjustable mounting bracket allowing optimal tilt angles between 30° and 60° for improved solar capture.

Integrated Solar Alignment Guide

Built-in alignment tool helps users position the panel accurately for maximum sunlight absorption.

Long-Term Performance Reliability

Engineered for long lifespan with consistent energy output retention over extended use.

Product Specifications

• Rated Power (STC): 125W (±3W)
• Bifacial Power Output (BNPI): Up to 138W
• Cell Type: N-Type TOPCon monocrystalline silicon
• Conversion Efficiency: Up to 25%
• Open Circuit Voltage (Voc): 50V
• Optimal Operating Voltage (Vmp): 43V
• Short-Circuit Current (Isc): 3.2A (front) / 3.4A (bifacial)
• Optimal Operating Current (Imp): 2.9A – 3.2A
• Bifaciality Coefficient: 80% ± 5%
• Dimensions (Single Panel): 612 × 1154 × 22 mm
• Weight (Single Panel): Approximately 4.2 kg
• Waterproof Rating: IP68
• Frame Material: High-strength aluminum alloy
• Glass Thickness: 1.1 mm tempered glass
• Connector Type: Integrated XT60
• Mounting Angle Range: 30° – 60°
• Operating Temperature: -20°C to 85°C
• Storage Temperature: -20°C to 85°C
• System Expansion: Supports parallel and series configurations for scalable setups
