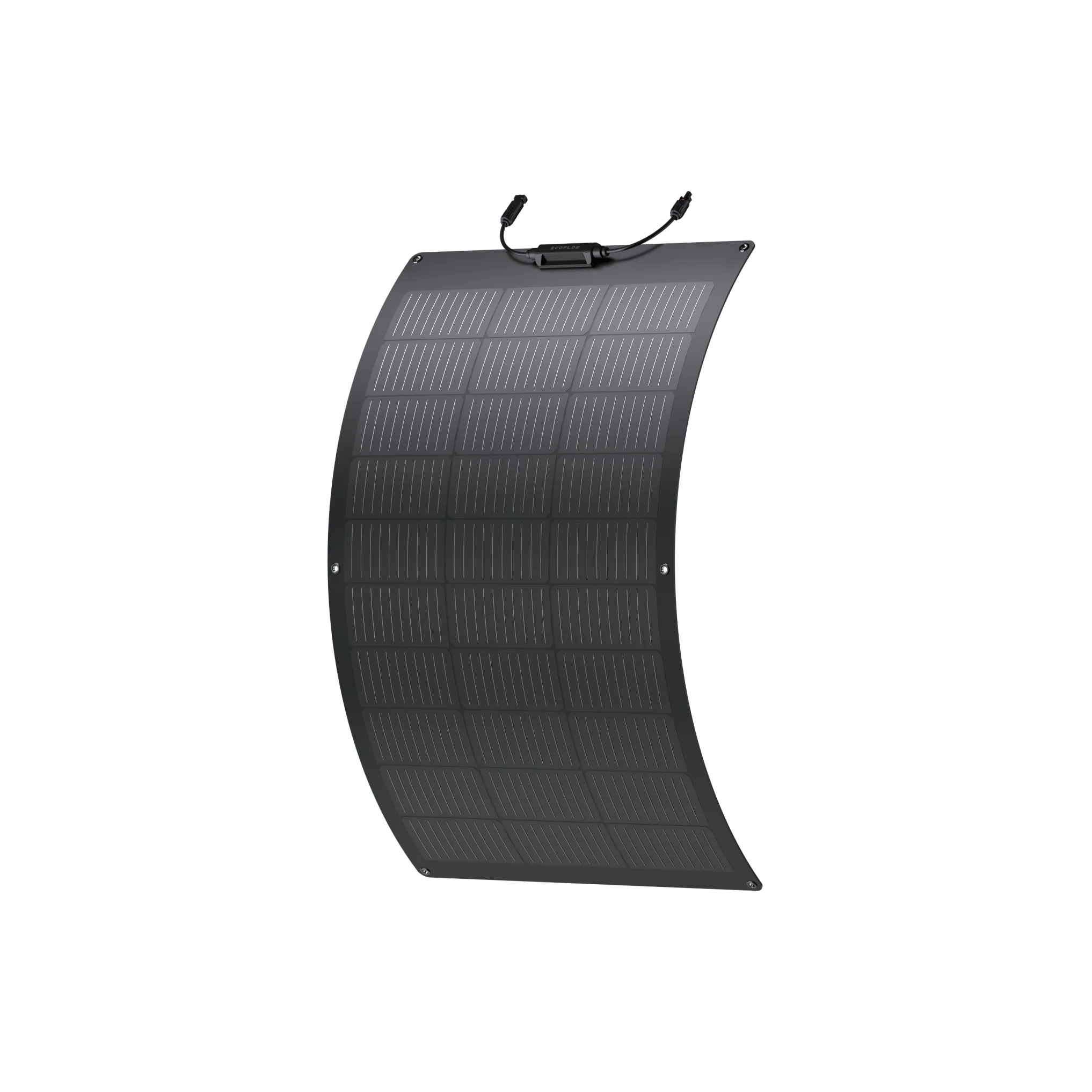

EcoFlow 100W Flexible Solar Panel (ZMS330)

The EcoFlow 100W Flexible Solar Panel (ZMS330) is a lightweight and highly adaptable solar solution designed for curved and irregular surfaces. Built with advanced monocrystalline cell technology and reinforced with glass fiber materials, this panel delivers high efficiency and durability in a flexible form factor. Ideal for RVs, boats, rooftops, and off-grid setups, it offers reliable solar performance with excellent conversion efficiency, weather resistance, and seamless compatibility with EcoFlow power systems and other standard solar setups.

Product Features

Ultra-Lightweight Design

Weighing approximately 2.3 kg (5.1 lbs), this solar panel is easy to transport and install, making it ideal for mobile and off-grid applications.

High Flexibility for Versatile Installation

With up to 258° flexibility, the panel can be mounted on curved or uneven surfaces such as vehicle roofs, boats, and cabins.

High Conversion Efficiency

Engineered with monocrystalline silicon cells delivering up to 23% efficiency, ensuring faster and more effective solar energy generation.

Durable Glass Fiber Construction

Each of the 182 solar cells is reinforced with advanced glass fiber and lamination, enhancing durability and extending product lifespan.

IP68 Waterproof Rating

Designed to withstand harsh weather conditions, providing reliable performance in rain, dust, and outdoor environments.

Built-In Bypass Diodes

Integrated bypass diodes help prevent overheating and maintain performance in partially shaded conditions.

Optimized Solar Performance

Works seamlessly with EcoFlow power systems featuring MPPT algorithms to maximize solar input and improve charging efficiency.

Universal Compatibility

Compatible with EcoFlow portable power stations and most third-party solar systems using standard connectors.

Product Specifications

• Rated Power: 100W (±5W)
• Conversion Efficiency: Up to 23%
• Cell Type: Monocrystalline silicon
• Number of Cells: 182
• Weight: Approximately 2.3 kg
• Dimensions: 1055 × 612 × 25 mm
• Open Circuit Voltage: 20.3V
• Short Circuit Current: 6.3A
• Maximum Operating Voltage (Vmp): 17.1V
• Maximum Operating Current (Imp): 5.9A
• Temperature Coefficient of Power: -0.39%/°C
• Temperature Coefficient of Open Circuit Voltage: -0.33%/°C
• Temperature Coefficient of Short Circuit Current: 0.06%/°C
• Maximum System Voltage: 600 V DC
• Maximum Fuse Rating: 15 A
