Dragon Guard RS5011 Electronic Article Surveillance Anti-theft System (RS5011)

The Dragon Guard RS5011 Electronic Article Surveillance (EAS) System is a high-performance RF-based retail security solution designed for effective theft prevention in supermarkets, clothing stores, cosmetic shops, and other high-traffic retail environments. Operating on 8.2MHz Radio Frequency technology, the RS5011 combines advanced Digital Signal Processing (DSP) with a durable aluminum alloy frame to deliver stable detection performance and reduced false alarms. As part of the Advertisement Series, its antenna frame also functions as a customizable display surface, allowing retailers to integrate branding or promotional materials directly into the security gate.

Product Features

High-Performance 8.2MHz RF Detection System

The RS5011 operates on a stable 8.2MHz RF frequency, enabling accurate detection of security tags and labels. Its optimized signal processing ensures consistent performance across different retail environments, including those with moderate electronic interference.

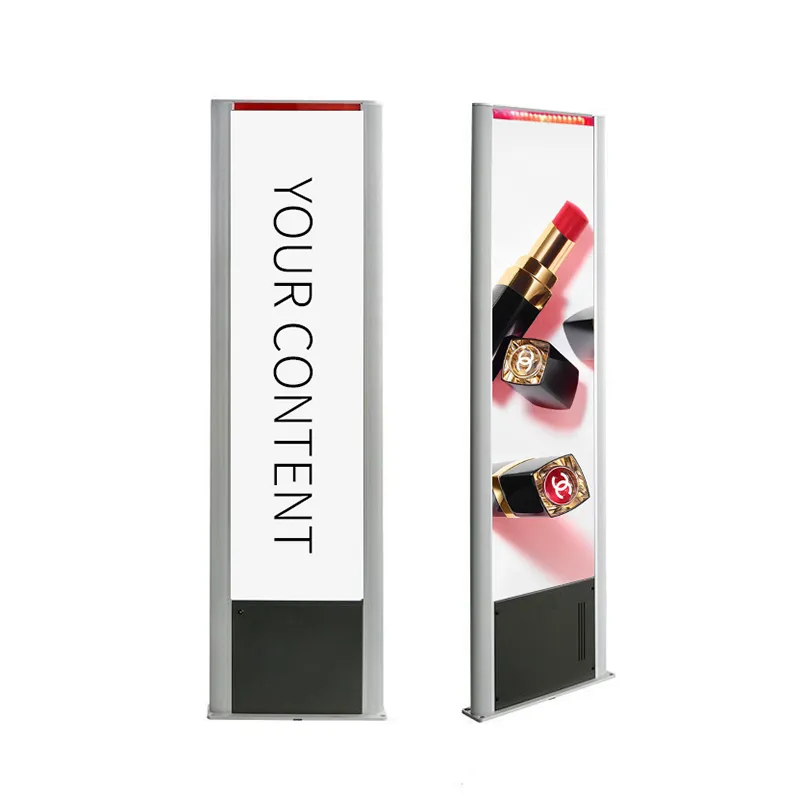

Integrated Advertising Display Frame

Designed as part of the Advertisement Series, the RS5011 includes a customizable frame that allows retailers to insert posters, branding, or promotional content. This transforms the security system into a dual-purpose unit that enhances both loss prevention and in-store marketing.

Advanced Digital Signal Processing Technology

The system uses DSP technology combined with Automatic Gain Control (AGC) to automatically adjust sensitivity levels based on environmental conditions. This reduces false alarms caused by nearby metal structures, electronic devices, or external interference.

Wide Detection Range for Multiple Tag Types

The RS5011 supports various RF security tags and delivers strong detection coverage, ranging from 1.3 meters to 2.0 meters depending on tag type and configuration. This makes it suitable for both standard and wide retail entrances.

Dual and Mono Installation Flexibility

The system can be installed in Mono (single antenna) or Dual (paired antenna) configurations, allowing retailers to adapt the setup based on store layout and entrance width requirements.

Durable Aluminum Alloy Construction

Built with high-strength aluminum alloy, the RS5011 is designed for long-term use in busy retail environments. Its robust structure ensures stability, durability, and resistance to wear in high-traffic areas.

Integrated Sound and Light Alarm System

The system features a combined audio and visual alarm system with red and blue LED indicators. This provides immediate alerts when unauthorized movement of tagged items is detected.

Self-Diagnostic and Smart Calibration System

The RS5011 includes built-in self-testing functionality that performs automatic diagnostics during startup. This ensures all components are functioning correctly and improves system reliability.

Wireless Synchronization Capability

The system supports wireless synchronization between multiple antennas, reducing installation complexity and eliminating the need for physical sync cables in multi-gate setups.

Product Specifications

• Model: RS5011 (Advertisement Series)
• Operating Frequency: 8.2MHz RF
• Material: High-strength aluminum alloy
• Dimensions: Approximately 167 x 42 x 2 cm per antenna
• Weight: Approximately 13 kg per unit
• Power Supply: 220V / 110V AC with internal AC to DC conversion
• Detection Range:
  • RF Soft Labels (4 x 4 cm): 1.3m – 1.8m
  • Hard Tags (Mini Square / Pencil Tags): 1.6m – 2.0m
  • Large Hard Tags: Up to 2.2m under optimal conditions
• Technology: Advanced DSP with Automatic Gain Control (AGC)
• Scanning Bandwidth: ±500 KHz around 8.2MHz frequency
• Alarm System: Integrated sound and dual-color (red/blue) LED light alarm
• Installation Modes: Mono (single) and Dual (paired) configurations supported
• Synchronization: Wireless multi-antenna synchronization supported
• Diagnostics: Built-in self-testing and technician debugging mode
• Packaging: Dual-unit system per carton
• Carton Dimensions: Approximately 171 x 20.5 x 46 cm
• Gross Weight: Approximately 15 kg per carton
• Applications: Supermarkets, clothing stores, cosmetic shops, bookstores, and general retail environments
