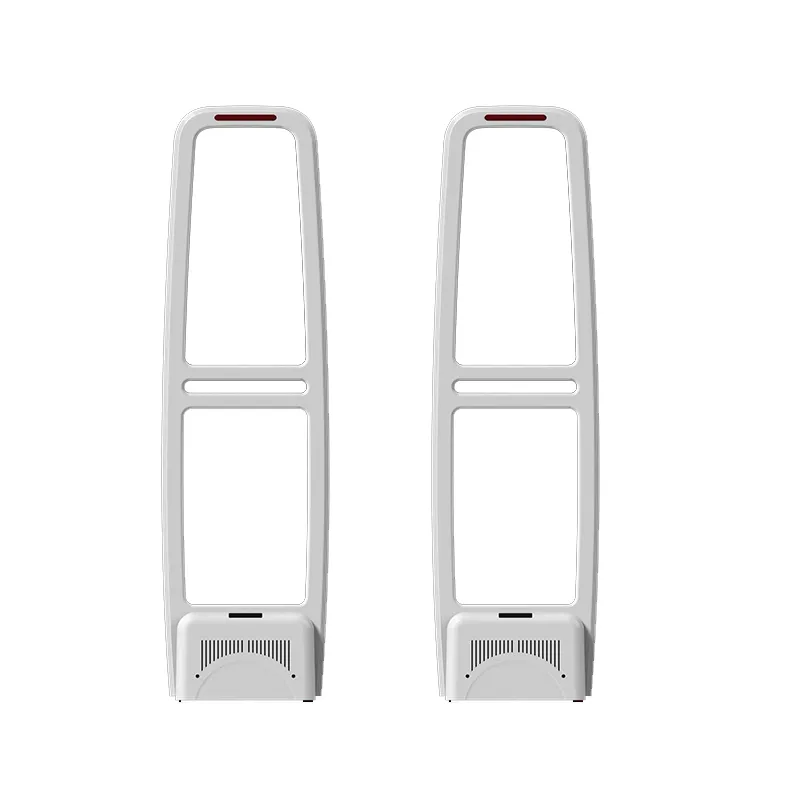

Dragon Guard AS7001 Electronic Article Surveillance System

The Dragon Guard AS7001 Electronic Article Surveillance (EAS) System is a professional-grade Acoustic Magnetic (AM) retail security solution designed to reduce shoplifting and improve loss prevention in high-traffic retail environments. Operating at 58 kHz, it provides reliable detection of security tags and labels on merchandise such as apparel, cosmetics, handbags, and electronics. With advanced DSP signal processing and automatic gain control, the AS7001 delivers stable performance, high detection accuracy, and reduced false alarms, making it suitable for modern retail stores and shopping malls.

Product Features

High-Precision 58 kHz AM Detection Technology

The system operates on a 58 kHz acoustic magnetic frequency, ensuring strong and reliable detection of both hard tags and soft labels across retail environments.

Wide and Adjustable Detection Coverage

Supports flexible detection ranges depending on tag type and system configuration, enabling effective coverage for store entrances and exits.

Advanced Digital Signal Processing

Integrated DSP technology and dynamic phase detection improve signal stability, filter environmental interference, and significantly reduce false alarms.

Dual and Mono System Flexibility

Supports both mono (single pedestal) and dual (master/slave) antenna configurations, allowing installation flexibility based on store layout requirements.

Intelligent Self-Diagnostic System

Built-in self-testing functionality and LED indicators provide real-time system status monitoring for easier maintenance and troubleshooting.

Easy Installation and Automatic Calibration

Features plug-and-play setup with automatic signal adjustment and software-assisted tuning, reducing installation time and technical complexity.

Durable Flame-Retardant Construction

Constructed from high-quality ABS engineering plastic with flame-retardant properties for long-term durability and safe retail operation.

Alarm and Visual Notification System

Equipped with audible alarms and integrated red LED lights to instantly alert staff of potential security breaches.

Product Specifications

• Model: Dragon Guard AS7001
• Technology: Acoustic Magnetic (AM) Electronic Article Surveillance system
• Operating frequency: 58 kHz
• Input voltage: 110V / 220V AC (selectable)
• Operating temperature: -10°C to 60°C
• Antenna modes: Mono (single pedestal) and Dual (master/slave)
• Dimensions: 147 cm x 45 cm x 12 cm
• Packed dimensions: 155 cm x 50 cm x 18 cm
• Weight: Approximately 15 kg per pedestal; 21 kg per dual-unit carton
• Material: Flame-retardant ABS engineering plastic alloy
• Detection range (dual system):
  • DR labels (soft tags): 1.4 m to 1.6 m
  • Hard tags: 2.2 m to 2.4 m
• Detection range (mono system):
  • DR labels (soft tags): 0.7 m to 0.8 m
  • Hard tags: 1.1 m to 1.2 m
• Signal processing: DSP with dynamic phase detection and automatic gain control (AGC)
• Installation: Plug-and-play with automatic calibration and software-based tuning
• Monitoring: LED status indicators with self-test functionality
• Upgrade capability: Online firmware and system upgrades supported
• Certifications: CE, ISO9001, RoHS compliant
• Applications: Retail stores, fashion outlets, cosmetics shops, supermarkets, and shopping malls
