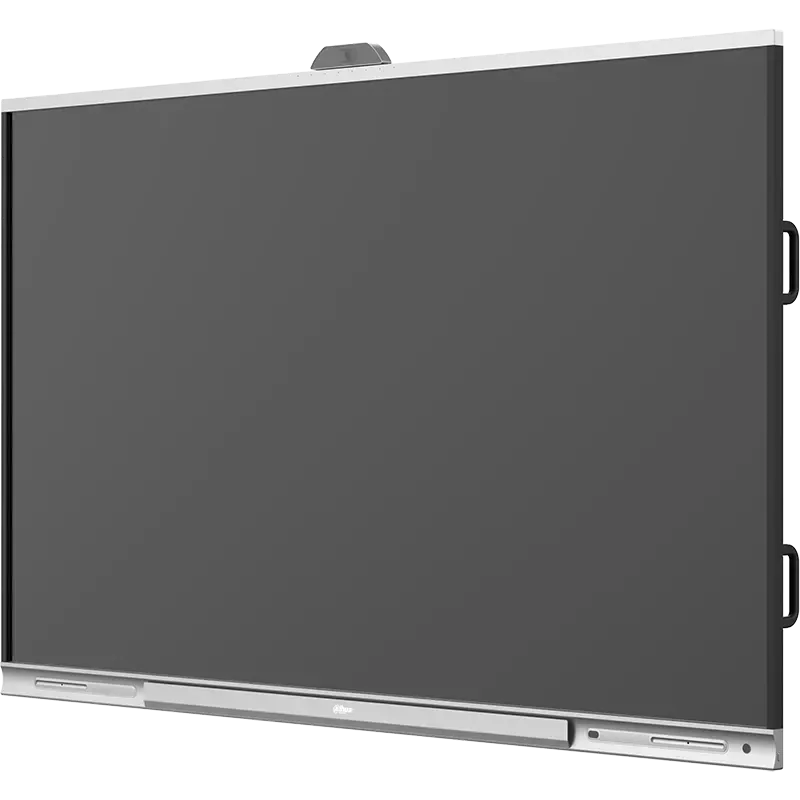

Dahua 86-inch 4K DeepHub Pro Smart Interactive Whiteboard (LPH86-MC470-P)

The Dahua 86-inch DeepHub Pro Smart Interactive Whiteboard (LPH86-MC470-P) is a premium collaboration display engineered for advanced enterprise meetings, smart classrooms, and hybrid work environments. Featuring a 4K Ultra HD DLED display with Zero Air Gap technology, it delivers exceptional clarity, reduced parallax, and precise touch accuracy for a natural writing experience. Powered by Android 11 with high-performance octa-core processing and 12GB RAM, it ensures smooth multitasking and application performance. With a built-in 48MP AI 4K camera, 8-array microphones, wireless screen sharing, and integrated fingerprint security, this whiteboard is designed to enhance productivity, communication, and data protection in professional environments.

Product Features

86-inch 4K Ultra HD Display with Zero Air Gap

The 86-inch display features 3840 x 2160 resolution with Zero Air Gap technology, reducing visual distortion and improving touch accuracy. It delivers sharp, vivid images ideal for presentations, collaboration, and detailed content viewing.

AI-Powered 4K Camera and Audio System

Equipped with a 48MP AI camera and 8-array microphones, the whiteboard provides high-quality video and audio for conferencing. Advanced features such as auto white balance, face detection, and noise filtering ensure clear communication.

High-Performance Android System with 12GB RAM

The device runs on Android 11 powered by a quad-core A73 and quad-core A53 processor, with 12GB RAM and 64GB storage. This configuration supports demanding applications, smooth multitasking, and efficient workflow management.

Ultra-Smooth Multi-Touch Writing Experience

The infrared touch technology supports up to 20 touch points with precise accuracy and low latency. Handwriting recognition and pen input provide a natural and responsive writing experience for collaborative sessions.

Wireless Screen Sharing and Collaboration

Users can wirelessly share content from laptops, smartphones, and tablets. The intuitive interface makes it easy to present, collaborate, and switch between multiple devices.

Built-in Fingerprint Security System

The integrated fingerprint lock supports up to 100 users, providing secure access and protecting sensitive information. This feature enhances data security in corporate and educational environments.

Integrated USB-C and Multi-Port Connectivity

The whiteboard includes USB-C, HDMI input and output, USB ports, and network connectivity, enabling seamless integration with external devices and systems.

QR Code File Sharing with Encryption

Quick file sharing via QR code allows users to transfer documents easily while maintaining security through encryption. This improves workflow efficiency and protects shared data.

Product Specifications

• Model: LPH86-MC470-P
• Display size: 86 inches (available variants: 65, 75, 86, 98 inches)
• Resolution: 3840 x 2160 (4K UHD)
• Aspect ratio: 16:9
• Panel type: DLED with Zero Air Gap technology
• Brightness: 400 cd/m² (86-inch model)
• Contrast ratio: 1200:1
• Refresh rate: 60 Hz
• Viewing angles: 178° horizontal / 178° vertical
• Lifespan: 50,000 hours
• Color gamut: 72% NTSC
• Operating system: Android 11
• CPU: Quad-core A73 + quad-core A53
• CPU frequency: Up to 2.2 GHz + 2.0 GHz
• GPU: ARM Mali-G52 MP8
• RAM: 12 GB (8 GB system + 4 GB camera)
• Storage: 64 GB
• External OS support: Windows 7/8/10 and Android
• Touch technology: Infrared touch
• Touch points: Up to 20
• Touch accuracy: ±1 mm
• Response time: <10 ms
• Writing support: Finger and magnetic stylus
• Surface: Anti-dazzle tempered glass (Mohs hardness level 7)
• Touch resolution: 32767 x 32767
• Camera: 48 MP AI camera
• Video resolution: Up to 3840 x 2160 @30 fps
• Field of view: H 87°, V 49°, D 99°
• Features: Auto flip, auto white balance, face detection
• Audio: 3 x 15W speakers
• Frequency range: 150 Hz to 20 kHz
• Microphones: 8-array omnidirectional microphones
• Audio features: AGC, echo cancellation, intelligent noise filtering
• Pickup distance: 6 m to 8 m
• Connectivity: HDMI IN, HDMI OUT, USB 3.0, Micro USB, USB-C, RJ45 Ethernet, RS-232, 3.5 mm audio out
• Wireless: Dual-band Wi-Fi (2.4GHz/5GHz), hotspot support
• Ports: 3 x USB 3.0, 1 x Micro USB, 1 x Type-C
• Security: Fingerprint lock (up to 100 users, FAR 0.001%)
• Power supply: 100–240V AC
• Power consumption: 400W (86-inch model)
• Standby power: ≤0.5W
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Operating humidity: 10% to 90%
• Installation: Wall mount or mobile bracket
• VESA mounting: 800 x 400 mm
• Dimensions (86-inch): 1953.2 x 1232.7 x 93.3 mm
• Net weight: 67 kg
• Gross weight: 80 kg
• Included accessories: Power cords, 2 stylus pens, remote control, wall mount bracket, quick start guide, accessory package
