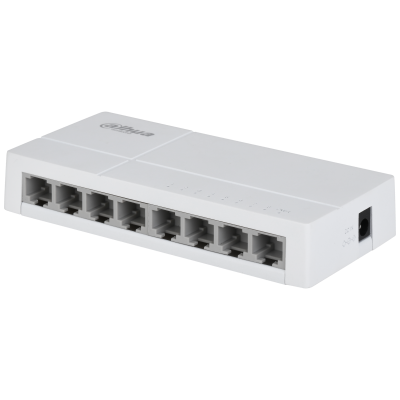

Dahua 8-Port Unmanaged Ethernet Switch (DHI-SF1008L)

The Dahua DHI-SF1008L is a compact 8-port unmanaged Fast Ethernet switch designed for simple, reliable, and cost-effective network expansion in small office, home, and CCTV surveillance environments. With plug-and-play functionality, it allows users to easily connect multiple IP cameras, computers, and network devices without configuration. Its lightweight design, stable performance, and energy-efficient operation make it ideal for small-scale wired networking applications.

Product Features

8-Port Fast Ethernet Connectivity

The switch provides 8 × 10/100 Mbps adaptive RJ45 ports, enabling seamless connection of multiple devices such as IP cameras, NVRs, PCs, and printers within a local network.

Plug-and-Play Simple Operation

Designed for ease of use, the DHI-SF1008L requires no software installation or configuration. Devices automatically connect and communicate once plugged in, making setup fast and hassle-free.

Stable High-Speed Data Transmission

With store-and-forward switching architecture, the device ensures accurate data forwarding and stable network performance for continuous surveillance and daily networking tasks.

Compact and Lightweight Design

Its small form factor and lightweight plastic housing make it easy to install on desks, shelves, or inside CCTV cabinets, even in tight spaces.

Energy-Efficient Low Power Consumption

Built for efficiency, the switch consumes only 0.1 W when idle and up to 0.75 W under full load, helping reduce overall power usage in continuous operation environments.

Strong Surge and Static Protection

Each port is protected with up to 8 kV air discharge, 4 kV contact discharge, and 2 kV common-mode lightning protection, ensuring stable operation and safeguarding connected devices.

Product Specifications

• Model: DHI-SF1008L
• Ports: 8 × 10/100 Mbps RJ45 adaptive ports
• Ethernet Standard: 10/100 Base-T
• Switching Capacity: 1.6 Gbps
• Packet Forwarding Rate: 1.1904 Mpps
• MAC Address Table: 2K entries
• Packet Buffer: 768 Kbit
• Transmission Mode: Store-and-forward
• Power Supply: 5 VDC, 1 A external adapter
• Power Consumption: 0.1 W (idle), 0.75 W (full load)
• Operating Temperature: 0 °C to +45 °C
• Storage Temperature: –40 °C to +70 °C
• Operating Humidity: 5%–95% RH
• Storage Humidity: 5%–95% RH
• Surge Protection: 8 kV air, 4 kV contact, 2 kV common mode
• Housing Material: Plastic
• Installation Type: Desktop mount
• Dimensions: 132.9 × 62.4 × 24.0 mm
• Packaging Dimensions: 138.0 × 90.0 × 63.5 mm
• Net Weight: 0.16 kg
• Gross Weight: 0.29 kg
• Certifications: CE
