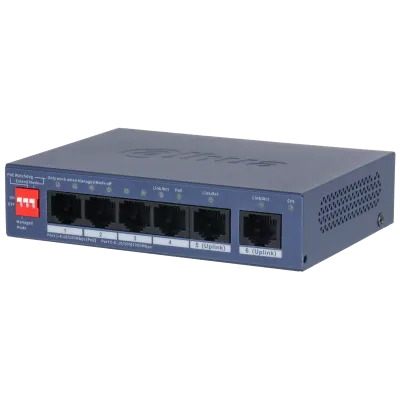

Dahua 6-Port Cloud Managed Desktop Switch with 4-Port PoE (DH-CS4006-4ET2GT-36)

The Dahua DH-CS4006-4ET2GT-36 is a compact 6-port cloud managed desktop switch designed for reliable small to medium network deployments that require both data connectivity and PoE power delivery. It features 4 Fast Ethernet PoE ports and 2 Gigabit uplink ports, making it ideal for IP cameras, access points, and other network devices. With cloud management support via the DoLynk App and web interface, it enables remote monitoring, configuration, and real-time network control. Its robust PoE capabilities, intelligent power management, and industrial-grade protection features make it suitable for surveillance and business networking environments that demand stability and efficiency.

Product Features

Cloud Managed Network Control

The switch supports centralized cloud management through the DoLynk App and web interface, allowing administrators to monitor network status, manage devices remotely, and configure settings in real time for improved operational efficiency.

4-Port PoE Power Delivery

It provides four 10/100 Mbps PoE ports supporting IEEE 802.3af/at standards, delivering power and data over a single Ethernet cable to simplify installation of IP cameras, VoIP phones, and wireless access points.

Gigabit Uplink Performance

Equipped with two Gigabit RJ45 uplink ports, the switch ensures high-speed data transmission to core networks, reducing bottlenecks and improving overall network performance.

Intelligent PoE Management

Built-in PoE power control allows per-port power management, overload protection, and automatic shutdown during abnormal conditions, helping maintain stable and safe device operation.

PoE Watchdog Function

The PoE watchdog automatically detects inactive or unresponsive connected devices on ports 1–4 and reboots the port to restore connectivity, minimizing manual maintenance requirements.

Long Distance PoE Support

Extend mode enables PoE transmission up to 250 meters at 10 Mbps, making it suitable for surveillance installations in large buildings, campuses, or outdoor environments.

VLAN and Network Protection

Supports IEEE 802.1Q VLAN segmentation, loop protection, storm control, and MAC-port binding, improving network security, stability, and traffic management efficiency.

Durable and Flexible Installation Design

Built with a metal casing and compact form factor, the switch supports both desktop and wall mounting, operating reliably in temperatures from –10 °C to 55 °C.

Product Specifications

• Ports: 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 10/100/1000 Mbps uplink ports
• Switching Capacity: 4.8 Gbps
• Packet Forwarding Rate: 3.57 Mpps
• Layer: Layer 2
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Budget: Total 36 W, up to 30 W per port (Ports 1–4)
• Power Supply: External 53 VDC, 0.8 A
• Power Consumption: Idle ≤ 3 W, full load 42.4 W
• MAC Address Table: 2K
• Packet Buffer Size: 4 Mbit
• Jumbo Frame Support: Up to 9216 bytes
• VLAN Support: Up to 32 VLANs (IEEE 802.1Q)
• Operating Temperature: –10 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–95% RH non-condensing
• Surge Protection: Air discharge 8 kV, contact discharge 6 kV
• Lightning Protection: Common mode 6 kV
• MTBF: 232.62 years
• Installation Type: Desktop mount or wall mount
• Casing Material: Sheet metal
• Dimensions: 115 mm × 84 mm × 27 mm
• Weight: Net 0.2 kg, Gross 0.72 kg
• Management: Web management, cloud management, DoLynk App support
• Included Accessories: Quick start guide, regulatory information, power adapter, power cord
