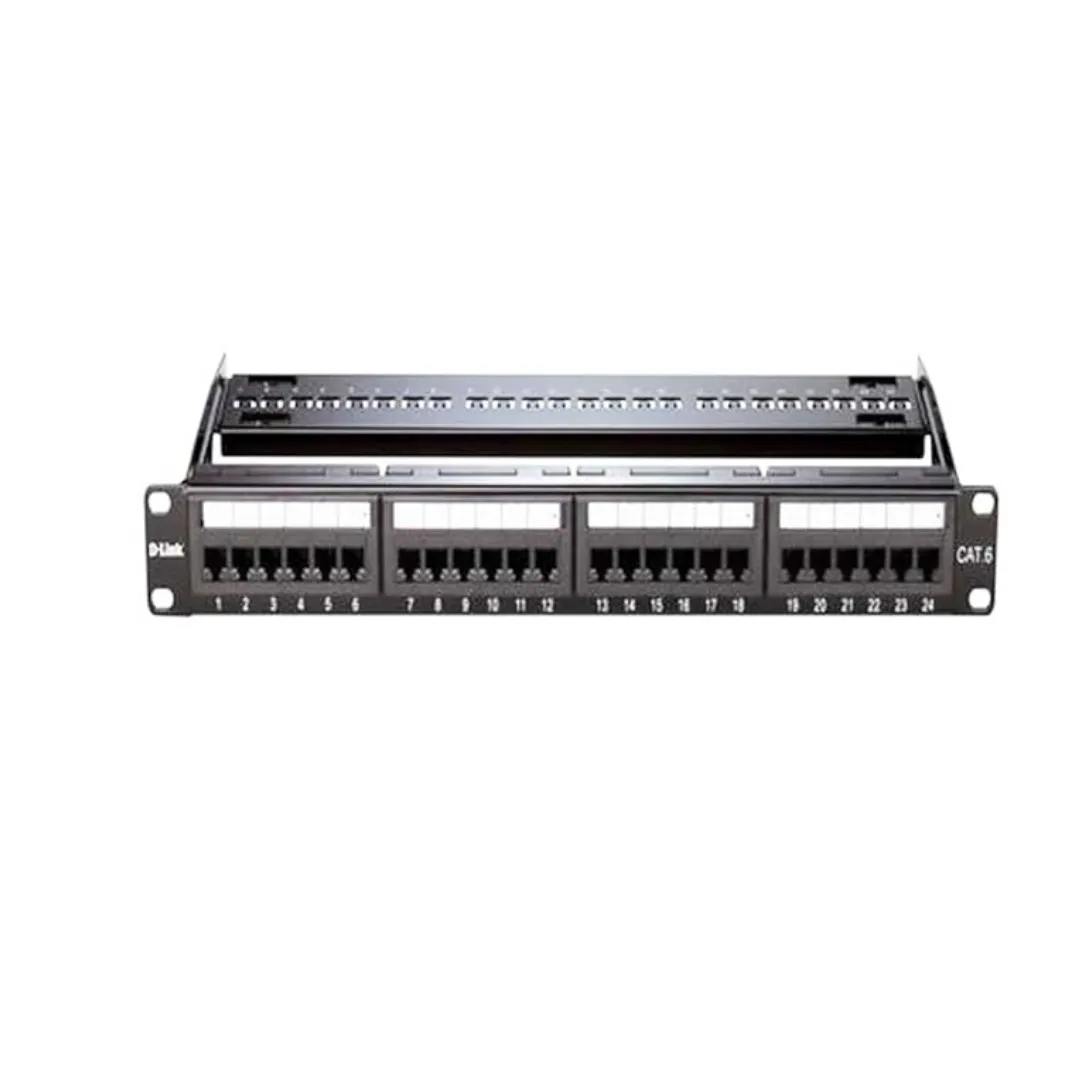

D-Link Cat6 24-Port Patch Panel (NPP-C61BLK241)

The D-Link Cat6 24-Port Patch Panel (NPP-C61BLK241) is a high-performance networking solution designed for structured cabling systems in enterprise, SMB, and data center environments. Built to support Gigabit Ethernet speeds and bandwidth up to 250 MHz, this patch panel ensures reliable and efficient data transmission. Its durable steel construction, organized cable management features, and compatibility with standard rack systems make it ideal for professional network installations requiring scalability, performance, and long-term reliability.

Product Features

High-Speed Cat6 Performance

Supports Category 6 standards with bandwidth up to 250 MHz and Gigabit Ethernet speeds up to 1 Gbps, ensuring fast and stable network connectivity.

24-Port High-Density Design

Equipped with 24 RJ-45 ports in a compact 1U form factor, maximizing rack space efficiency for structured cabling environments.

Universal Rack Mount Compatibility

Designed to fit standard 19-inch racks and network cabinets, making installation seamless in professional networking setups.

Dual IDC Termination Support

Features IDC punch-down blocks compatible with both 110 and Krone tools, offering flexibility during installation.

Wide Wire Compatibility

Supports both stranded and solid wires ranging from 22 to 26 AWG, accommodating various cabling requirements.

Durable Industrial Construction

Constructed from 1.6 mm thick SPCC cold-rolled steel with a black powder-coated finish for enhanced durability and corrosion resistance.

Organized Cable Management

Includes clear port labeling, ID strips, and transparent designation labels to simplify cable identification and maintenance.

Reliable Long-Term Performance

Modular jacks are rated for a minimum of 750 mating cycles, ensuring durability in high-usage environments.

Standards Compliance

Complies with ANSI/TIA/EIA 568C.2 and ISO/IEC 11801 standards for structured cabling and performance reliability.

Product Specifications

• Product Description: Cat6 24-Port UTP Patch Panel
• Model: NPP-C61BLK241
• Port Count: 24 x RJ-45 Ports
• Form Factor: 1U Height, 19-Inch Rack Mount
• Performance: Category 6, up to 250 MHz
• Data Transmission: Up to 1 Gbps over 100 meters
• Termination Type: IDC (110 and Krone Compatible)
• Wire Gauge Compatibility: 22–26 AWG (Stranded and Solid)
• Material (Panel): 1.6 mm SPCC Cold-Rolled Steel
• Finish: Black (RAL 9005) Powder Coating
• RJ45 Jack Housing: PBT + Glass Fiber or ABS (UL 94V-0)
• Jack Contacts: Phosphor Bronze with Nickel and Gold Plating
• IDC Housing: Polycarbonate (PC) or PC + Glass Fiber (UL 94V-0)
• PCB Material: FR4 (UL 94V-0)
• Mating Cycles: 750 Cycles (Jack), 200 Cycles (IDC)
• Contact Resistance: ≤ 20 mΩ
• Insulation Resistance: ≥ 500 MΩ
• Insertion Force: Maximum 20 N
• Retention Strength: Approximately 7.7 kg
• Grounding: Integrated Grounding Terminal
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -40°C to 70°C
• Cable Management: Compatible with Optional Rear Cable Management Bar
