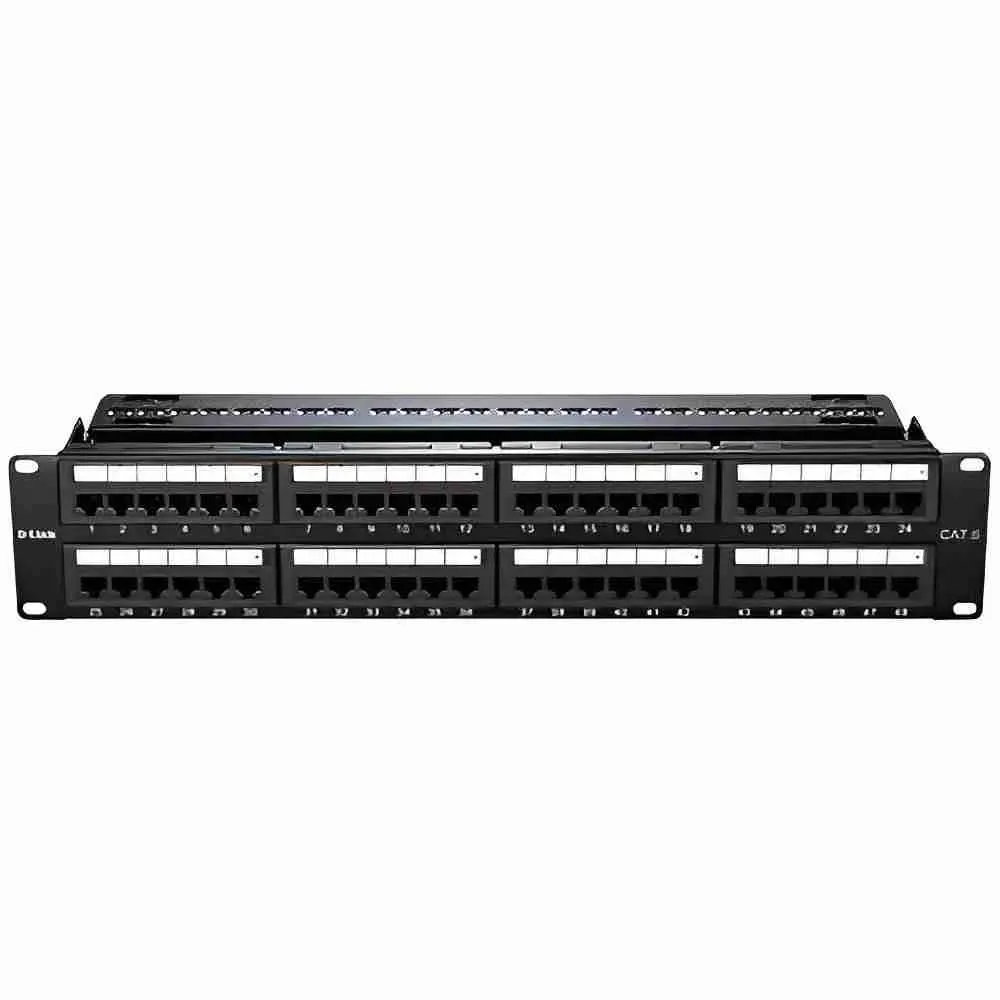

D-Link 48 Port Cat6 Unshielded Fully Loaded Punch Down Patch Panel (NPP-C61BLK481)

The D-Link 48 Port Cat6 Unshielded Fully Loaded Punch Down Patch Panel (NPP-C61BLK481) is a high-density networking solution engineered for structured cabling systems in enterprise and data center environments. Designed to support Gigabit Ethernet speeds and bandwidth up to 250 MHz, this patch panel ensures reliable and efficient data transmission. With 48 fully loaded RJ45 ports in a 2U rack-mount design, durable steel construction, and organized cable management features, it delivers scalability, performance, and long-term reliability for professional network installations.

Product Features

High-Density 48-Port Design

Provides 48 RJ45 ports in a 2U rack configuration, making it ideal for large-scale network deployments and efficient space utilization.

Cat6 Gigabit Performance

Supports Category 6 standards with bandwidth up to 250 MHz and data speeds up to 1 Gbps for fast and stable connectivity.

Fully Loaded Patch Panel

Comes pre-installed with 48 Cat6 RJ45 jacks, eliminating the need for additional keystone modules and simplifying installation.

Dual IDC Termination Compatibility

Equipped with IDC terminals compatible with both 110 and Krone punch-down tools for flexible and convenient installation.

Universal Rack Mount Design

Fits standard 19-inch racks and cabinets, ensuring seamless integration into existing network infrastructure.

Organized Cable Management

Includes numbered ports and write-on ID label strips for clear identification, with support for an optional rear cable management bar to reduce cable strain.

Durable Industrial Construction

Built with 1.5 mm to 1.6 mm SPCC cold-rolled steel and finished with a black powder coating for enhanced strength and longevity.

Reliable Long-Term Usage

Each port is rated for at least 750 mating cycles, ensuring durability in high-demand networking environments.

Advanced Safety and Compliance

Complies with ANSI/TIA/EIA 568C.2, ISO/IEC 11801, and IEC standards, and is UL certified and RoHS compliant for safety and environmental standards.

Product Specifications

• Product Description: Cat6 48-Port UTP Fully Loaded Patch Panel
• Model: NPP-C61BLK481
• Port Count: 48 x RJ45 Ports
• Form Factor: 2U Height, 19-Inch Rack Mount
• Performance: Category 6, up to 250 MHz
• Data Transmission: 10/100/1000 Mbps (Gigabit Ethernet)
• Termination Type: IDC (110 and Krone Compatible)
• Wiring Standards: T568A and T568B
• Wire Gauge Compatibility: 22–26 AWG (Stranded and Solid)
• Chassis Material: 1.5 mm–1.6 mm SPCC Cold-Rolled Steel
• Finish: Black (RAL 9005) Powder Coating
• RJ45 Jack Housing: PBT + Glass Fiber or ABS (UL 94V-0)
• Jack Contacts: Phosphor Bronze with Nickel and Gold Plating
• IDC Contacts: Phosphor Bronze with Tin Plating
• PCB Material: FR4 (UL 94V-0)
• Mating Cycles: Minimum 750 Cycles
• Contact Resistance: ≤ 20 mΩ
• Insulation Resistance: ≥ 500 MΩ
• Insertion Force: ≤ 20 N to 30 N
• Retention Strength: Approximately 7.7 kg
• Transmission Standards: ANSI/TIA/EIA 568C.2, ISO/IEC 11801, IEC 60603-7-5
• Operating Temperature: -10°C to 60°C
• Dimensions: 482.6 mm x 88.9 mm x 87.2 mm
• Weight: Approximately 2.5 kg
• Safety Certifications: UL Certified, RoHS Compliant
• Grounding: Includes 18 AWG Grounding Wire
• Cable Management: Compatible with Optional Rear Cable Management Bar
