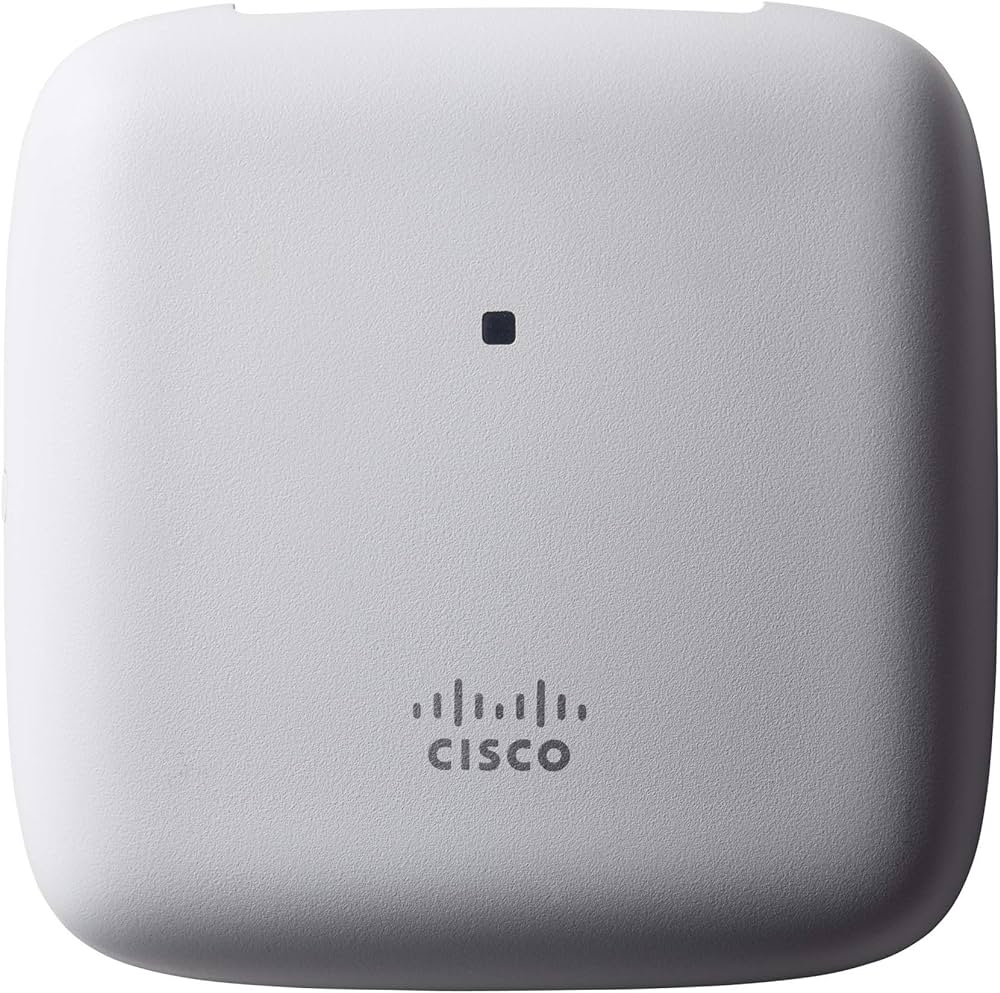

Cisco Business 240AC Access Point (CBW240AC-E)

The Cisco Business 240AC Access Point (CBW240AC-E) is a high-performance enterprise-grade Wi-Fi 5 access point designed for small to medium-sized businesses seeking reliable and scalable wireless connectivity. Built on the 802.11ac Wave 2 standard, it delivers combined speeds of up to 2.4 Gbps with advanced MU-MIMO technology for efficient multi-user performance. Featuring controller-less deployment, mesh capability, and robust security protocols, this access point provides seamless wireless coverage, simplified management, and secure network access for modern business environments.

Product Features

High-Speed Wi-Fi Performance

Delivers up to 2.4 Gbps combined wireless throughput with dual-band support, ensuring fast and stable connections for bandwidth-intensive applications.

Advanced MU-MIMO Technology

Equipped with 4×4 MU-MIMO and four spatial streams, enabling simultaneous communication with multiple devices for improved network efficiency.

Controller-less Deployment

Supports easy setup and management through a web interface or Cisco Business mobile app, eliminating the need for a dedicated wireless controller.

Mesh Networking Capability

Allows expansion of wireless coverage using mesh extenders without additional cabling, ideal for growing business environments.

Enterprise-Grade Security

Includes WPA3 encryption, VLAN segmentation, 802.1X authentication, and RADIUS support to protect network access and data.

Flexible Installation Options

Designed for ceiling or wall mounting, with Power over Ethernet support for simplified single-cable installation.

High Client Capacity

Supports up to 400 concurrent clients per access point and up to 1,000 clients across a clustered network.

Product Specifications

• Wireless Standard: IEEE 802.11ac Wave 2 (Wi-Fi 5), backward compatible with 802.11a/b/g/n
• Maximum Throughput: Up to 2.4 Gbps (1733 Mbps on 5 GHz, 600 Mbps on 2.4 GHz)
• MIMO Configuration: 4×4 MU-MIMO with four spatial streams
• Client Capacity: 400 per access point; up to 1,000 per system
• Ethernet Ports: 2 x Gigabit Ethernet (RJ-45)
• Additional Ports: 1 x USB 2.0, 1 x RJ-45 console port
• Power Options: 802.3af/at Power over Ethernet
• Power Consumption: Approximately 13.2W
• Antenna: Internal omnidirectional antennas (4 dBi at 2.4 GHz, 5 dBi at 5 GHz)
• Frequency Range:
  • 2.4 GHz: 2.412 to 2.472 GHz
  • 5 GHz: 5.180 to 5.320 GHz and 5.500 to 5.700 GHz
• Memory: 1 GB RAM; 256 MB or 512 MB Flash
• VLAN Support: Up to 16 VLANs
• Security Protocols: WPA3, 802.1X, RADIUS (AAA)
• Clustering: Up to 50 access points (25 recommended)
• Mounting: Ceiling or wall mount
• Dimensions (H x W x D): 7 x 7 x 1.5 inches (177.8 x 177.8 x 38 mm)
• Weight: 0.94 lbs (426 g)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10% to 90% non-condensing
