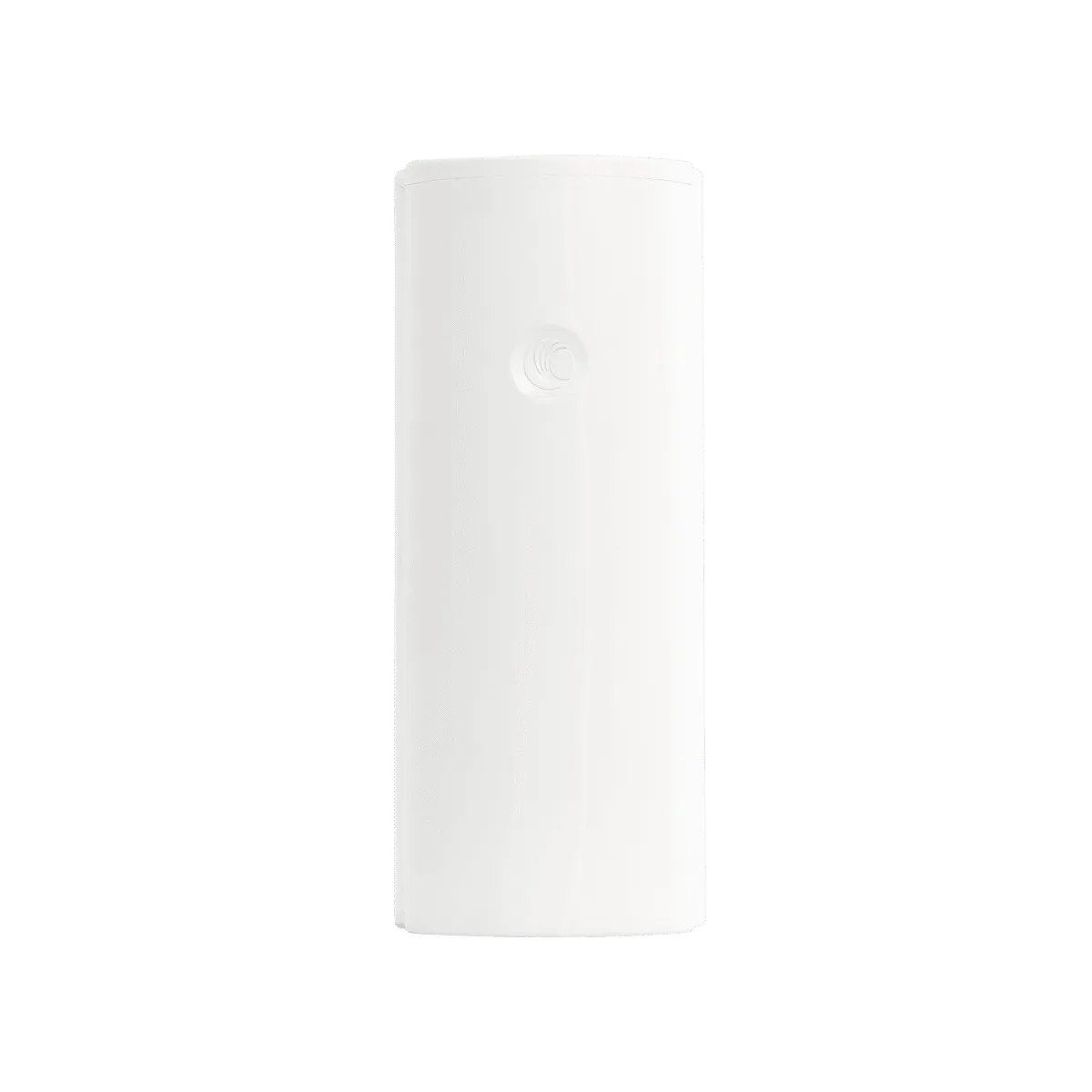

Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna (ePMP 3000 4×4 Antenna)

The Cambium Networks ePMP™ 3000 4×4 MU-MIMO Sector Antenna is a high-performance 5 GHz antenna designed to complement the ePMP 3000 Access Point. With 90-degree coverage and 4×4 MU-MIMO capability, it enables efficient multi-user communication and sector-level throughput optimization. Built for scalability and predictable performance, this antenna ensures consistent coverage, supports frequency re-use, and integrates seamlessly with Cambium’s LINKPlanner for precise network planning. Compact and installer-friendly, the ePMP 3000 Sector Antenna delivers reliable, high-capacity wireless coverage for dense and high-demand deployments.

Product Features

Multi-User MIMO Capability

Supports 4×4 MU-MIMO operation, allowing simultaneous communication with multiple subscriber modules to double sector capacity and improve spectral efficiency.

Frequency Reuse

Optimized for ABAB channel reuse with a minimum 30 dB front-to-back ratio, reducing interference and enabling high-density deployments.

Consistent Coverage

Null-fill capabilities provide broad geographical coverage, including near the base of towers and at the sector edges, ensuring uniform signal distribution.

Channel Flexibility

Maintains consistent gain across 4.9–6.0 GHz, allowing operators to select channels freely while achieving reliable performance.

Installer-Friendly Design

Compact form factor, integrated ePMP radio mount, and built-in GPS antenna simplify deployment and installation.

Predictable Performance

Fully integrated with Cambium Networks LINKPlanner, providing 3D coverage modeling across azimuth and elevation for accurate network planning.

Product Specifications

• Frequency Range: 4.9–5.97 GHz
• Gain: 17 dBi
• 3 dB Beamwidth (Azimuth): 70 degrees
• 3 dB Beamwidth (Elevation): 6 degrees
• Electrical Downtilt: -2 degrees
• Polarization: 2× Horizontal, 2× Vertical
