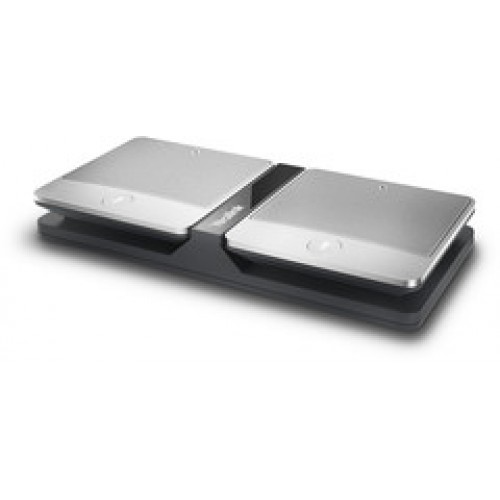

Yealink CPW90 Wireless Expansion Microphone for CP960

The Yealink CPW90 is a professional wireless expansion microphone designed to extend audio coverage for Yealink conference systems. Utilizing DECT technology, it ensures stable, interference-free connectivity up to 20 meters (65.6 feet) from the base station. Ideal for larger meeting rooms, the CPW90 delivers crystal-clear audio with full-duplex communication and 360-degree omnidirectional pickup.

Product Features

High-Quality Audio

Features Yealink Optima HD Voice and full-duplex technology, providing clear and natural sound during meetings. Acoustic echo cancellation ensures conversations remain intelligible in busy environments.

360-Degree Voice Pickup

Captures voices from all directions within a 3-meter (10-foot) radius, ensuring participants can be heard clearly without moving closer to the microphone.

Long Battery Life

Equipped with an 800mAh rechargeable battery, offering up to 19 hours of talk time and 11 days of standby. Quick placement on the charging cradle simplifies recharging.

User-Friendly Controls

Includes a capacitive mute touchpad with bicolor LED indicators for intuitive operation. LED signals show mute status, pairing, and connectivity information.

Flexible Charging

Comes with a “place-and-charge” cradle capable of charging two microphones simultaneously, making setup and storage efficient for conference rooms.

Wide Compatibility

Works seamlessly with Yealink CP960 and CP920 conference phones, MVC series video systems, MeetingBar A20/A30, VC500 (with DD10 USB dongle), and compatible UVC cameras like UVC80, UVC50, and UVC40/UVC84.

Easy Setup & Pairing

Supports automatic power-on when placed on the cradle. Manual pairing is simple via the conference device interface, and microphones can be turned off by long-pressing the mute button for 15 seconds.

Scalable Deployment

Multiple CPW90 microphones can be paired to expand coverage: up to 1 pair (2 mics) for CP960/CP920, up to 1 pair via DD10 dongle for MeetingBar systems, and up to 2 pairs (4 mics) for MVC series systems.

Product Specifications

• Audio Technology: Optima HD Voice, Full-Duplex, Echo Cancellation
• Pickup Range: 360° omnidirectional; 3-meter (10 ft) radius
• Wireless Technology: DECT (1880–1900 MHz Europe / 1920–1930 MHz US)
• Wireless Range: Up to 20 meters (65.6 ft) from base station
• Battery: 800mAh rechargeable; 19 hours talk time / 11 days standby
• Charging Time: Approx. 4 hours for full charge
• Interface: Capacitive mute touchpad with bicolor LED indicator
• Microphone Dimensions: 85.98 mm x 85.98 mm x 16.35 mm
• Charging Cradle Dimensions: 190 mm x 86 mm x 25.5 mm
• Operating Humidity: 10% to 90%
• Storage Temperature: -10°C to +40°C (+14°F to 104°F)
• Compatibility: CP960, CP920, MeetingBar A20/A30 (via DD10), VC500, UVC cameras, MVC systems
• Deployment: Supports 1–2 pairs depending on system; scalable for larger rooms
• LED Status Indicators: Solid Green – unmuted, Solid Red – muted, Fast Flashing Yellow – pairing mode, Slow Flashing Yellow – out of range
