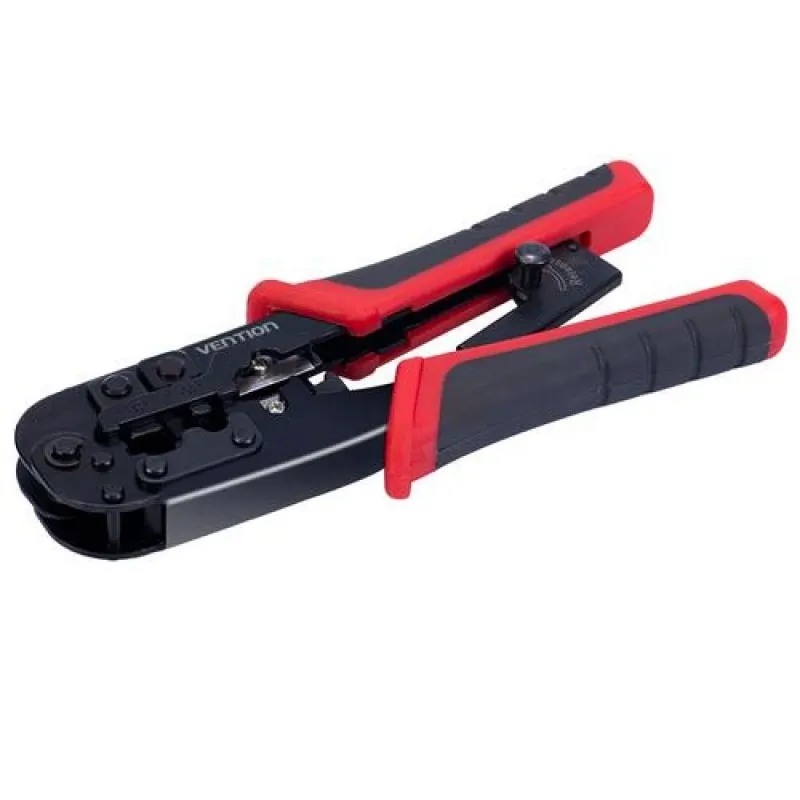

Vention Multi-Function Cable Crimping Tool (KEDB0)

The Vention Multi-Function Cable Crimping Tool (KEDB0) is a professional-grade networking tool designed for efficient cable preparation and termination. Built for IT technicians, installers, and DIY network setups, this all-in-one tool combines cutting, stripping, and crimping functions into a single durable device. Engineered with high carbon steel and precision-ground components, it delivers consistent performance for Ethernet and telephone cable installations, making it ideal for both professional and home networking projects.

Product Features

3-in-1 Multi-Function Design

The tool integrates cutting, stripping, and crimping capabilities in one compact unit. This eliminates the need for multiple tools and improves efficiency during cable installation and maintenance tasks.

Wide Compatibility with Network Connectors

Designed to support multiple connector types, the crimping tool works with 8P8C (RJ45), 6P6C and 6P4C (RJ12/RJ11), as well as 4P connectors. This makes it suitable for Ethernet cables and telephone line installations.

High-Strength Steel Construction

Constructed from high carbon steel or chrome vanadium steel, the tool offers long-lasting durability and resistance to wear. It is built to handle repeated use in demanding environments without compromising performance.

Precision Cutting and Stripping Performance

Equipped with hardened blades, the tool ensures clean and accurate cuts without damaging internal conductors. Dual stripping ports support both round and flat cables, improving versatility during cable preparation.

Ergonomic Non-Slip Handle Design

The handle features an ergonomic grip made from TPR or PVC materials, reducing hand fatigue during extended use. The anti-slip design ensures better control and safety when applying pressure.

Ratchet Mechanism for Consistent Crimping

Select variants include a progressive ratchet system that ensures full compression before release. This guarantees uniform pin contact and reliable cable terminations.

Adjustable Tension and Safety Features

An adjustable tension screw allows users to fine-tune crimping force over time. Built-in blade guards help protect users from accidental cuts during operation.

Product Specifications

• Product Name: Vention Multi-Function Cable Crimping Tool
• Model Code: KEDB0
• Functionality: Cutting, stripping, and crimping tool
• Compatible Connectors: 8P8C (RJ45), 6P6C / 6P4C (RJ12/RJ11), 4P4C / 4P2C
• Cable Compatibility: Cat5, Cat5e, Cat6, Cat6a (solid and stranded)
• Supported Wire Gauge: 22–26 AWG
• Body Material: High carbon steel or chrome vanadium steel
• Handle Material: TPR (thermoplastic rubber) or PVC
• Length: Approximately 200–220 mm
• Weight: Approximately 280–320 g
• Stripping Capability: Round cables (4–10 mm) and flat cables
• Cutting Type: Precision bypass cutting blades
• Mechanism: Manual with optional ratchet system
• Adjustable Tension: Yes (via screw mechanism)
• Safety Features: Blade guards and anti-slip handles
